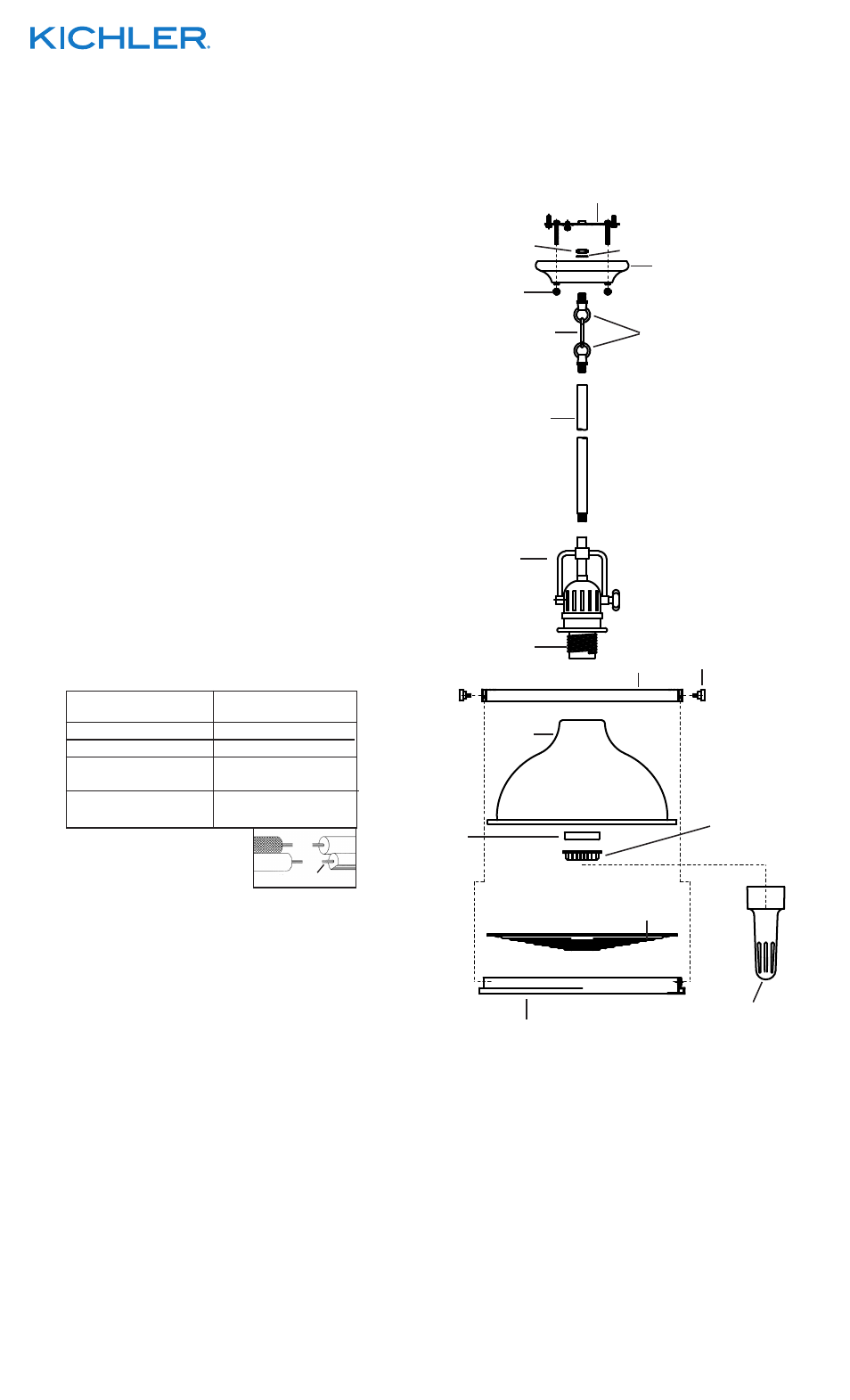

1) Pass fixture wire from top of fixture body through end of

stem. Thread end of stem onto fixture body.

NOTE: Thread locking compound must be applied to all

stem threads as noted with symbol (3) to prevent accidental

rotation of fixture during cleaning, relamping, etc.

2) Pass fixture wire through remaining stems and screw stems
together.
3) Thread one small threaded pipe into end of each small loop.
4) Pass fixture wire through first loop. Thread first loop onto

end of last stem.

5) Pass fixture wire through second loop and through hole in
canopy.
6) Pass threaded pipe at end of second loop through hole in
canopy.
7) Pass fixture wire through hole in lockwasher. Thread

lockwasher onto end of threaded pipe protruding from

inside canopy.

8) Pass fixture wire through hole in hexnut. Thread hexnut onto

end of threaded pipe.

9) Attach chain link to small loop at end of stem and to loop on
canopy.
10) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

11) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

12) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

13) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

14) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

15) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

16) Lower top ring down over top of glass. Set top ring down on

edge of glass.

17) Raise glass with ring up to fixture. Pass hole in glass over
socket.
18) Slip spacer over socket.
19) Attach socket ring to socket ring tool.
20) Raise socket ring tool with socket ring attached up to fixture.

Pass socket ring tool with socket ring attached through hole

in glass. Thread socket ring onto socket. Tighten socket ring

to secure glass in place. (DO NOT over tighten.)

21) Insert recommended bulb.
22) Set lens down into bottom ring.
23) Raise bottom ring with lens up to fixture. Fit top edge of

bottom ring inside top ring. Align holes along side of

bottom ring with holes along side of top ring.

24) Thread thumbscrews into holes along side of top ring and

into holes in side of bottom ring. Carefully tighten thumbscrews

to secure lens in place.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 11/7/14

IS-43765-CB
