1) Lower bar with socket cluster down through top of outer shade.
2) Place outer shade with bar over inner shade.
3) Align holes at each end of bar with holes in each bracket on inside of inner shade.
4) Thread screws down through each hole in bar and into holes in brackets. Tighten

screws to secure inner shade in place.

5) Insert recommended bulbs.
6) Screw threaded pipe into hole in bottom of socket cluster.
7) Thread one hexnut onto end of threaded pipe.
8) Slip one flat washer then one rubber washer over end of threaded pipe.
9) Raise diffuser up to fixture. Pass hole in diffuser over end of threaded pipe.
10) Slip one rubber washer then one flat washer over end of threaded pipe. Thread hexnut

onto end of threaded pipe

11) Thread finial onto end of threaded pipe. Tighten finial to secure diffuser in place.

(DO NOT over tighten.)

12) Determine the amount of stems necessary to achieve desired height of fixture.

CAUTION: At least one 6" stem must be used.

13) Pass fixture wire from coupling on bar through stem and screw stem to coupling

on top of bar. NOTE: Thread locking compound must be applied to all stem

threads as noted with symbol (3) to prevent accidental rotation of fixture during

cleaning, relamping, etc.

14) Pass fixture wire through remaining stems and screw remaining stems together.
15) After desired number of stems are assembled to fixture, shorten the cables just

until taut. Refer to Cable Length Adjustment Instructions below.

NOTE: Fixture may be hung with or without loops and chain link.

With loops and chain link:
16) Thread one small threaded pipe into end of each small loop.
17) Pass fixture wire from last stem up through threaded pipe in end of one small

loop. Thread that small loop onto the end of stem.

18) Attach chain link to small loop at end of last stem.
19) Attach second small loop to end of chain link.
20) Pass fixture wire through hole in second small loop.
21) Pass fixture wire from second small loop through hole in canopy. Lower

canopy down over stem. Pass hole in canopy over threaded pipe at end of

second small loop.

22) Pass fixture wire through hole in lockwasher. Thread lockwasher onto threaded

pipe protruding from inside of canopy. Pass fixture wire through hole in

hexnut. Thread hexnut onto threaded pipe.

FOLLOW STEPS 23-28 TO COMPLETE INSTALLATION.

Without loops and chain link:
16) Pass fixture wire from end of last stem through one small threaded pipe.

Thread small threaded pipe into end of last stem.

17) Pass fixture wire through hole in canopy. Lower canopy down and pass

hole in canopy over end of threaded pipe on stem.

18) Pass fixture wire through hole in lockwasher. Thread lockwasher onto threaded

pipe protruding from inside of canopy. Pass fixture wire through hole in

hexnut. Thread hexnut onto threaded pipe.

FOLLOW STEPS 23-28 TO COMPLETE INSTALLATION.

23) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work without shutting off the

electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your home. Place the main

power switch in the “OFF” position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker switch(s), that

control the power to the fixture or room that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture to be replaced

has a switch or pull chain, place those in the “OFF” position.

24) Find the appropriate threaded holes on mounting strap. Assemble mounting

screws into threaded holes.

25) Attach mounting strap to outlet box. (Screws not provided). Mounting strap can be

adjusted to suit position of fixture.

26) Make wire connections (connectors not provided.) Reference chart below for

correct connections and wire accordingly.

27) Push fixture to ceiling, carefully passing mounting screws through holes in

canopy.
28) Thread knurl knobs onto mounting screws. Tighten knurl knobs to secure fixture

to ceiling.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 8/1/14

IS-43347-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

SEE OTHER SIDE FOR CANADIAN FRENCH TRANSLATIONS.

VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRADUCTIONS EN

FRANÇAIS.

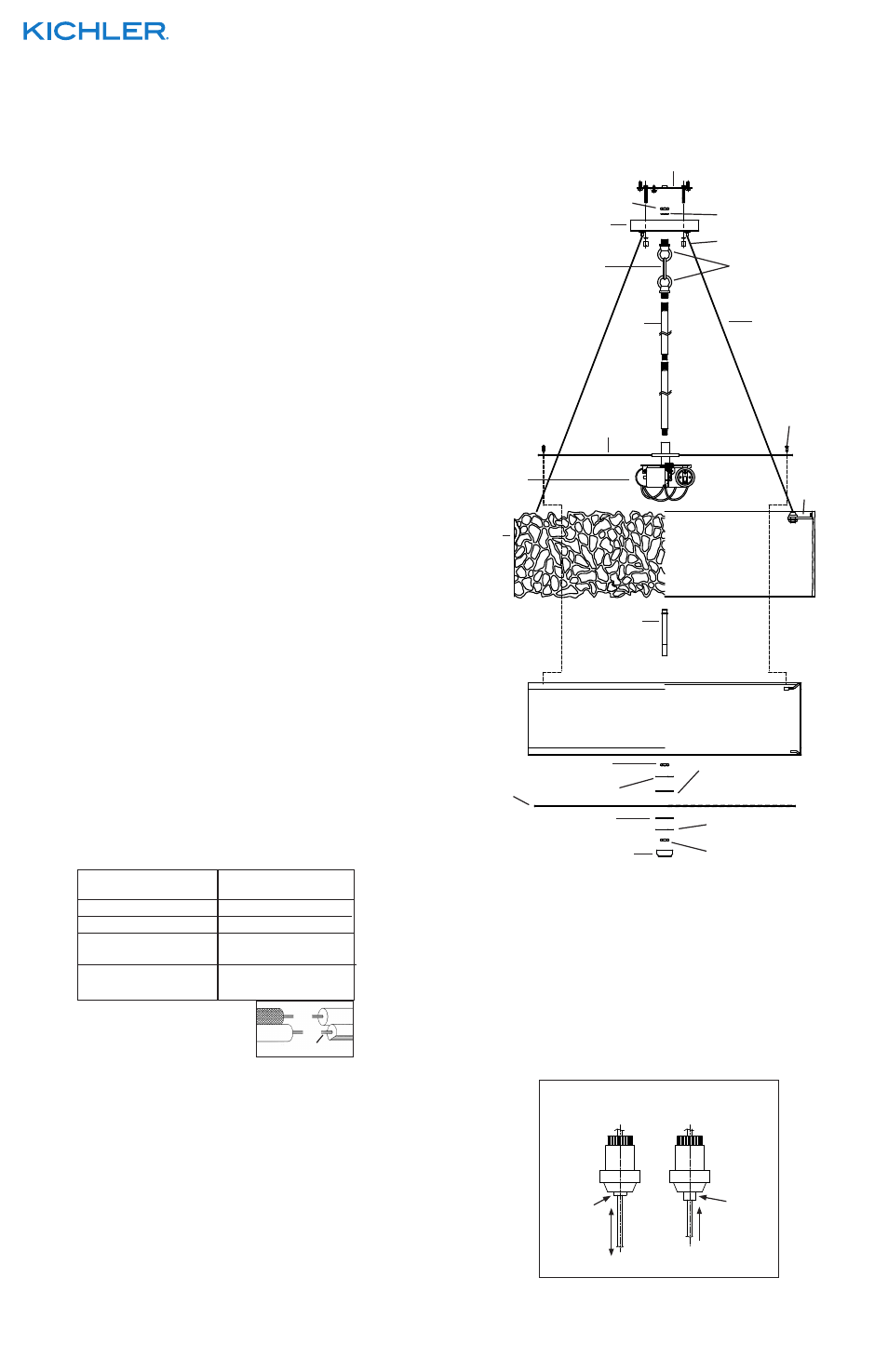

MOUNTING STRAP

PATTE DE FIXATION

CANOPY

CACHE

KNURL KNOB

BOUTON MOLETÉ

FINIAL

ORNEMENT

HEXNUT

ECROU HEXAGONAL

RUBBER WASHER

RONDELLE EN

CAOUTCHOUC

THREADED PIPE

TUBE FILETE

FLAT WASHER

RONDELLE PLATE

HEXNUT

ECROU HEXAGONAL

OUTER SHADE

CACHE

EXTÉRIEUR

CABLE

CÂBLE

LOCKWASHER

RONDELLE DE BLOCAGE

BAR

BARRE

INNER SHADE

CACHE INTERNE

LOOP

ANNEAU

STEM

TIGE

PRESSED

CABLE ADJUSMENT DETAIL

DÉTAILS D’AJUSTEMENT DU CÂBLE

NOT

PRESSED

UP & DOWN

UP ONLY

DIFFUSER

DIFUSOR
