SHEET 18 OF 20

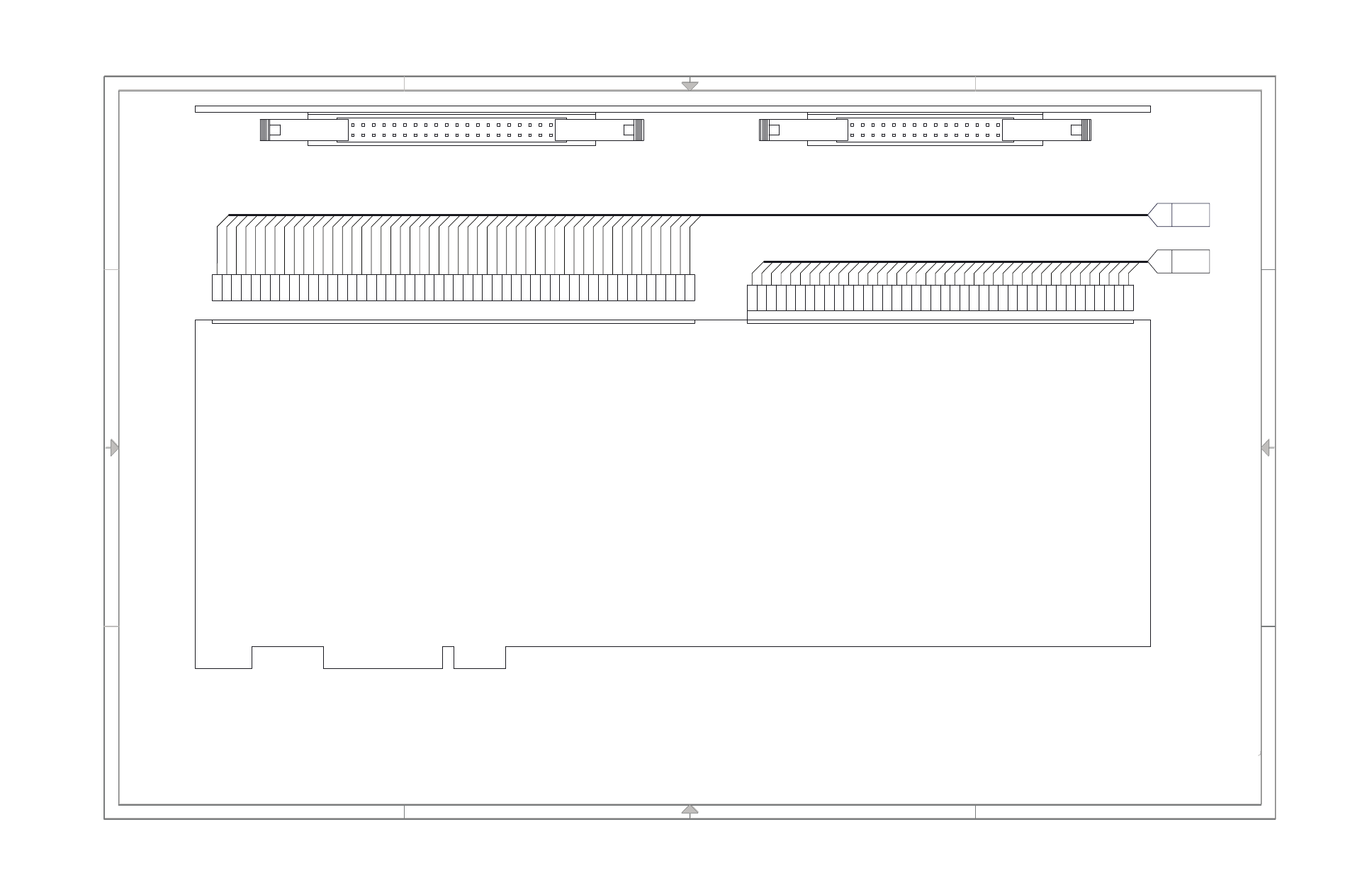

PICOPATH 2-AXIS MCC PCB
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
35 36 37 38 39 40
J2
25 NC 26 LOGIC GND
27 LOGIC GND
28 ANALOG COM
29 AXIS 1 ANALOG
30 AXIS 2 ANALOG
31 NC 32 NC 33 NC 34 NC
24 NC
23 NC
22 NC
21 NC
20 NC
19 NC
18 NC
17 NC
16 NC
15 NC
1 AXIS 1 ENABLE
2 AXIS 2 ENABLE
3 NC 4 NC
14 NC
13 AXIS 2Z CH
12 AXIS 2B CH
11 AXIS 2A CH
10 AXIS 1Z CH
9 AXIS 1B CH
8 AXIS 1A CH
7 /WDOG ENABLE
5 NC 6 NC
35 LOGIC GND
36 +5V LOGIC
40 LOGIC GND
39 -12V LOGIC
38 +12V LOGIC
37 +5V LOGIC
223231 CABLE (2 AXIS DRV/ENC)
223232 CABLE (I/O 1-24)
50 GROUND
49 GROUND
48 OUTPUT 24
47 INPUT 24
37 INPUT 19
38 OUTPUT 19
39 INPUT 20
40 OUTPUT 20
41 INPUT 21
42 OUTPUT 21
43 INPUT 22
44 OUTPUT 22
45 INPUT 23
46 OUTPUT 23
36 OUTPUT 18
35 INPUT 18
6 OUTPUT 3
5 INPUT 3
7 INPUT 4
8 OUTPUT 4
9 INPUT 5
10 OUTPUT 5
11 INPUT 6
12 OUTPUT 6
13 INPUT 7
14 OUTPUT 7
4 OUTPUT 2
3 INPUT 2
2 OUTPUT 1
1 INPUT 1
15 INPUT 8
16 OUTPUT 8
17 INPUT 9
18 OUTPUT 9
19 INPUT 10
20 OUTPUT 10
21 INPUT 11
22 OUTPUT 11
23 INPUT 12
24 OUTPUT 12
34 OUTPUT 17
33 INPUT 17
32 OUTPUT 16
31 INPUT 16
30 OUTPUT 15
29 INPUT 15
28 OUTPUT 14
27 INPUT 14
26 OUTPUT 13
25 INPUT 13
PCB12
PICOPATH 2-AXIS MCC PCB
141256
J1
J1 I/O 1-24
J2 DRIVE/ENCODER
N
O
17-D4
17-D2
