6-13
SHEET
1 2 3 4
4 3 2 1
A
B
C
D D
C
B
A
J5
J1 J2 J3 J4
NOT USED
Ground 1
THC1_Nozzle_Contact_Sense+ 2
THC1_Nozzle_Contact_Sense- 3
THC1_Nozzle_Contact_Enable_A 4
THC1_Nozzle_Contact_Enable_B 5
THC1_Arc_Volts+ 6
THC1_Arc_Volts- 7
THC1_Hold_Ignition_A 8
THC1_Hold_Ignition_B 9
THC2_Nozzle_Contact_Sense+ 10
THC2_Nozzle_Contact_Sense- 11
THC2_Nozzle_Contact_Enable_A 12
THC2_Nozzle_Contact_Enable_B 13
THC2_Arc_Volts+ 14
THC2_Arc_Volts- 15
THC2_Hold_Ignition_A 16
THC2_Hold_Ignition_B 17
10V_Reference 18
Joystick_UP 19
Joystick_DOWN 20
Joystick_LEFT 21
Joystick_RIGHT 22
Speed_Pot1+ 23
Speed_Pot1- 24
Speed_Pot2+ 25
Speed_Pot2- 26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
10-C3
223234
PCB4

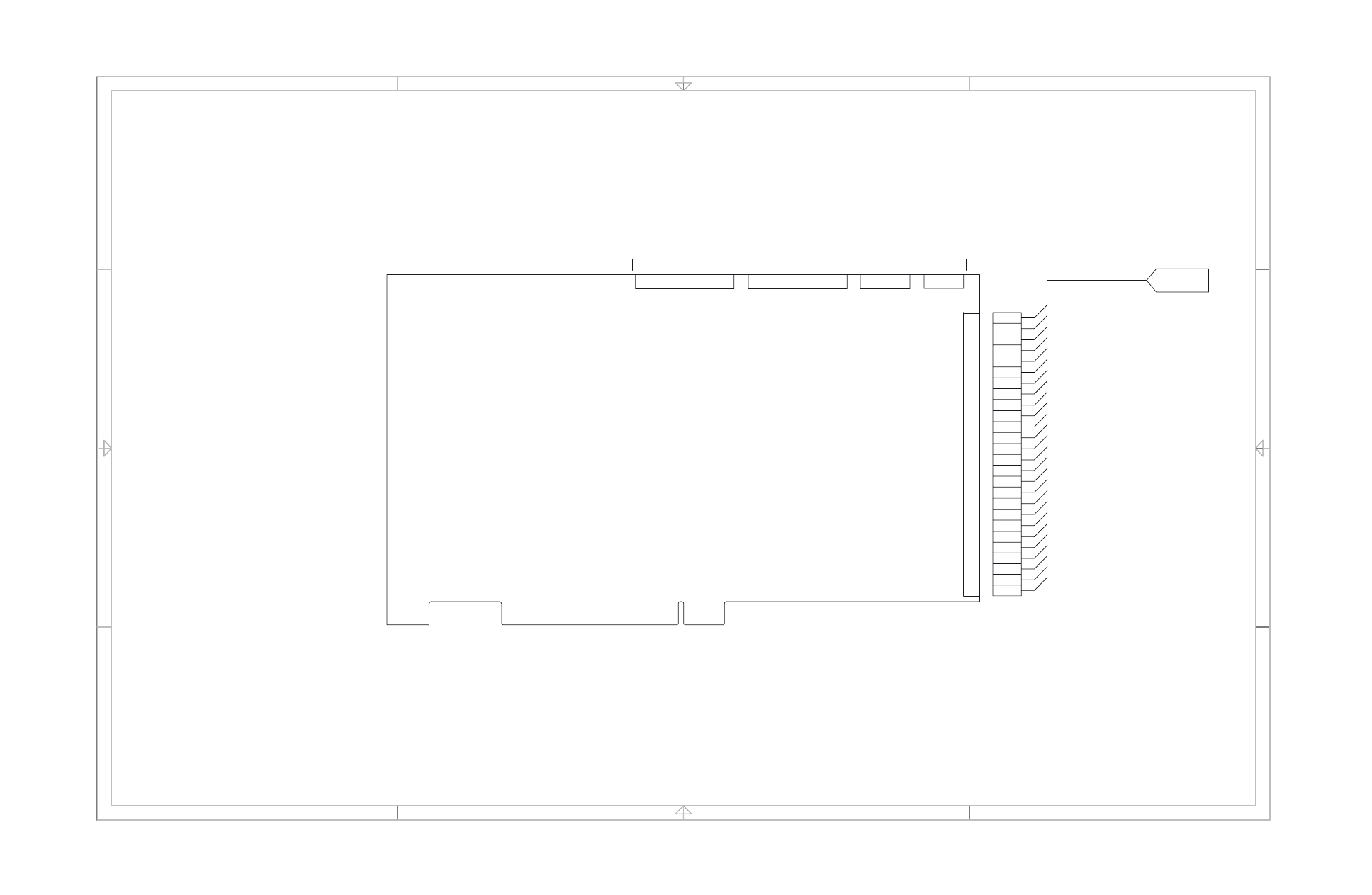

ANALOG-THC PCB
141125
J
SHEET 9 OF 20
ANALOG THC PCB
