Installing the Rangetop, cont.

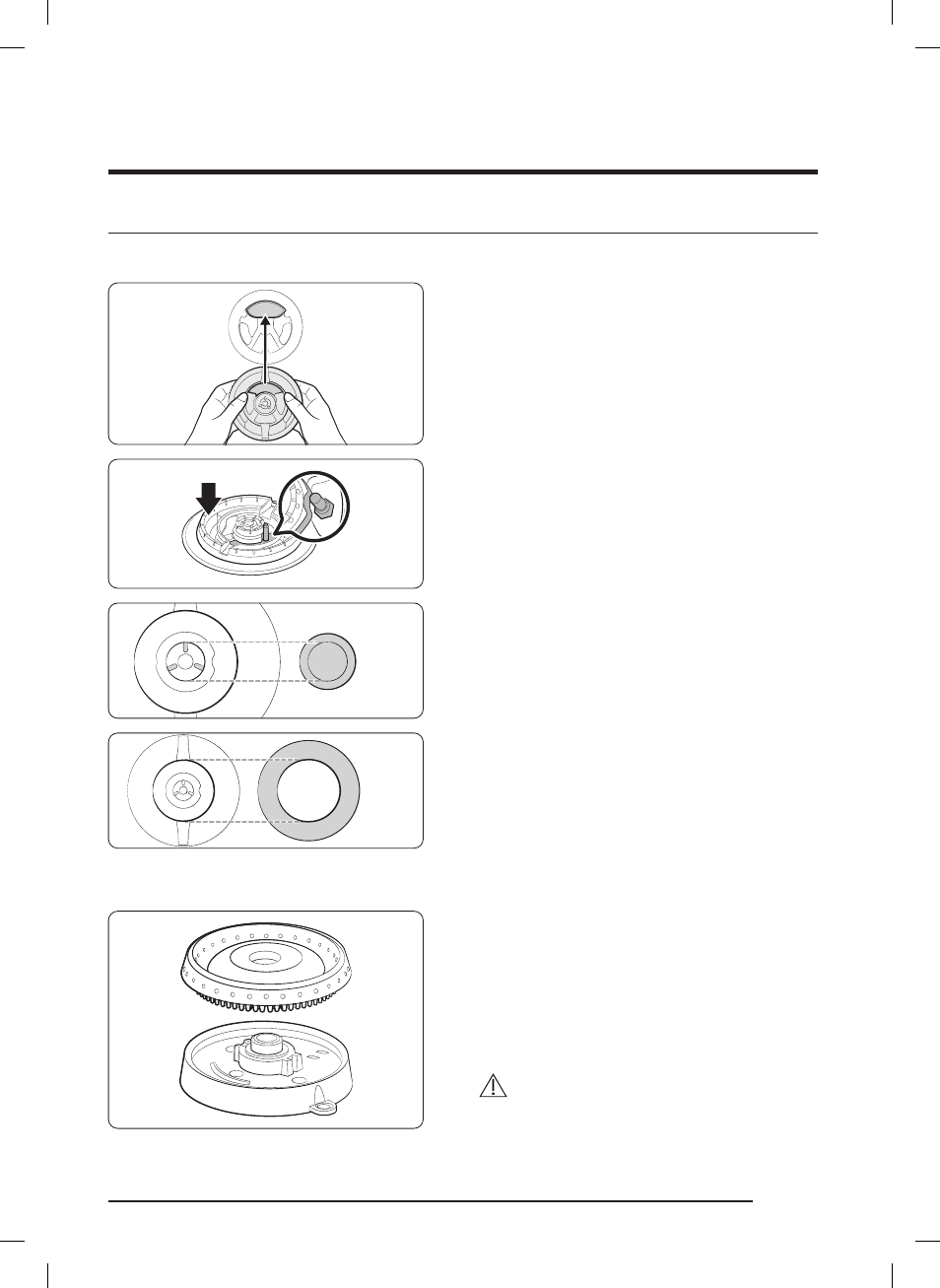

Dual Burner Heads/Caps
1. Orient the burner head so the opening for the
electrode aligns with the electrode.
2. Install the burner head so the electrode passes
through its opening in the head. Ensure the
burner head lies flat on the stove top.
3. Size the burner caps to the burners, then install
the caps on the heads.
Round Burner Head/Caps
1. Put the burner heads on the burner bases. The
bottom of the head fits within the burner base.
2. Twist the head until it drops into place. Twist
the head back and forth to verify it is properly
seated.
3. Put the burner caps (brass or porcelain) on the
burner heads. The ridge around the bottom edge
of the cap fits around the top of the burner head.
CAUTION
Burner heads and caps must rest flat on the heads.
