Installation Requirements
English 20
Countertop Cutout Dimensions, cont.

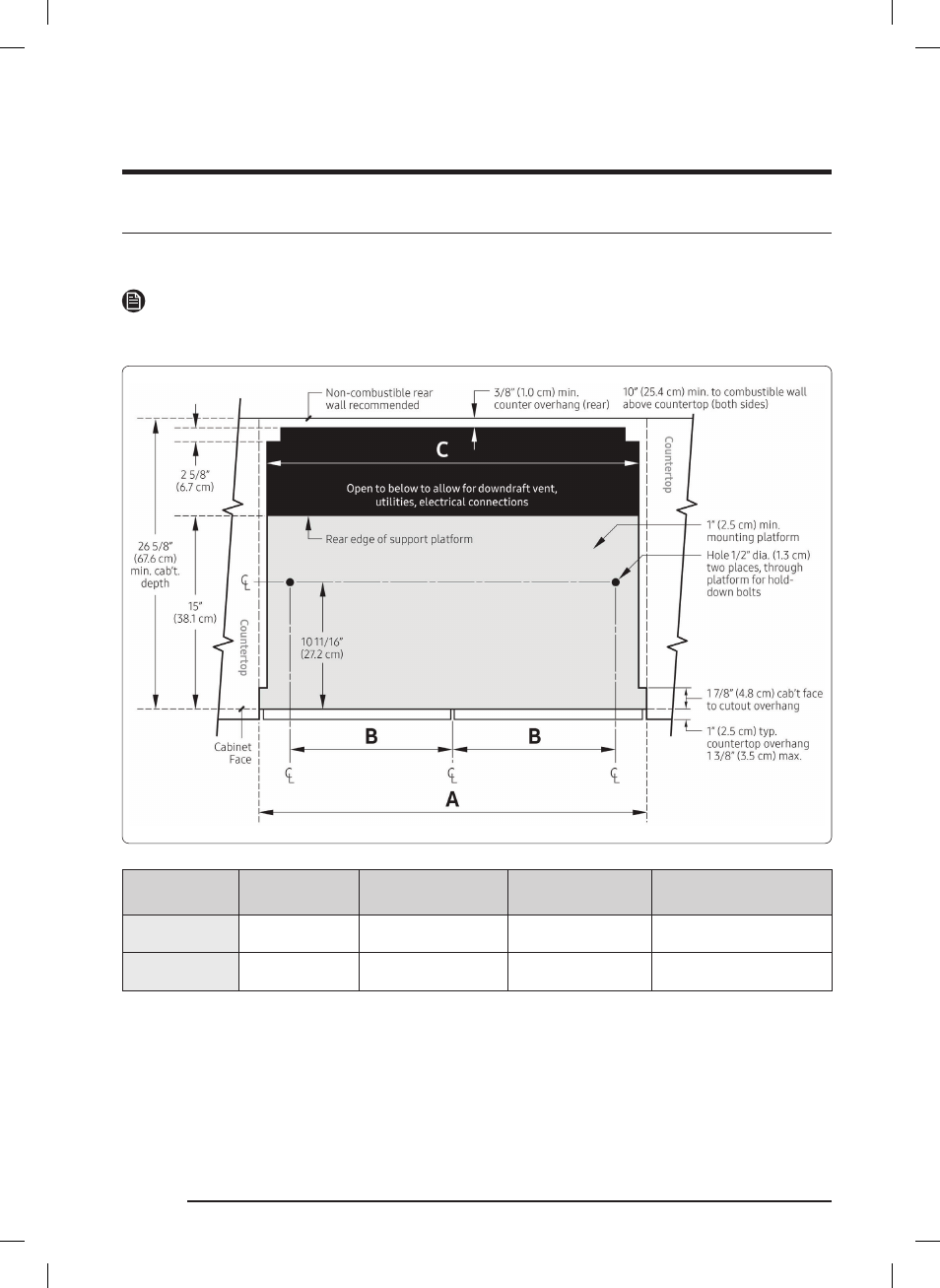

Cabinet/Countertop Cutout Dimensions-With Downdraft Vent (top view)
NOTE
Gas and electrical connections must be routed through the bottom of the rangetop when installed with a
downdraft vent.
Model A: Cutout Width B: Hole Offset
C: Downdraft Vent
Cutout
Approved Downdraft
Vent Models*
DTT36T960 36" (91.4 cm) 16 5/8" (42.2 cm) 33 1/2" (85.1 cm) MRV3615M/S
DTT48T960 48" (121.9 cm) 20 13/16" (52.9 cm) 43 1/2" (110.5 cm) MRV48M/S
* IMPORTANT : Use only the downdraft vent models specified.
