English 21

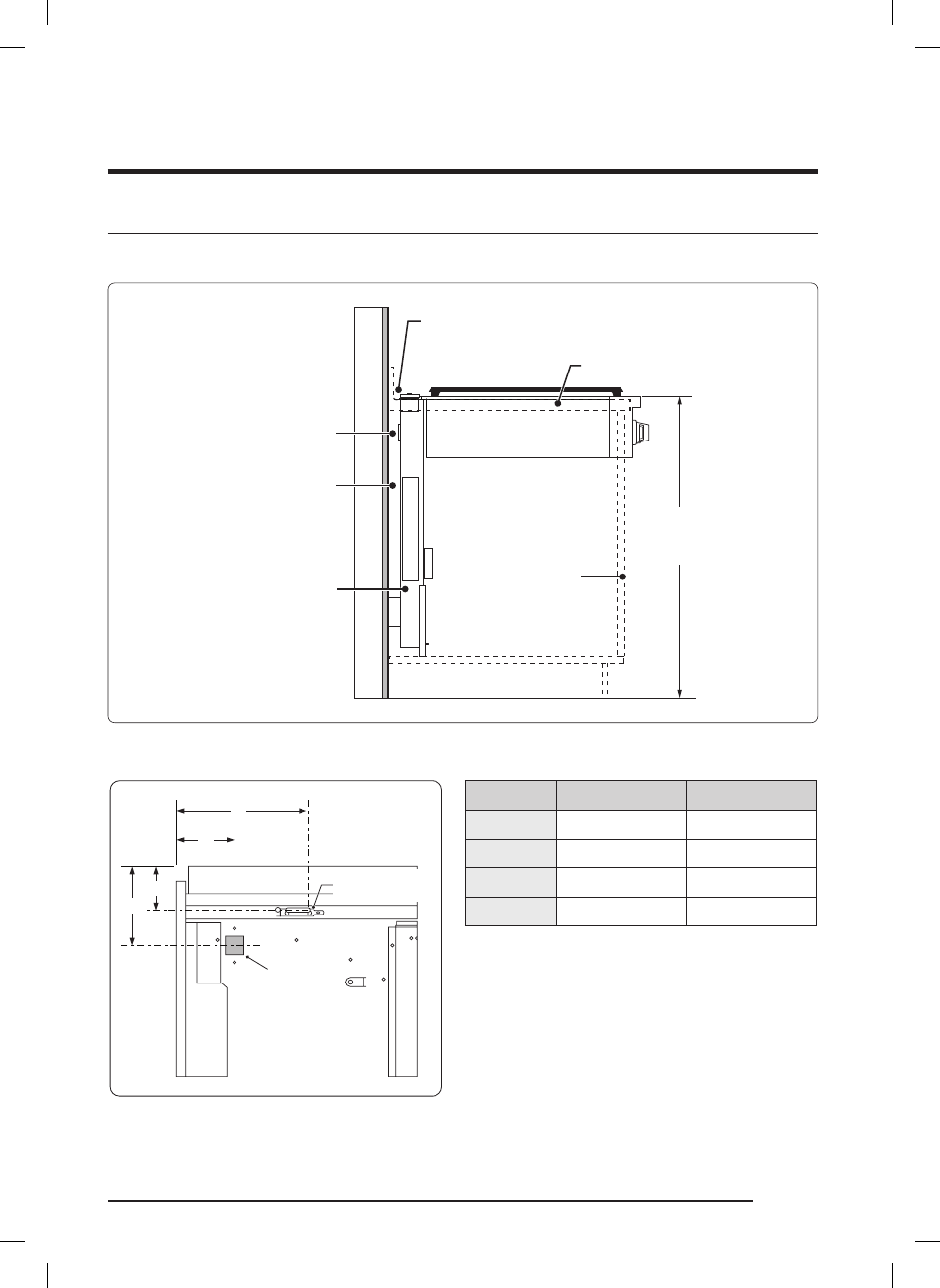

Countertop Cutout Dimensions, cont.
Cabinet/Countertop-With Downdraft Vent (side view)
Minimum
countertop height:
30 1/4" (76.8 cm)
DTT36T960 or DTT48T960
rangetop
Countertop
3/8” min. (1.0 cm) flat
countertop overhang required
behind cutout
Cabinet face
Stiffener
3/8” min. (1.0 cm) space
behind downdraft vent
chassis to clear stiffener
MRV Contemporary
downdraft vent IMPORTANT: See downdraft
installation instructions for
duct system layout/planning
Utility Locations and Dimensions (rear)
F
D
G
E
Power cord 39 3 /
8
”
(100.0 cm) long
15 /
16
”-16UNF
male gas inlet
Dimension DTT36T960 DTT48T960
D 3 1/2" (8.9 cm) 4" (10.1 cm)
E 4 11/16 (11.9 cm) 4 11/16 (11.9 cm)
F 5 1/8" (13 cm) 19 3/4" (50.1cm)
G 2 11/16" (6.9 cm) 2 11/16" (6.9 cm)
