English 19

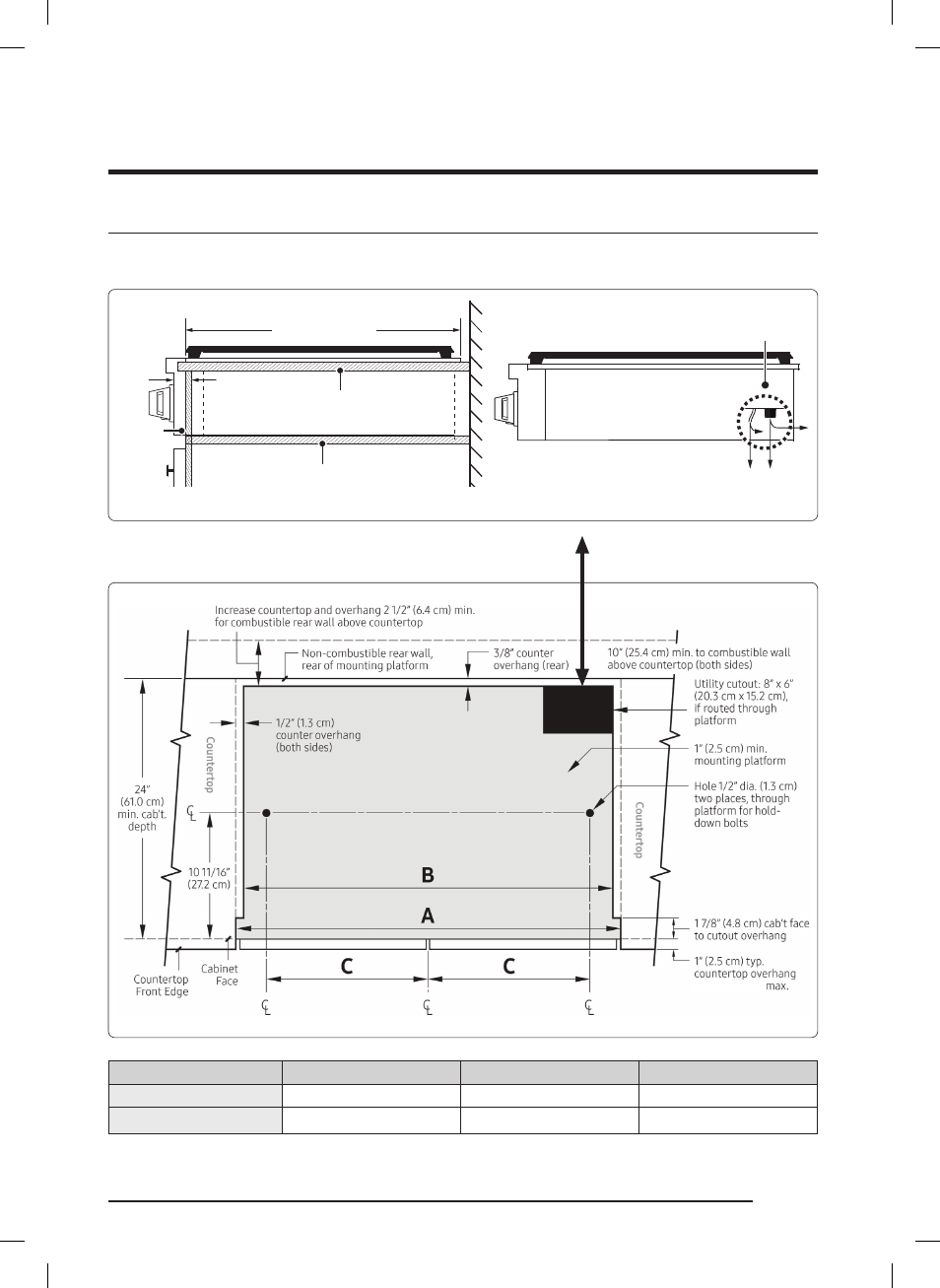

Countertop Cutout Dimensions, cont.
Installed Rangetop (side view)
Gas connection and power cord may be
routed through bottom or back of chassis
Gas and electrical connections at
right rear section of chassis
24” (61.0 cm)
Cabinet
face
Countertop
Mounting platform
Installed control
panel overhang
1 3/4" (4.3cm)
Cabinet/Countertop Cutout Dimensions—No Downdraft Vent (top view)
1 3/4" (4.3cm)
Rangetop Model A B C
DTT36T960 36” (91.4 cm) 35” (88.9 cm) 16 5/8” (42.2 cm)
DTT48T960 48” (121.9 cm) 47” (119.4 cm) 20 13/16” (52.9 cm)
