Cleaning and Care

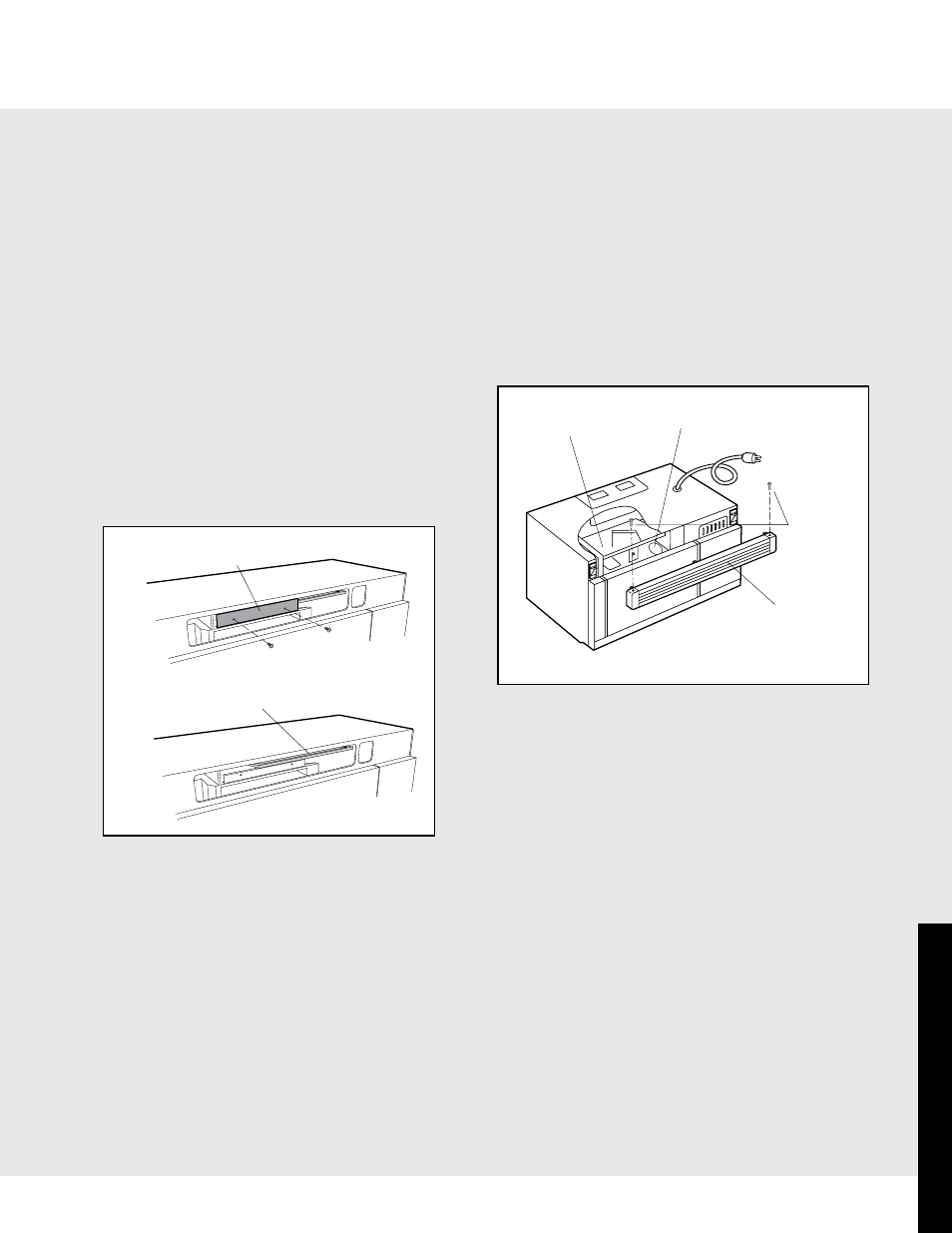

CHARCOAL FILTER
Charcoal Filter is used for Non-vented, recirculated
installation. The filter should be changed every 6 to 12
months depending on use.
1. Disconnect power to the oven at the circuit breaker panel
or by unplugging.
2. Remove 2 screws that secure louver.
3. Remove louver by gently moving louver and pull away
from unit.
4. Remove 2 screws that secure the sensor duct cover.
5. Remove the sensor duct cover.
6. Remove old charcoal filter (if one is installed).
7. Slide new charcoal filter into position on the support
tabs.
8. Reattach sensor duct cover and secure with 2 screws.
9. Push louver back into place and replace the 2 screws
to secure louver.
Sensor duct cover
Charcoal filter
MICROWAVE OVEN LIGHT
Remove the louver per instructions 1-3 on CHARCOAL
FILTER section and charcoal filter, if used.
4. Slide the light cover forward and lift up.
5. Remove old light bulb and replace only with a 20 watt
bulb available at most hardware stores or lighting
centers. DO NOT USE A BULB LARGER THAN 30
WATTS.
6. Replace the microwave oven light cover and charcoal
filter, if used; push louver back in place and replace the
louver mounting screws.
Louver
Oven light
Charcoal filter
Screw
