MICROWAVE OVEN PARTS
Part Names
1. Oven door with see-through window.
2. Door hinges.
3. Waveguide cover
DO NOT REMOVE.
4. Turntable motor shaft.
5. Oven light.
It will light when oven is
operating or door is open.
6. Safety door latches.
The oven will not operate unless
the door is securely closed.
7. One touch DOOR OPEN button.
Push to open door.
8. Fan Hi / Lo button. Push for high/low/off.
9. Light button. Push for on/off.
10. Auto-Touch control panel.
11. Time display: Digital display,
99 minutes 99 seconds.
12. Ventilation openings.
13. Serial plate
14. Light cover.
15. Grease filters.
16. Removable ceramic turntable.
The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
17. Removable turntable support.
Place the turntable support on the
floor of the oven cavity and the
turntable on the turntable support.
18. Removable low rack for broiling and
meat and poultry roasting.
19. Removable high rack for two level baking.

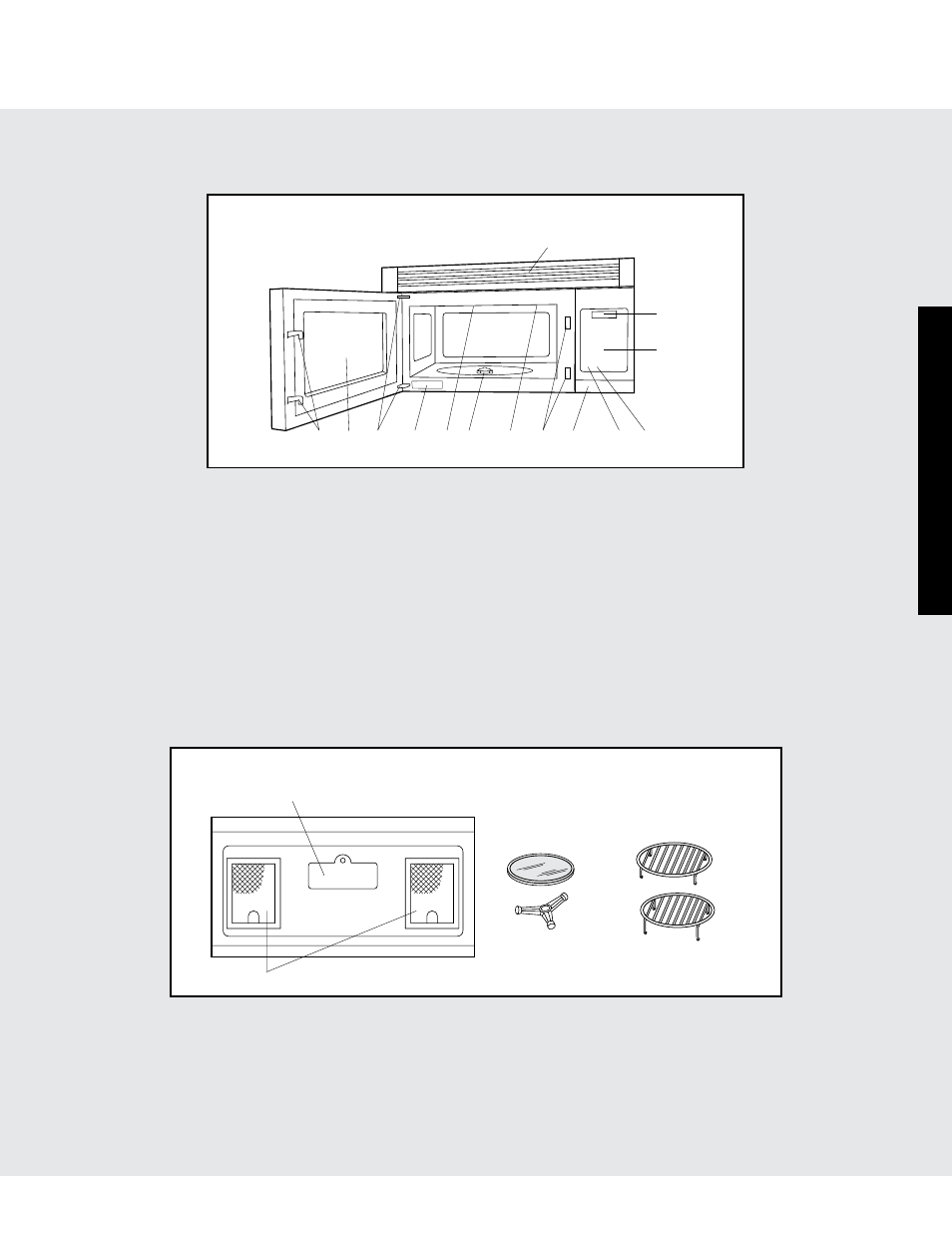

FRONT VIEW
3
2
1
4
6
5
6
7
8
9
10
11
12
13
BOTTOM VIEW
14
15
(Rear of Microwave)
(Front of Microwave)
16
17
18
19
