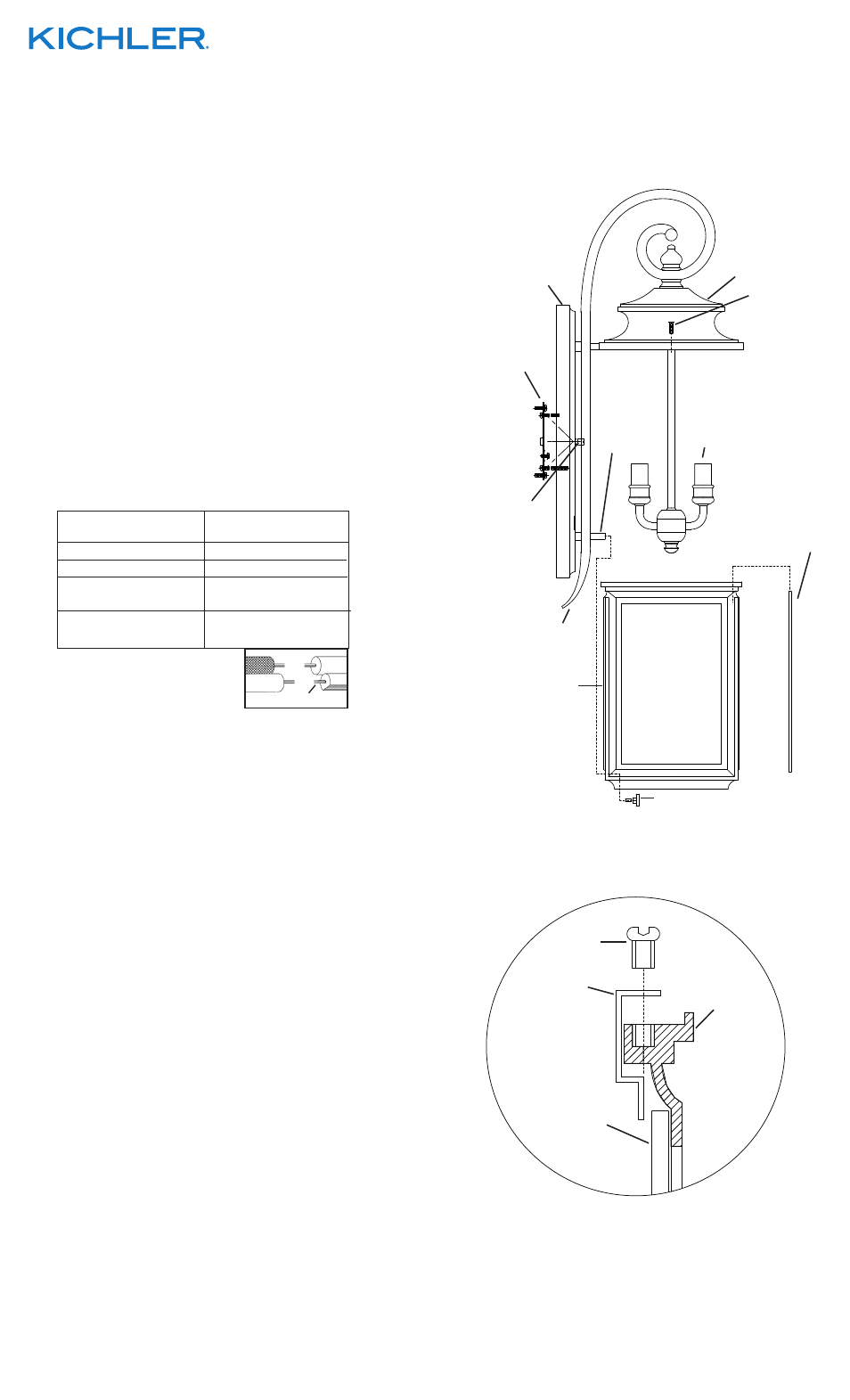

1) To install glass panels: From top of cage, lower glass panel

down inside fixture. Fit bottom edge of glass into channel

along bottom inside of cage. Press glass panel up against

inside of cage. Place bracket inside cage. Align hole in step

of bracket with hole in top edge of cage above glass panel.

Thread screw down through hole in bracket and into hole in

cage. Keep bottom step of bracket gently pressed against

glass panel. (See FIG. 2 for glass panel installation detail.)

Repeat these steps for remaining glass panels.

2) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

3) Find the appropriate threaded holes on mounting

strap. Assemble mounting screws into threaded holes.
4) Attach mounting strap to outlet box. (Screws not provided).
Mounting strap can be adjusted to suit position of fixture.
5) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.

6) Push fixture to wall, carefully passing mounting screws
through holes in fixture.
7) Thread threaded balls onto mounting screws. Tighten
threaded balls to secure fixture to wall.
8) Insert recommended bulb.
9) Raise cage up to fixture. Pass opening in top of cage over
sockets.
10) Fit top of cage inside roof of fixture.
11) Thread screws down through roof of fixture and into cage.
12) From bottom inside of cage, screw thumbscrew into hole in
back of cage and into hole on short stem on bottom of arm.
Tighten thumbscrew to secure cage to fixture.

INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS AND/
OR IN WET LOCATIONS.
13) Mounting surface should be clean, dry, flat and 1/4” larger

that the canopy on all sides. Any gaps between the mounting

surface and canopy exceeding 3/16” should be corrected

as required.

14) With silicone caulking compound, caulk completely around

where back of canopy meets the wall surface to prevent

water from seeping into outlet box.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 10/25/13

IS-49502-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada

THREADED BALL

BOULE FILETE

MOUNTING STRAP

COLLLIER DE FIXATION

FIXTURE

LUMINAIRE
