Kichler 43373 - Manuel

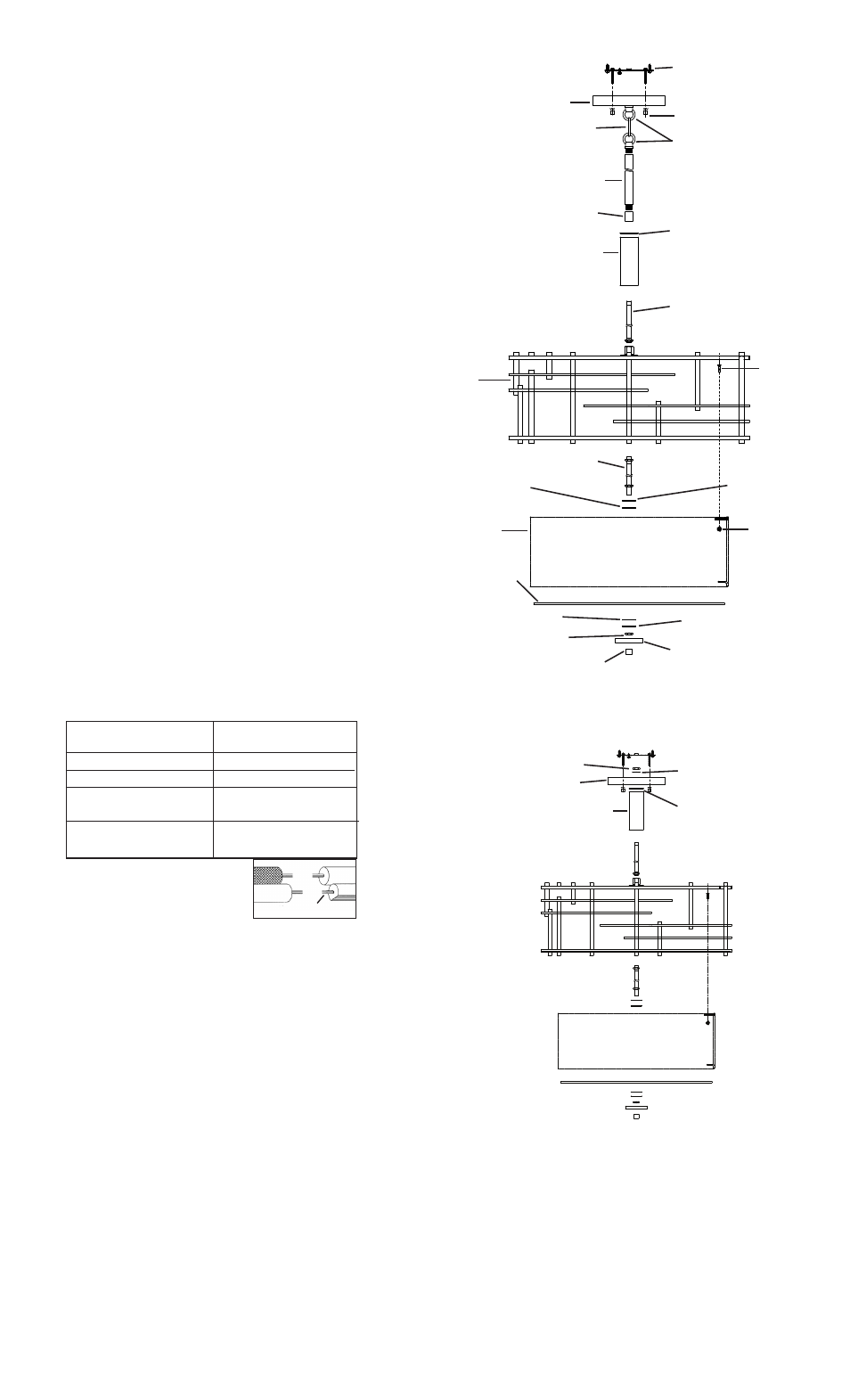

STEM DROP INSTALLATON
1) Pass fixture wire through long threaded pipe.
2) Screw end of long threaded pipe with hexnut into coupling
on top of fixture body.
3) Pass fixture wire through tube. Lower tube down over
threaded pipe.
4) Pass fixture wire through hole in check ring. Pass hole in
check ring over end of threaded pipe. Set check ring on top
of tube.
5) Pass fixture wire through coupling. Screw coupling onto end
of threaded pipe.
6) Pass wire through stem and screw stem to coupling on top
of fixture body. NOTE: Thread locking compound must be
applied to all stem threads as noted with symbol (3) to prevent
accidental rotation of fixture during cleaning, relamping, etc.
7) Pass wire through remaining stems and screw stems
together.
8) Thread one small threaded pipe into end of each small loop.
9) Attach small loop to end of last stem.
10) Pass threaded pipe at end of second small loop through
hole in canopy.
11) Slip lockwasher over threaded pipe protruding from inside of
canopy and screw hexnut onto threaded pipe.
12) Attach chain link to small loop at end of stem and to loop on
canopy.
13) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work
without shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your
home. Place the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker
switch(s), that control the power to the fixture or room that
you are working on.
c) Place the wall switch in the “OFF” position. If the fixture
to be replaced has a switch or pull chain, place those in
the “OFF” position.
14) Find the appropriate threaded holes on mounting strap. Assemble
mounting screws into threaded holes.
15) Attach mounting strap to outlet box. (Screws not provided)
Mounting strap can be adjusted to suit position of fixture.
16) Make wire connections (connectors not provided.) Reference
chart below for correct connections and wire accordingly.
17) Push fixture to ceiling, carefully passing mounting screws
through holes in canopy.
18) Thread threaded balls onto mounting screws. Tighten
threaded balls to secure fixture to ceiling.
20) Insert recommended bulbs.
21) Screw short end of threaded pipe with hexnut into bottom of
fixture body.
22) Thread hexnut onto other end of threaded pipe.
23) Slip flat washer then rubber washer over end of threaded pipe.
24) Raise shade up to fixture. Fit shade inside cage on fixture.
Align holes in bracket on shade with holes in bracket on
inside of cage.
25) Thread screws down from holes in bracket on cage and
down into holes in bracket on shade.
26) From inside shade, thread ball knobs onto ends of screws.
Tighten ball knobs to secure shade in place.
27) Raise diffuser up to fixture. Pass hole in diffuser over end of
threaded pipe.
28) Pass hole in bottom trim over end of threaded pipe.
29) Thread finial onto end of threaded pipe. Tighten finial to
secure shade in place. (DO NOT over tighten.)
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 8/23/13 IS-43373-CB
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
SEMI-FLUSH INSTALLATION
1) Pass fixture wire through long threaded pipe.
2) Screw end of long threaded pipe with hexnut into coupling
on top of fixture body.
3) Pass fixture wire through tube. Lower tube down over
threaded pipe.
4) Pass fixture wire through hole in check ring. Pass hole in
check ring over end of threaded pipe. Set check ring on top
of tube.
5) Pass hole in canopy over threaded pipe on top of fixture
body. Set canopy down onto top of tube.
6) Slip lockwasher over threaded pipe protruding from inside of
canopy and screw hexnut onto threaded pipe.
7) Follow steps 13-29 in Stem Drop Installation Instructions.
HEXNUT
ECROU HEXAGONAL
LOCKWASHER
RONDELLE DE BLOCAGE
CANOPY
CACHE
CHECK RING
ANNEAU DE RETENUE
TUBE
TUBE
MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE
3 SMALL LOOP
PETITE BOUCLE
3
THREADED BALL
BOULE FILETÉ
STEM
TIGE
CHAIN LINK
MAILLON DE LA
CHAÎNE
FINIAL
ORNEMENT
COUPLING
COUPLAGE
CHECK RING
ANNEAU DE RETENUE
TUBE
TUBE
LONG THREADED PIPE
LONG TUBE FILETÉ
SCREW
VIS CAGE
CAGE
THREADED PIPE
TUBE FILETÉ
BOTTOM TRIM
GARNITURE INFÉRIEURE
HEXNUT
ECROU HEXAGONAL
RUBBER WASHER
RONDELLE CAOUTCHOUTÉE FLAT WASHER
RONDELLE PLATE
DIFFUSER
DIFFUSEUR
RUBBER WASHER
RONDELLE
CAOUTCHOUTÉE
FLAT WASHER
RONDELLE PLATE
SHADE
ABAT-JOUR
BALL KNOB
BOUTON À BILLE
STEM DROP INSTALLATON
INSTALLATION PAR TIGE VERTICALE
INSTALLATION PAR TIGE VERTICALE
LES INSTRUCTIONS D’INSTALLATION SEMI-ENCASTRÉE
