SEMI FLUSH INSTALLATION INSTRUCTIONS
1) Follow steps 11-22 in the Stem Mount Installation Instructions.
STEM MOUNT INSTALLATION INSTRUCTIONS
1) Remove canopy from top of fixture. (Canopy will be used later in
installation.)
2) Set top trim piece down over threaded pipe on top of fixture body.
3) Slip washer down over threaded pipe. Screw coupling onto threaded
pipe.
4) Pass wire from fixture though stem and screw stem to top of fixture.
NOTE: Thread locking compound must be applied to all stem threads as
noted with symbol (3) to prevent accidental rotation of fixture during
cleaning, relamping, etc.
5) Pass fixture wire through remaining stems and screw stems together.
6) Thread one small threaded pipe into end of each small loop.
7) Attach small loop to end of last stem.
8) Pass threaded pipe at end of second loop through hole in canopy. (Use
canopy removed in Step 1)
9) Slip one lockwasher over end of threaded pipe protruding from inside
canopy.
10) Attach chain link to small loop at end of stem and to loop on canopy.
11) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work without
shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your home. Place
the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker switch(s),
that control the power to the fixture or room that you are working
on.
c) Place the wall switch in the “OFF” position. If the fixture to be
replaced has a switch or pull chain, place those in the “OFF” position.
12) Find the appropriate threaded holes on mounting strap. Assemble
mounting screws into threaded holes.
13) Attach mounting strap to outlet box. (Screws not provided). Mounting
strap can be adjusted to suit position of fixture.
14) Make wire connections (connectors not provided.) Reference chart
below for correct connections and wire accordingly.
15) Push fixture to ceiling, carefully passing mounting screws through holes
in canopy.
16) Secure fixture to ceiling with knurl knobs.
17) Insert recommended bulbs.
18) Screw short end of threaded pipe with bead into coupling at bottom of
fixture.
19) Slip flat washer then rubber washer over end of threaded pipe.
20) Pass hole in diffuser over end of threaded pipe.
21) Slip remaining rubber washer then flat washer over end of threaded
pipe. Screw hexnut onto threaded pipe.
22) Pass bottom trim over end of threaded pipe. Screw finial onto threaded
pipe. (DO NOT over tighten.)
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 2/24/12 IS-43049-CB
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE
KNURL KNOB
BOUTON MOLETÉ
SMALL LOOP
PETITE BOUCLE
4
STEM
TIGE
CHAIN LINK
MAILLON DE LA CHAÎNE
4
3
THREADED PIPE
TUBE FILETÉ
HEXNUT
ECROU HEXAGONAL
FINIAL
ORNEMENT
RUBBER WASHER
RONDELLE EN
CAOUTCHOUC
FLAT WASHER
RONDELLE PLATE
BOTTOM TRIM
GARNITURE INFÉRIEURE
FLAT WASHER
RONDELLE PLATE
RUBBER WASHER
RONDELLE EN
CAOUTCHOUC

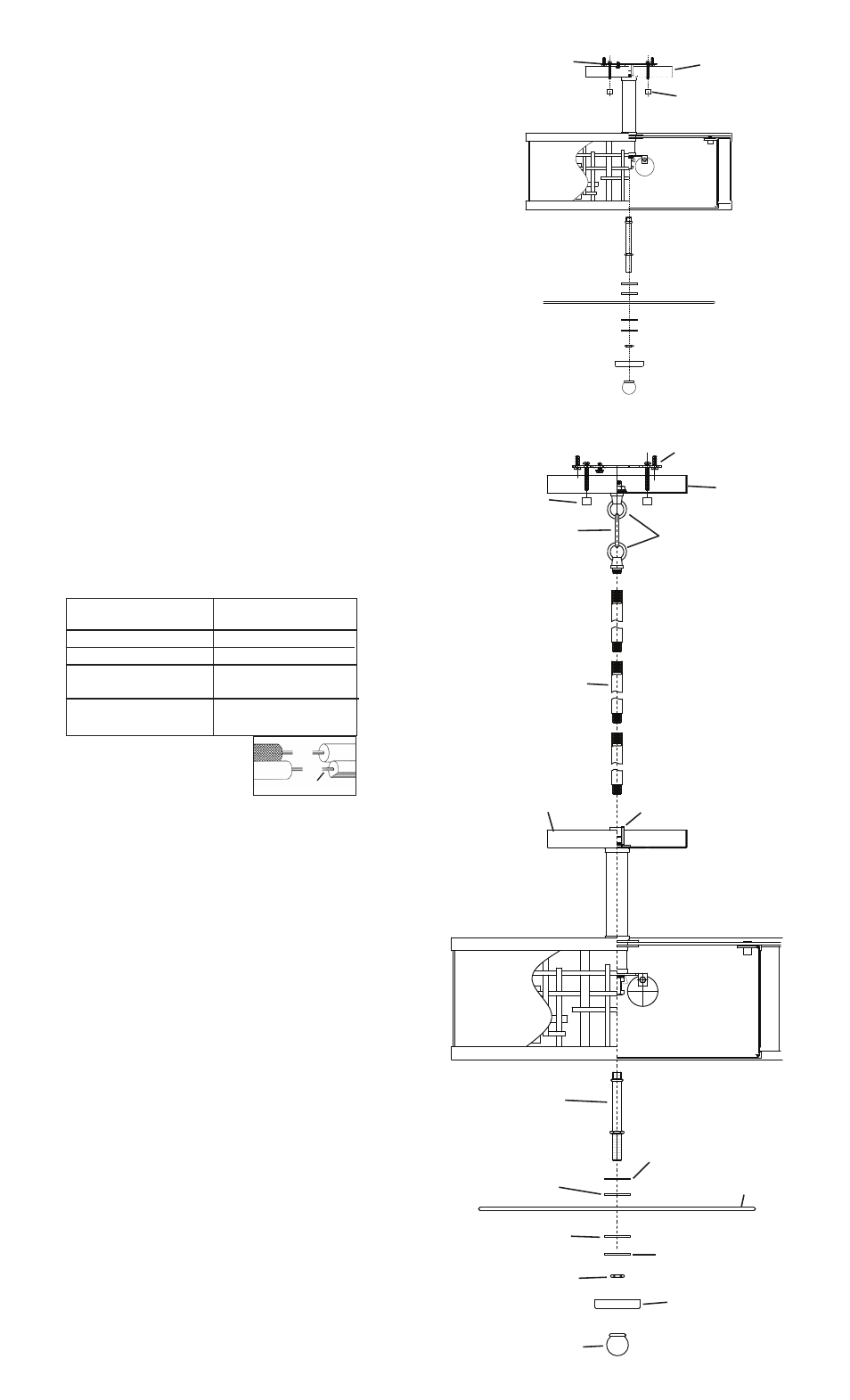

STEM MOUNT INSTALLTION
INSTALLATION DU MONT TIGE
SEMI FLUSH INSTALLATION
INSTALLATION SEMI-RAS
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
MOUNTING STRAP
PATTE DE FIXATION
CANOPY
CACHE
KNURL KNOB
BOUTON MOLETÉ
TOP TRIM
GARNITURE SUPERIOR
COUPLING
ACCOUPLEMENT
DIFFUSOR
DIFFUSEUR
