IMPORTANT SAFETY INSTRUCTIONS

LIGHTED BULB IS HOT!

WARNING: To reduce the risk of FIRE or INJURY TO PERSON:
• Turn off and allow to cool before replacing bulb.
• Bulb gets HOT QUICKLY! Contact switch only when turning off.
• DO NOT remain in light if skin feels warm. (Light is intense,
may cause “sunburn”)
• DO NOT look directly at lighted bulb.
• Keep materials away from bulb that may burn.
• Use ONLY with wattage specified or lower.
• DO NOT touch bulb at any time, use a soft cloth. Oil from skin
may damage bulb.
• DO NOT operate fixture with missing or damaged glass.

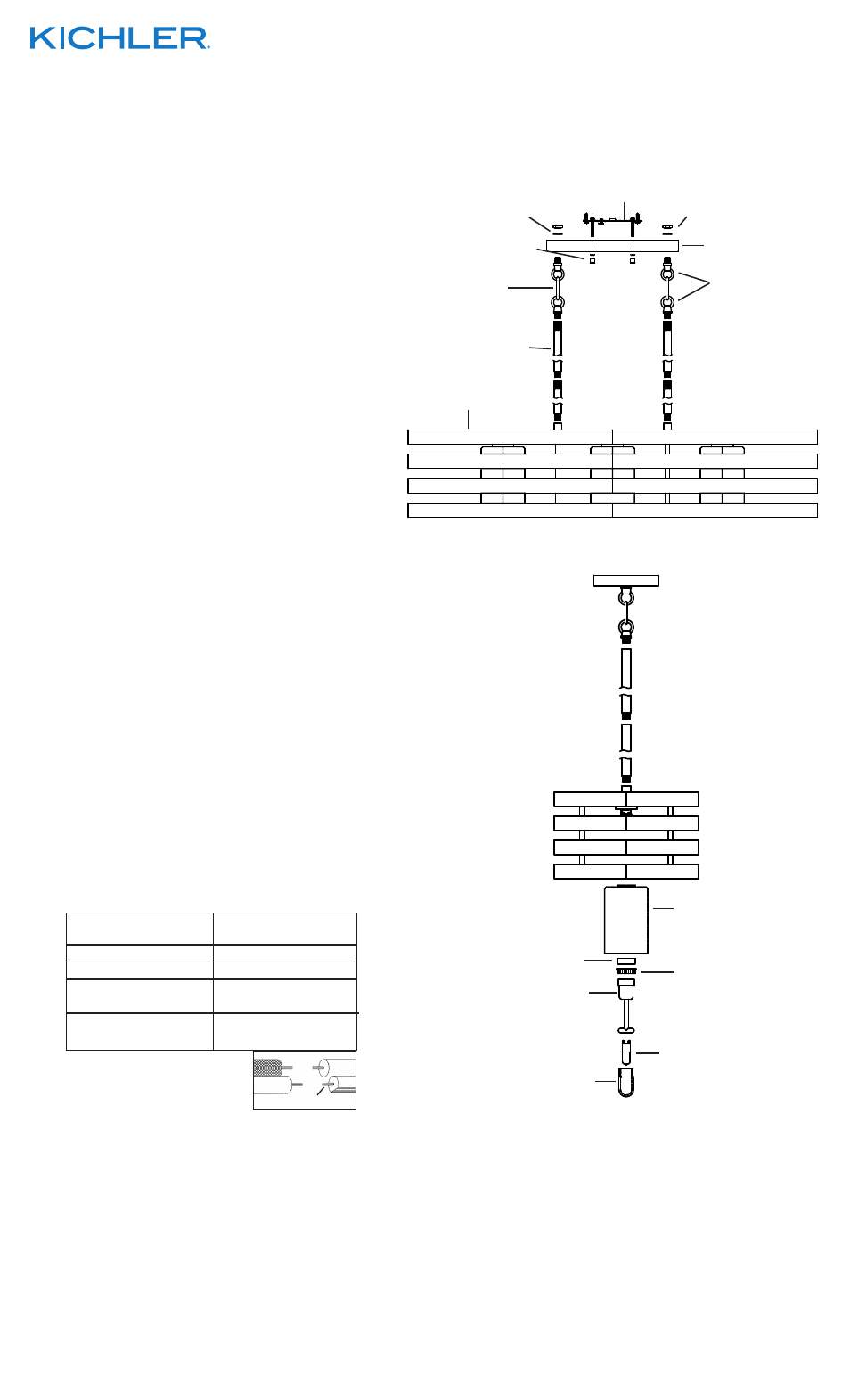

1) Pass fixture wire from each coupling on top of fixture

through one stem for each side and screw each stem into

each coupling. NOTE: Thread locking compound must be

applied to all stem threads as noted with symbol (3) to

prevent accidental rotation of fixture during cleaning,

relamping, etc.

2) Pass fixture wire through remaining stems and screw stems

together.

3) Thread one small threaded pipe into end of each small loop.
4) Pass fixture wire through first loop. Thread one first loop

onto end of each last stem.

5) Pass fixture wire through second loop and through hole in

canopy. Pass threaded pipe at end of second loop through

hole in canopy.

6) Pass fixture wire through hole in lockwasher. Thread

lockwasher onto end of threaded pipe protruding from

inside canopy.

7) Pass fixture wire through hole in hexnut. Thread hexnut onto

end of threaded pipe.

8) Repeat steps 5-7 to attach last stem to canopy.
9) Attach chain link to small loop at end of each stem and to

each loop on canopy.

10) TURN OFF POWER.

IMPORTANT: Before you start, NEVER attempt any work

without shutting off the electricity until the work is done.

a) Go to the main fuse, or circuit breaker, box in your

home. Place the main power switch in the “OFF”

position.

b) Unscrew the fuse(s), or switch “OFF” the circuit breaker

switch(s), that control the power to the fixture or room

that you are working on.

c) Place the wall switch in the “OFF” position. If the fixture

to be replaced has a switch or pull chain, place those in

the “OFF” position.

11) Find the appropriate threaded holes on mounting strap.

Assemble mounting screws into threaded holes.

12) Attach mounting strap to outlet box. (Screws not provided).

Mounting strap can be adjusted to suit position of fixture.

13) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

14) Push fixture to ceiling, carefully passing mounting screws

through holes in canopy.

15) Thread knurl knobs onto mounting screws. Tighten knurl

knobs to secure fixture to ceiling.

16) Raise glass up to fixture. Pass top of glass through hole in

bottom of fixture body. Pass hole in glass over socket.

17) Slip spacer over socket.
18) Attach socket ring to socket ring tool.

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

Black

White

*Parallel cord (round & smooth)

*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)

Neutral Wire

Date Issued: 10/17/14

IS-43686-CB

INSTRUCTIONS

For Assembling and Installing Fixtures in Canada

Pour L’assemblage et L’installation Au Canada
