IMPORTANT SAFETY INSTRUCTIONS
LIGHTED BULB IS HOT!
WARNING: To reduce the risk of FIRE or INJURY TO PERSON:
• Turn off and allow to cool before replacing bulb.
• Bulb gets HOT QUICKLY! Contact switch only when turning off.
• DO NOT remain in light if skin feels warm. (Light is intense, may cause
“sunburn”)
• DO NOT look directly at lighted bulb.
• Keep materials away from bulb that may burn.
• Use ONLY with wattage specified or lower.
• DO NOT touch bulb at any time, use a soft cloth. Oil from skin may damage
bulb.
• DO NOT operate fixture with missing or damaged glass.
RIGID STEM MOUNT
1) Lower shade down over fixture. Set shade down on arms of fixture.
2) Pass wire through stems and screw stems into couplings on top of
fixture body. IMPORTANT: At least one 12” stem must be used on each
coupling.
NOTE: Thread locking compound must be applied to all stem threads
as noted with symbol (3) to prevent accidental rotation of fixture during
cleaning, relamping, etc.
3) Pass fixture wire through remaining stems and screw stems together.
4) Pass hole in canopy over end of stem.
5) Slip lockwasher over end of stem and screw hexnut onto end of stem.
6) TURN OFF POWER.
IMPORTANT: Before you start, NEVER attempt any work without
shutting off the electricity until the work is done.
a) Go to the main fuse, or circuit breaker, box in your home. Place
the main power switch in the “OFF” position.
b) Unscrew the fuse(s), or switch “OFF” the circuit breaker switch(s),
that control the power to the fixture or room that you are working
on.
c) Place the wall switch in the “OFF” position. If the fixture to be
replaced has a switch or pull chain, place those in the “OFF”
position..
7) Find the appropriate threaded holes on mounting strap. Assemble
mounting screws into threaded holes.
8) Attach mounting strap to outlet box. (Screws not provided). Mounting
strap can be adjusted to suit position of fixture.
9) Make wire connections (connectors not provided.) Reference chart
below for correct connections and wire accordingly.
10) Push fixture to ceiling, carefully passing mounting screws through holes.
11) Secure fixture to ceiling with lockwashers and threaded balls.
12) Set glass then spacer down over socket.
13) Attach socket ring to socket ring tool.
14) Lower socket ring tool with socket ring attached down through glass.
Thread socket ring onto socket. Tighten socket ring to secure glass in
place. (DO NOT over tighten.)
15) Insert supplied bulbs. CAUTION: DO NOT touch bulb with bare hands. If
this happens, clean bulb with denatured alcohol and a lint free cloth.
16) Thread glass sleeves onto sockets. (DO NOT over tighten.)
LOOP/CHAIN LINK MOUNT
1) Follow steps 1 -3 from Stem Mount Instructions.
2) Screw threaded pipe into end of each stem.
3) Screw loops onto end of each threaded pipe.
4) Add one chain link to each loop and add second loop to each chain link.
5) Screw threaded pipe into end of each loop.
6) Pass each threaded pipe on loops through holes in canopy.
7) Slip one lockwasher over end of each threaded pipe and screw one
hexnut onto threaded pipes.
8) Follow steps 6 - 16 from Stem Mount Instructions.
Connect Black or
Red Supply Wire to:
Connect
White Supply Wire to:
Black White
*Parallel cord (round & smooth) *Parallel cord (square & ridged)
Clear, Brown, Gold or Black
without tracer
Clear, Brown, Gold or Black
with tracer
Insulated wire (other than green)
with copper conductor
Insulated wire (other than green)
with silver conductor
*Note: When parallel wires (SPT I & SPT II)
are used. The neutral wire is square shaped
or ridged and the other wire will be round in
shape or smooth (see illus.)
Neutral Wire
Date Issued: 9/23/11 IS-42923-CB
LOOP/CHAIN LINK
BOUCLE/MAILLON DE CHAÎNE
CANOPY
CACHE LOCKWASHER
RONDELLE DE
BLOCAGE
STEM
TIGE
3
HEXNUT
ECROU HEXAGONAL
LOOP
BOUCLE
CHAIN LINK
MAILLON DE
CHAÎNE
STEM
VARILLA

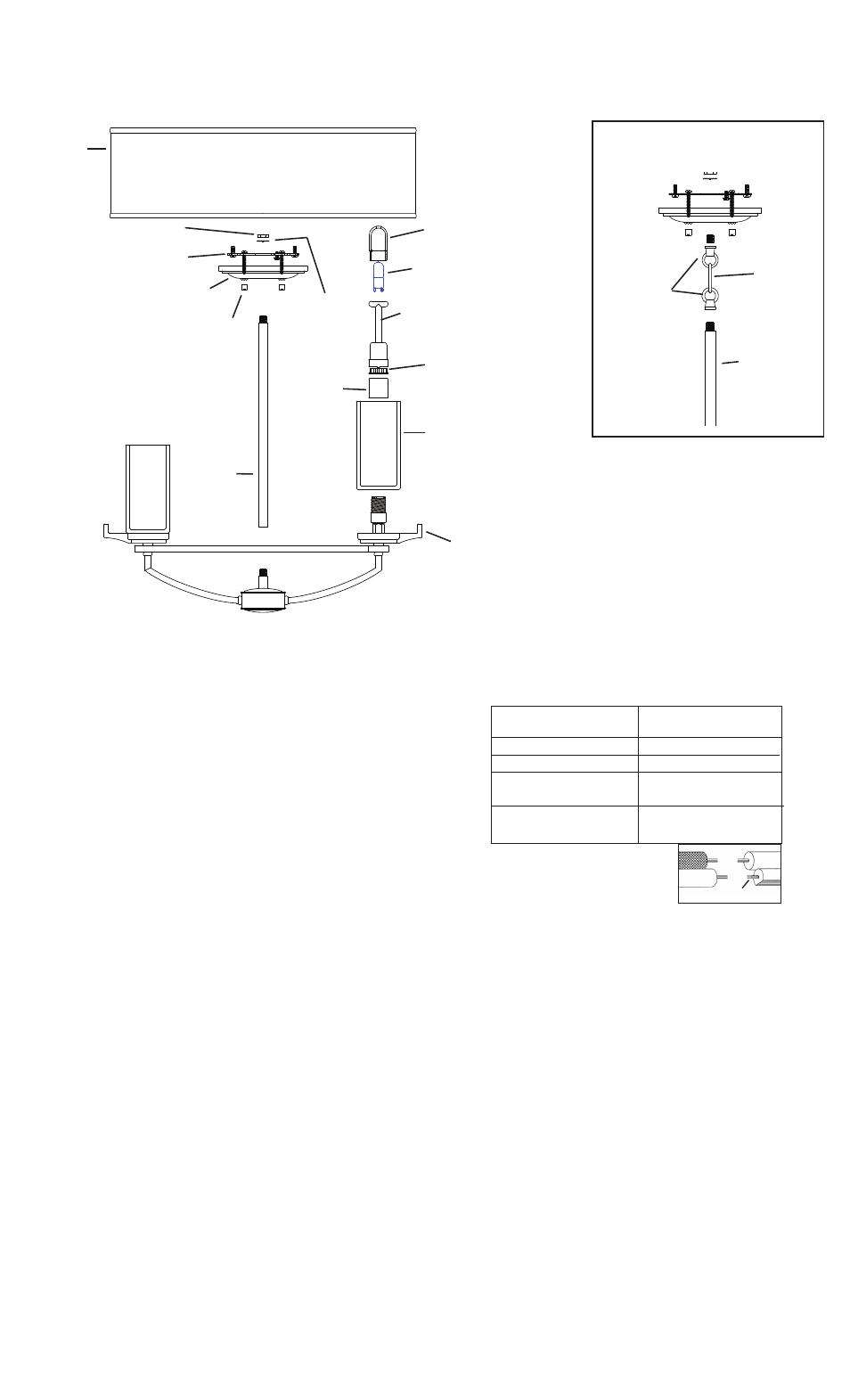

RIGID STEM MOUNT
INSTALLATION SUR TIGE CANNELÉE
3
4
INSTRUCTIONS
For Assembling and Installing Fixtures in Canada
Pour L’assemblage et L’installation Au Canada
MOUNTING STRAP
PLANCHA PARA MONTAR
THREADED BALL
BOULE FILETÉE
SHADE
ABAT-JOUR
SOCKET RING
BAGUE DE LA DOUILLE
GLASS
VERRE
SPACER
ENTRETOISE
GLASS SLEEVE
MANCHON DE VERRE
BULB
L’AMPOULE
SOCKET RING TOOL
OUTIL DE L’ANNEAU
DE LA DOUILLE
ARM
BRAS
4
SEE OTHER SIDE FOR CANADIAN FRENCH TRANS-
LATIONS.
VOIR L’AUTRE CÔTÉ POUR LES CANADIENS TRA-
DUCTIONS EN FRANÇAIS.
