Hypertherm HPR130XD Auto Gas Rev.2 - Manuel (Page 225)

7-5
4 3 2 1
1
A
4 3 2
A
B
C
D
B
C
D
3 Phase
Power
w/ Ground
Unit 2
Torch Lead Assembly
Ignition Console
HF/PS Cable
Unit 1
Power Supply
Gas Power Cable
Torch
Interface
CNC
(Customer Supplied)
Workpiece
Plasma
1X3 2X1
1X1
Unit 6
Pilot Arc Lead
Shield
Plasma Interface Cable
1X4
Unit 5
(Optional Unit)
THC
CNC Interface Cable
Pendant Ext. Cable
(Optional Unit)
Operator
Unit N
Pendant
Lifter
Torch
(Optional Unit)
Unit M
Work Lead
72"
1X2
Gas Control Cable
Negative Lead
1X5
Motor Drive Cable
CNC Interface Cable
Lifter I/O Interface Cable
4X1
Metering Console
3X2 3X1 3X4
N2
O2
Air
Selection Console
Unit 3
128930
Power Cable
Cut Gas 2
Cut Gas 1
Atm Vent
Unit 4
3X3 4X2 4X3
Gas Control Cable
Ar
F5
H35
H5
1X6
CNC Interface Cable
Cooling Supply Lead
Cooling Return Lead

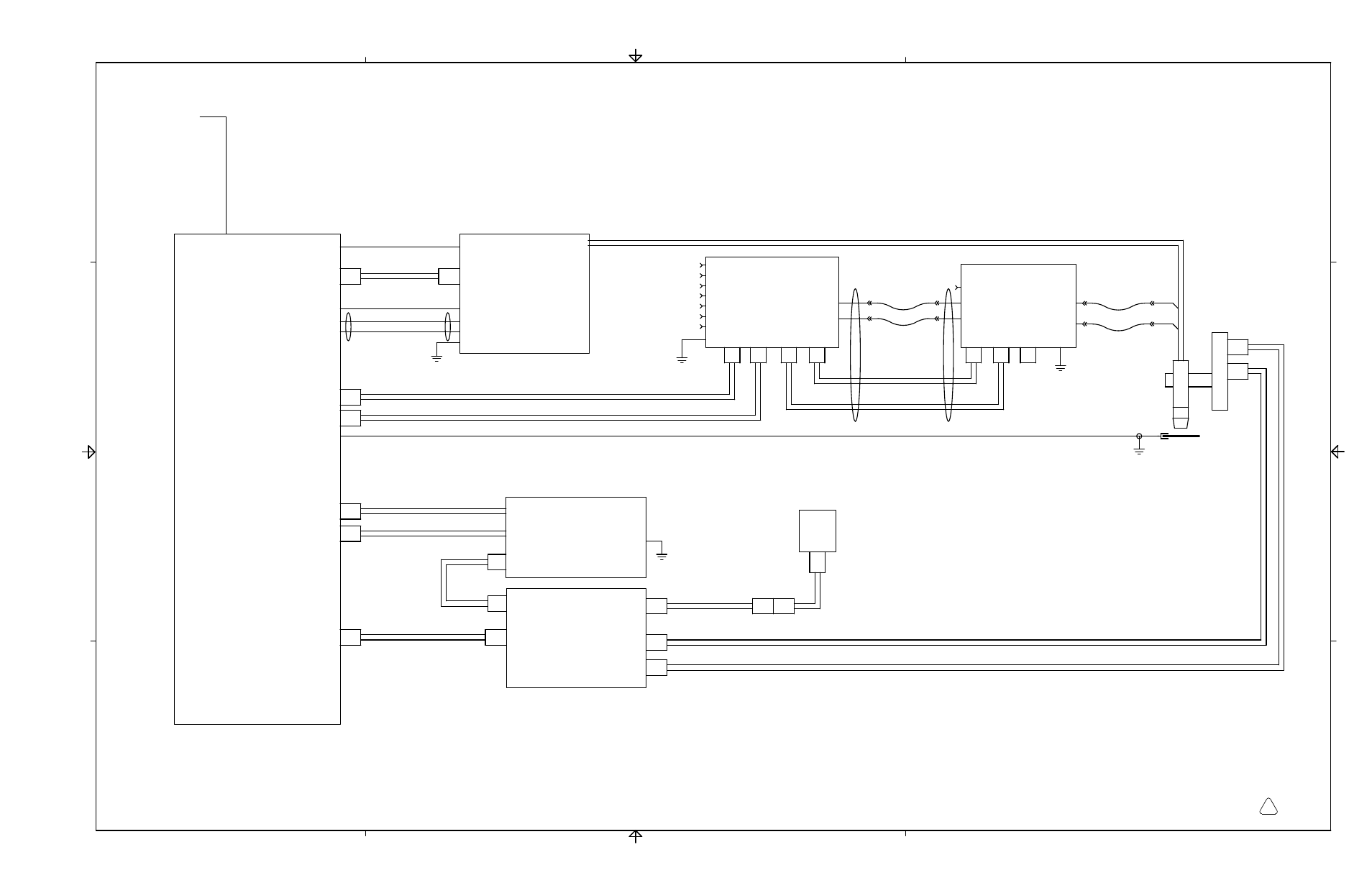

ELEC SCH:HPR130XD PWR SPLY W/AUTO
B
013376
SHEET 1 OF 22
