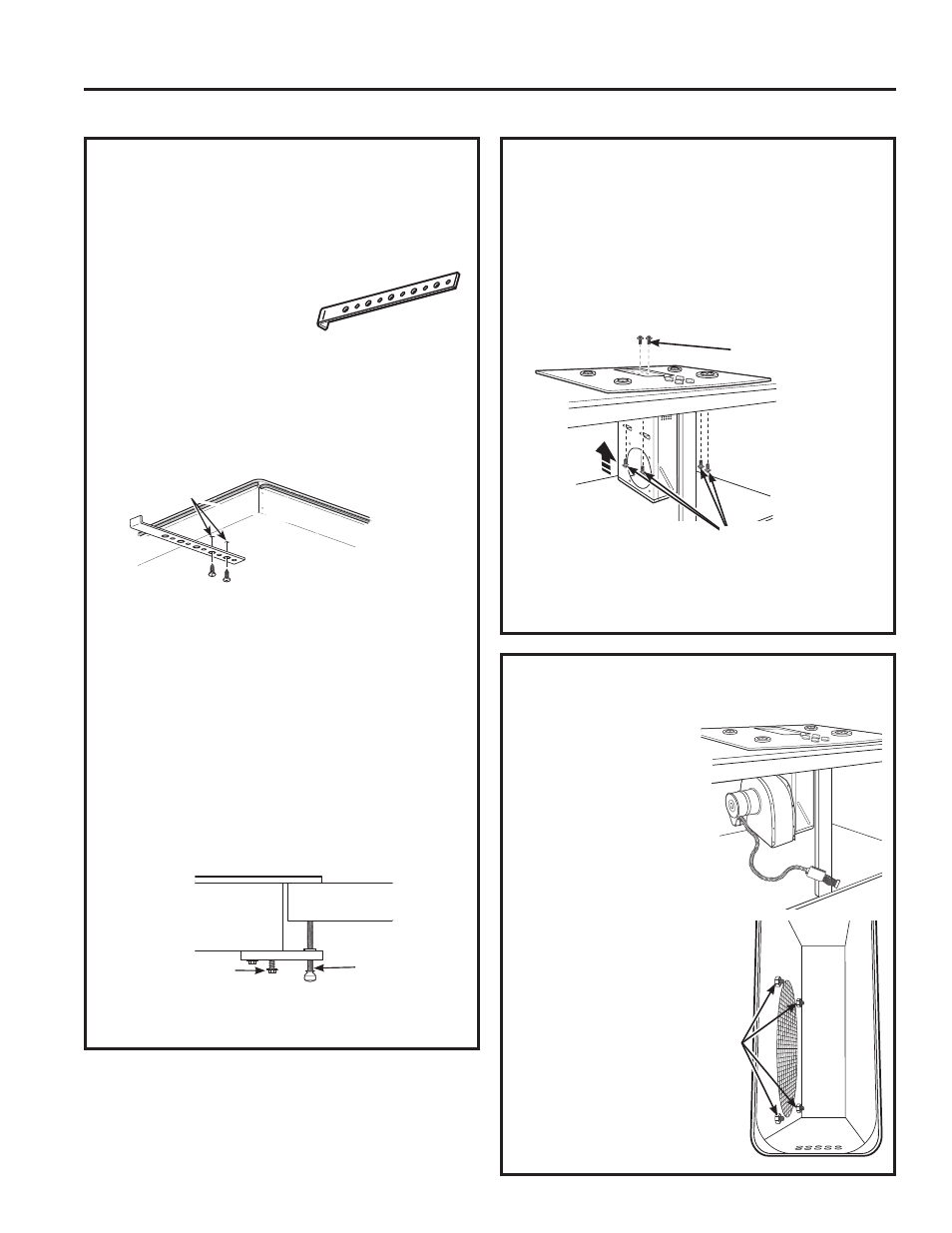

24
49-2001159 Rev. 0
Installation Instructions
11. INSTALLING THE BLOWER
PLENUM TO THE COOKTOP
Slide the plenum, with the blower opening on the
left, into the opening in the bottom of the cooktop.
3XVKXSRQWKHSOHQXPXQWLOWKHVWRSVRQWKH
plenum contact the bottom of the cooktop, and snap
the plenum into place. (You may have to move the
SOHQXPEDFNDQGIRUWKWRZRUNLWLQWRSODFH
Secure the plenum to the bottom of the cooktop,
RQHDFKVLGHXVLQJWKHIRXUVFUHZVSURYLGHG
Further secure the plenum to the cooktop, from the
WRSVLGHXVLQJWKHWZRVFUHZVSURYLGHG
12. INSTALLING THE BLOWER TO
THE PLENUM
Orient the blower
discharge opening to
match the ductwork in
Steps 5 and 6. Slide the
four threaded studs on the
side of the blower housing
into the four holes on the
side of the plenum.
NOTE: 6HH6WHSIRU
installing the transition
duct to the blower. It
may be easier to install
the transition duct to the
blower before installing
the blower to the
plenum.
From the vent opening
in the top of the
cooktop, fasten the
blower assembly
securely to the plenum
ZLWKIRXUQXWV
Torque to 25±5 in/lb.
4 Nuts
(
7 / ”
socket
UHTXLUHG
COOKTOP INSTALLATION (Cont.)
Install 2 screws
Install 4 screws
INST
ALLA
TION INSTRUCTIONS
10. INSTALLING THE COOKTOP
(Cont.)
C. Make sure the front edge of the countertop is
parallel to the cooktop. Make final check that all
required clearances are met.
'/RFDWHDQGUHPRYH
hold-down brackets from
installation kit package.
E. Attach brackets to the
underside of the cooktop. Remove the screws
from the bottom of the cooktop and screw the
hold-down bracket to the bottom of the cooktop
unit. Repeat for opposite side of cooktop.
F. Screw the hold-down brackets into the cabinet
sides to secure the unit into place.
Alternate Installation:
You can order an alternate installation kit
:%;ZLWKZLQJQXWVDQGEUDFNHWVE\FDOOLQJ
*(&$5(66HHGLDJUDPIRULQVWUXFWLRQV
To install optional installation brackets:
Remove 2 screws on both sides under cooktop.
Align optional installation bracket under cooktop and
UHLQVWDOOVFUHZVWKURXJKWKHVORWLQWKHEUDFNHW'R
this on both sides of the cooktop.
Thread the thumb screw through the hole in the
bracket and tighten to secure the cooktop to the
countertop. Repeat on the other side.
IMPORTANT: Turn the thumbscrew until it touches
WKHERWWRPRIWKHFRXQWHUWRS'RQRWRYHUWLJKWHQ
Cooktop Countertop
Screws supplied with
cooktop
Thumb screw
3UHGULOOHGKROHV
%RWWRPRI
Cooktop
Cooktop Surface
