Maytag 29 Inch Front Load Electric Dryer Owner Guide - Manuel (Page 13)

13

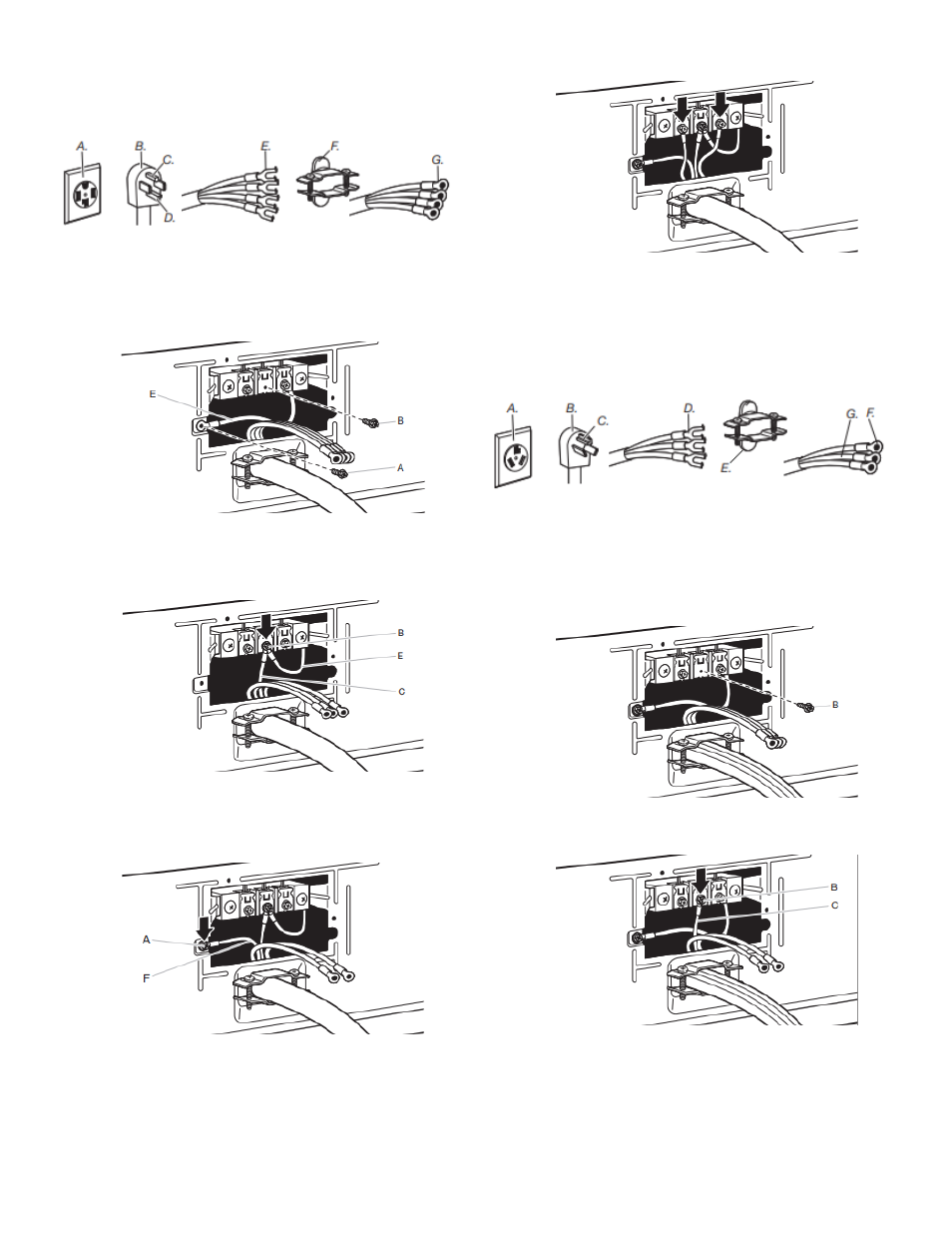

4-Wire Power Supply Connection
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire
connections.
A. 4-wire receptacle
(NEMA type 14-30R)
B. 4-prong plug
C. Ground prong
D. Neutral prong
E. Spade terminals with
upturned ends
F. 3/4" (19 mm) UL-listed
strain relief
G. Ring terminals
3. Prepare ground wire appliance installation
Remove center terminal block screw (B). Remove neutral
bond wire (E) from green external ground conductor screw
(A).
4. Connect neutral bond wire and neutral wire
Connect neutral bond wire (E) and neutral wire (white or
center) (C) of power supply cord under center terminal block
screw (B). Tighten screw.
5. Connect ground wire
Connect ground wire (F) (green or bare) of power supply cord
under green external ground conductor screw (A). Tighten
screw.
6. Connect remaining wires
Connect remaining wires under outer terminal block screws.
Tighten screws. Insert tab of terminal block cover into slot of
dryer rear panel. Secure cover with hold-down screw. Now,
go to “Venting Requirements.”
3-Wire Power Supply Connection
IMPORTANT: Use where local codes permit connecting cabinet-
ground conductor to neutral wire.
A. 3-wire receptacle
(NEMA type 10-30R)
B. 3-wire plug
C. Neutral prong
D. Spade terminals with
upturned ends
E. 3/4" (19 mm) UL-listed
strain relief
F. Ring terminals
G. Neutral (white or center
wire)
3. Remove center screw
Remove center terminal block screw (B).
4. Connect neutral wire
Connect neutral wire (white or center) (C) of power supply
cord under center terminal block screw (B). Tighten screw.
