Two people are recommended to attach the Built-in
Microwave Hood to the Mounting Plate.
-
figur
e

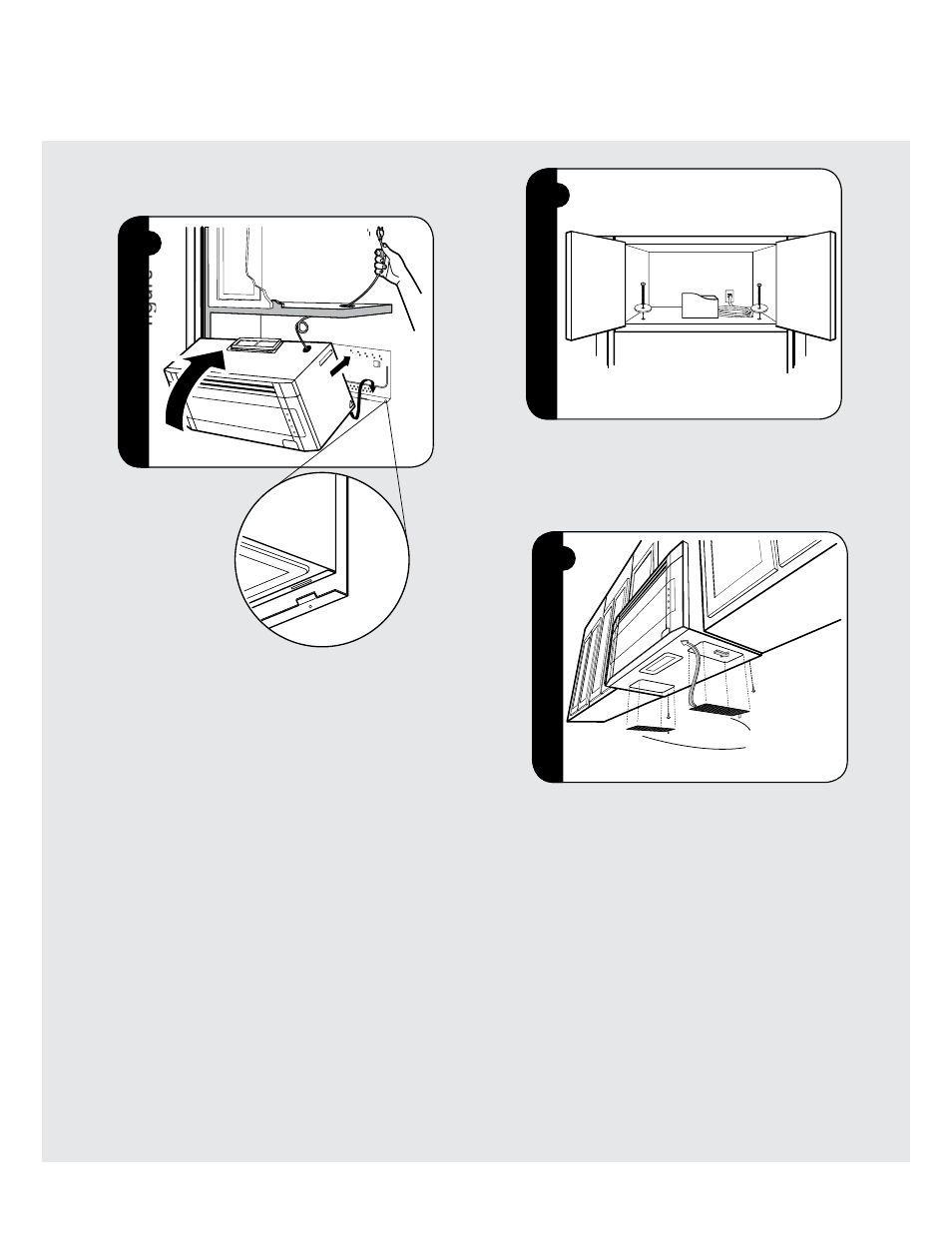

4) MOUNTING OVEN TO THE WALL : Thread the Power
Supply Cord through the hole made in the bottom of the
top cabinet. Lift and tilt the oven forward. Hook the back
bottom of the oven to the bottom of the Mounting Plate.
Lift the front of the oven up to the bottom of the cabinet.
Keep the Power Supply Cord tight to avoid interference with
mounting the oven flush with the bottom of the cabinet.
figur
e
figur
e
.
3
5
5) MOUNTING OVEN TO THE WALL : Use the two Top
Cabinet Screws 3 and two Flat Washers 5 , supplied in the
INSTALLATION HARDWARE, to attach the unit to the top
cabinet. Tighten until the top of the oven is right against
the bottom of the cabinet.
figur
e
figur
e
/
9
Bottom Plate
Screws
6) MOUNTING OVEN TO THE WALL : Attach the two
Bottom Plate Screws saved from section PREPARATION
OF THE OVEN , figure 4 . Install the two Grease Filters 9 .
Checklist for Installation
• Make sure the unit has been installed according to all of
the Installation Instructions and the Wall and Top Cabinet
Templates.
• Plug in the power cord.
• Keep the Use & Care Manual and Installation Manual.
10 Mounting Oven to the Wall
