5
figur
e
figur
e
8
Save fan cover bracket for
future instructions.
4) HORIZONTAL EXHAUST: Put the wire back into the
cavity. The Fan Cover Bracket and Exhaust Damper
Assembly are mounted to the wall. Follow instructions on
WALL TEMPLATE provided.
(C) Vertical Exhaust: Outside
Ventilation
figur
e
figur
e
9

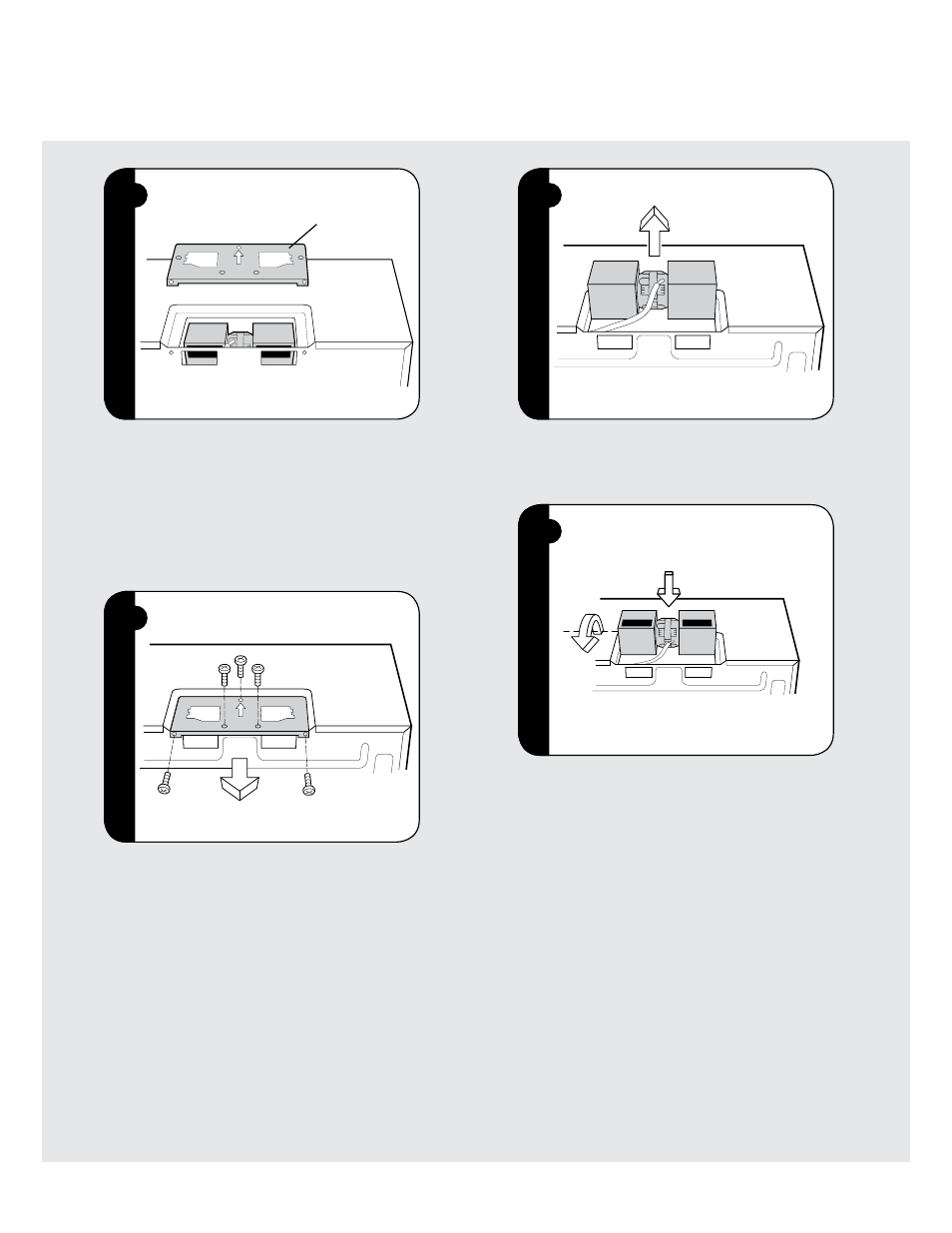

1) VERTICAL EXHAUST: Remove and save 2 screws from
back edge and 3 screws from the top center of the Fan
Cover Bracket. Remove Fan Cover Bracket by sliding it in the
opposite direction of the arrow on the Fan Cover Bracket.
figur
e
figur
e
!
2) VERTICAL EXHAUST: Lift Hood Fan Unit carefully and
slip wires out of cavity.
• cautiOn: Do not pull or stretch hood fan wiring.
figur
e
figur
e
"
(A) Rotate
90˚
(B)
3) VERTICAL EXHAUST: Rotate the Hood Fan Unit 90˚ so
that the fan blade openings are facing the top of the oven.
See (A). Replace Hood Fan Unit into the oven. Be careful not
to pinch the lead wire between the inner bracket and the
Hood Fan Unit. Put the lead wire into Wire Box. See (B).
Replace the Fan Cover Bracket by sliding it into the slits
in the same direction as the arrow on the Fan Cover
Bracket. Make sure the fan blades are visible through the
top openings in the oven before proceeding.
8 Ventilation System
(Preparing
Oven for Installation)
