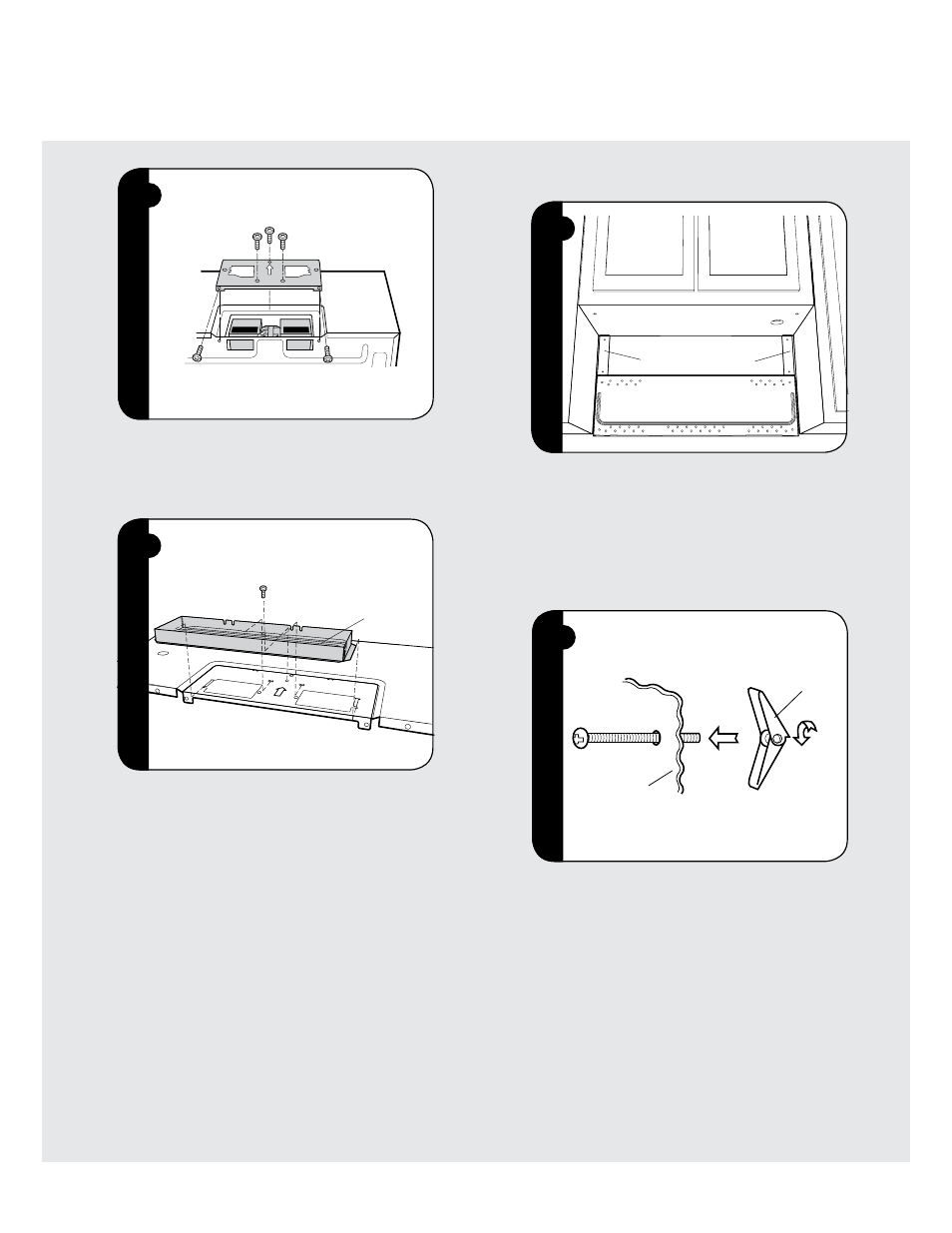

4) VERTICAL EXHAUST: Attach the Fan Cover Bracket to
unit with the 2 screws from back edge and 3 screws from the
top center of the Fan Cover Bracket, which were removed
in Step 1. The Hood Fan Unit is now rotated for vertical
exhaust operation.
figur
e
figur
e
$
7 Exhaust Damper
Assembly
5) VERTICAL EXHAUST: Attach the Exhaust Damper
Assembly to the fan cover on the top of the outercase
cabinet by sliding it into the slits in the same direction as
the arrow. Use 1 Tapping Screw 4 x 12 mm 4 from the
INSTALLATION HARDWARE and tighten into place.
9 Oven Installation
THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT
REFERRING TO THE MOUNTING INSTRUCTIONS
FOUND ON WALL AND TOP CABINET TEMPLATES.
The next step is to read and follow mounting information
on wall and top cabinet templates. This oven must
be attached to at least one wall stud. See WALL
CONSTRUCTION.
When done with templates, proceed to mounting scale
plate section.
Mounting Scale Plate
figur
e e
figur
%
8 Scale Plates
Mounting Plate
OVEN INSTALLATION: The Scale Plates are used to help
locate the mounting plate. Attach 2 Scale Plates 8 with
tape (not included). See figure % and WALL TEMPLATE
for locations. After securing the mounting plate, remove
and discard the Scale Plates.
Mounting Plate
figur
e
figur
e
&
Mounting Plate
Toggle Bolt
1) MOUNTING PLATE: Separate 4 Toggle Bolts 2 , packed
in the INSTALLATION HARDWARE , from the Toggle Nuts.
Match 5/8” holes (not in studs), drilled through WALL
TEMPLATE into wall to corresponding holes on Mounting
Plate. Insert Toggle Bolts into matched openings on
Mounting Plate. Put Toggle Nuts on Toggle Bolts.
8 Ventilation System
(Preparing Oven for Installation)
