9 Installation Requirements

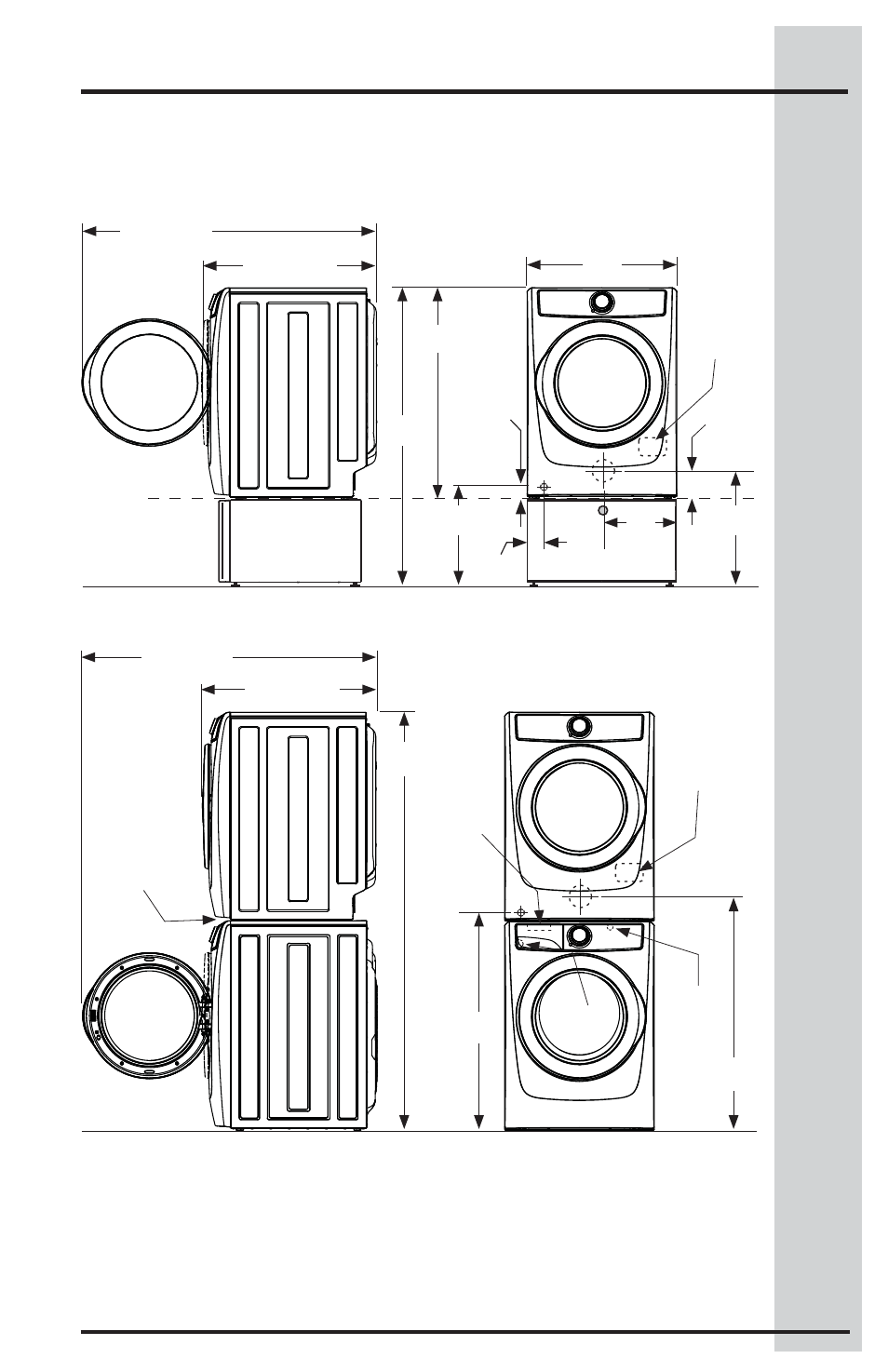

Dryer dimensions
*Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
1 Power supply cord length on gas dryer or electric Canadian dryer approximately 60 inches (152.5 cm).
2 Drain hose length on washer approximately 59 inches (150 cm).
3 Power supply cord length on washer approximately 60 inches (152.5 cm).
electrical
supply on
rear of unit
1
gas supply
pipe on rear
of gas unit
centerline
height of
rear vent
53.2” (135 cm)*
to clear open door
31.6” (80 cm)*
to front of closed door
27.0”
(68.5 cm)
13.5”
(34.5 cm)
to center of
rear vent
fl oor line
fl oor line
freestand dryer
on fl oor
dryer mounted on
optional pedestal
38.0”
(96.5 cm)
53.25”
(135.5 cm)
17.0”
(43 cm)
19.0”
(48 cm)
3.7”
(9.5 cm)
1.5”
(4 cm)
3.75”
(9.5 cm)
electrical
supply on
rear of unit
1
gas supply
pipe on rear
of gas unit
approved stacking
kit (STACKIT7X)
required for
stacked installation
centerline
height for
rear vent
53.5” (136 cm)*
to clear open door
32.0” (81.25 cm)*
to front of closed door
75.75”
(192.5 cm)
41.0”
(105 cm)
39.0”
(99 cm)
water supply
connection on
rear of unit
drain hose on
rear of unit
2
power cord on
rear of unit
3
fl oor line
