12

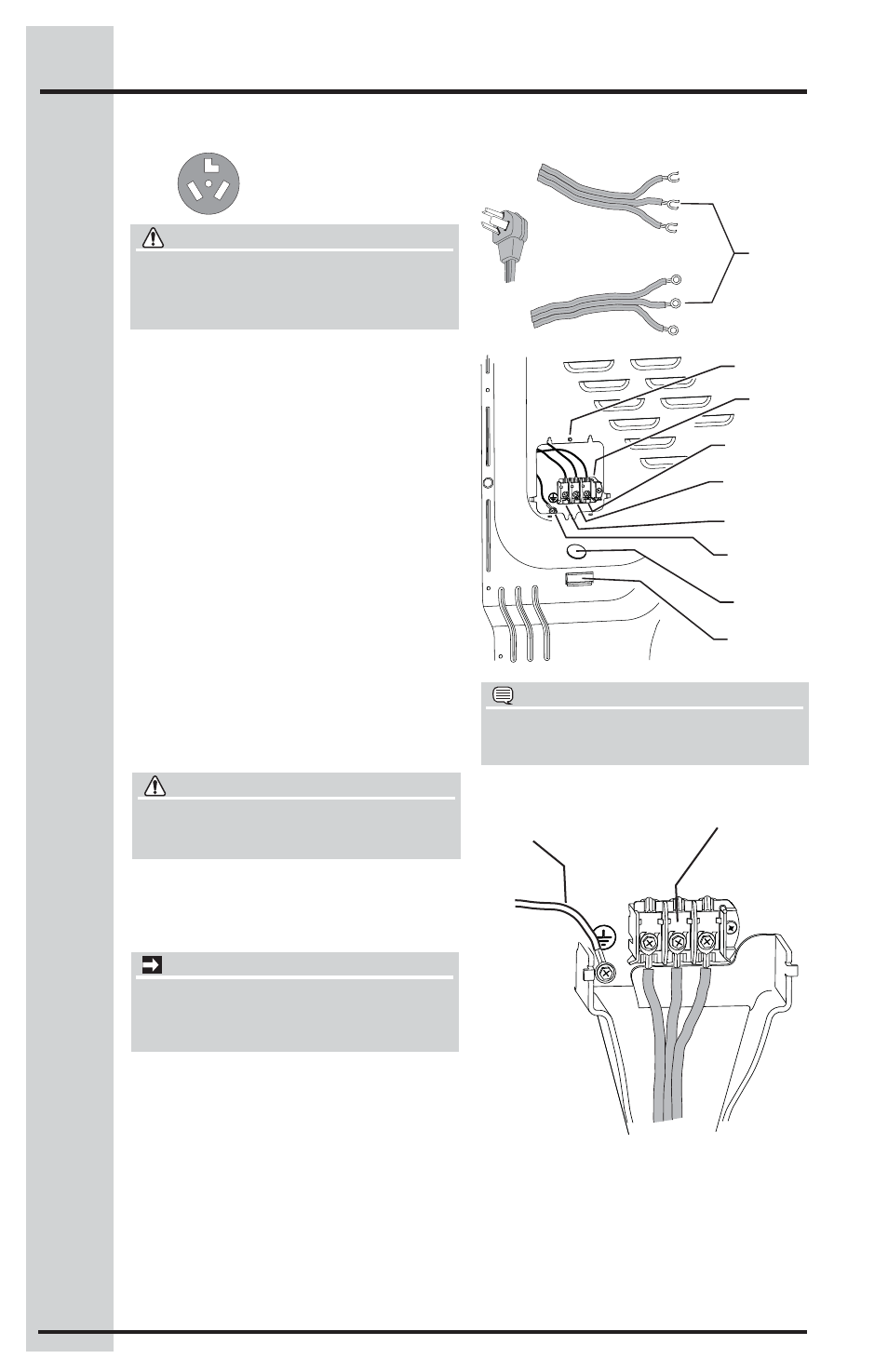

Electrical connection (non-Canada) - 3 wire cord
Installation Instructions
1. Turn off power supply to outlet.
2. Remove the screw securing the terminal
block access cover in the lower corner on
the back of the dryer.
3. Install a UL-approved strain relief
according to the power cord/strain relief
manufacturer’s instructions in the power
cord entry hole below the access panel. At
this time, the strain relief should be loosely
in place.
4. Thread an UNPLUGGED, UL-approved, 30
amp. power cord, NEMA 10-30 type SRDT,
through the strain relief.
5. Attach the power cord neutral (center wire)
conductor to the SILVER colored center
terminal on the terminal block. Tighten the
screw securely.
6. Attach the remaining two power cord outer
conductors to the outer, BRASS colored
terminals on the terminal block. Tighten both
screws securely.
3-wire receptacle
(NEMA type 10-30R)
Internal ground Internal ground
(GREEN screw) (GREEN screw)
Install Install
UL-approved UL-approved
strain relief here strain relief here
Terminal screw Terminal screw
recovery slot recovery slot
Line 1 Line 1
(BRASS terminal) (BRASS terminal)
Neutral Neutral
(SILVER terminal) (SILVER terminal)
Line 2 Line 2
(BRASS terminal) (BRASS terminal)
Access cover Access cover
screw screw
Terminal Terminal
block block
Neutral Neutral
(center wire) (center wire)
30 AMP 30 AMP
NEMA 10-30 NEMA 10-30
7. Follow manufacturer’s guidelines for fi rmly
securing the strain relief and power cord.
8. Reinstall the terminal block cover.
DO NOT remove DO NOT remove
internal ground in internal ground in
a 3-wire system!! a 3-wire system!!
Neutral Neutral
terminal terminal
NOTE
If a terminal screw falls during cord installation,
it can be retrieved in the terminal screw
recovery slot below the access panel.
WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/
conductor at connections.
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before
servicing could result in personal injury or even
death.
IMPORTANT
If moving dryer from a 4-wire system and install-
ing it in a 3-wire system, move the internal ground
from the center terminal back to the GREEN
screw next to the terminal block.
