13

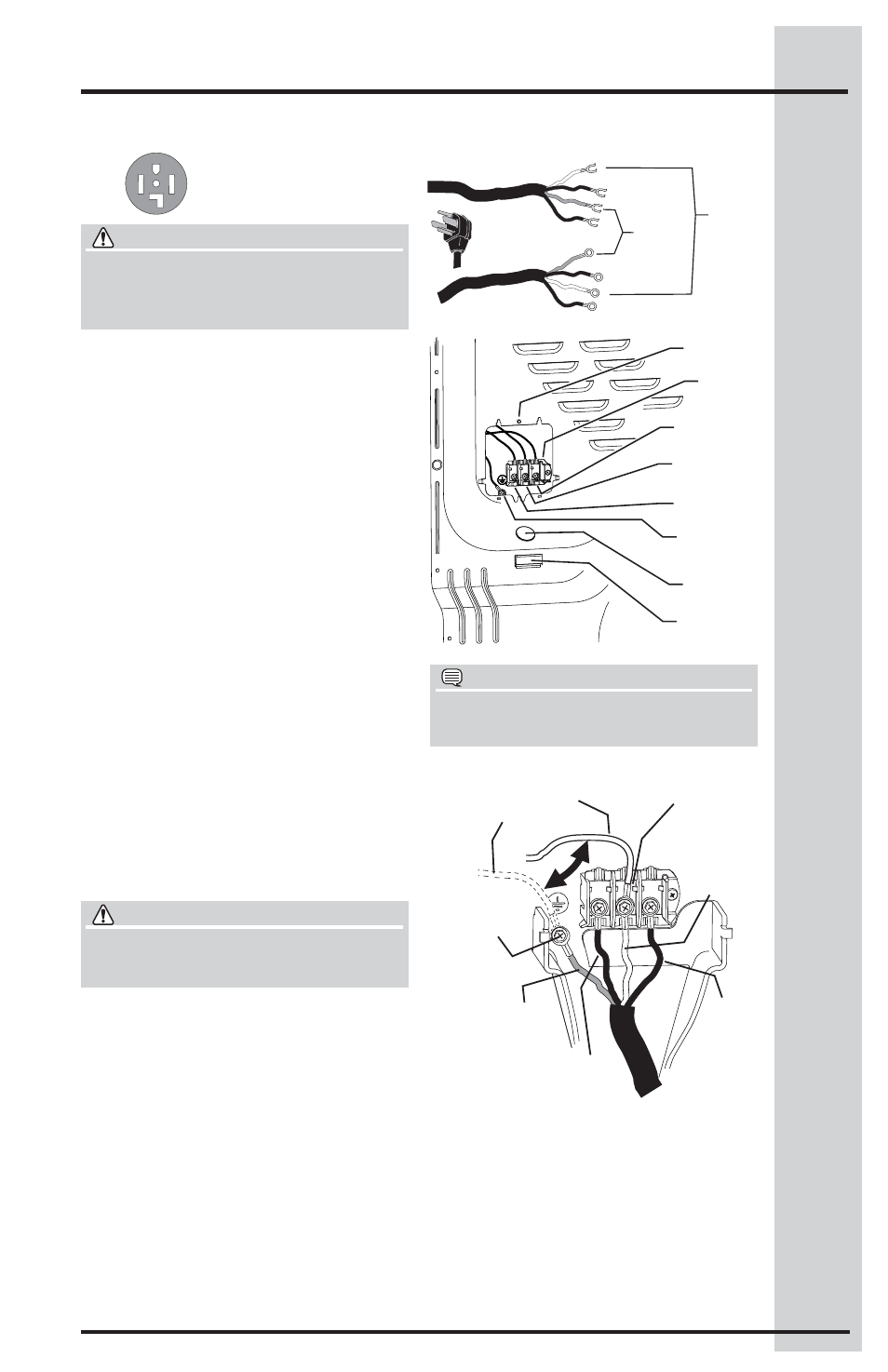

Installation Instructions

Electrical connection (non-Canada) - 4 wire cord

Internal ground

Internal ground

(GREEN screw)

(GREEN screw)

Install

Install

UL-approved

UL-approved

strain relief here

strain relief here

Terminal screw

Terminal screw

recovery slot

recovery slot

Line 1

Line 1

(BRASS terminal)

(BRASS terminal)

Neutral

Neutral

(SILVER terminal)

(SILVER terminal)

Line 2

Line 2

(BRASS terminal)

(BRASS terminal)

Access cover

Access cover

screw

screw

Terminal

Terminal

block

block

4-wire receptacle

(NEMA type 14-30R)

1. Turn

off power supply to outlet.

2. Remove the screw securing the terminal block

access cover in the lower corner on the back
of the dryer.

3. Install a UL-approved strain relief

according to the power cord/strain relief
manufacturer’s instructions in the power
cord entry hole below the access panel. At
this time, the strain relief should be loosely
in place.

4. Thread an UNPLUGGED, UL-approved, 30

amp. power cord, NEMA 14-30 type DRT or
SRDT, through the strain relief.

5. Disconnect the internal (WHITE) dryer

harness ground wire from the (GREEN)
ground screw next to the terminal block.

6. Attach the ground (GREEN) power cord

wire to the cabinet with the ground (GREEN)
screw. Tighten the screw securely.

7. Move the internal dryer harness ground

(WHITE) wire to the terminal block and
attach it along with the neutral (WHITE)
power cord wire conductor to the center,
SILVER colored terminal on the terminal
block. Tighten the screw securely.

8. Attach the RED and BLACK power cord

conductors to the outer, BRASS colored
terminals on the terminal block. Tighten both
screws securely.

Neutral

Neutral

(WHITE wire)

(WHITE wire)

30 AMP

30 AMP

NEMA 14-30

NEMA 14-30

Ground

Ground

(GREEN wire)

(GREEN wire)

9. Follow manufacturer’s guidelines for fi rmly

securing the strain relief and power cord.

10. Reinstall the terminal block cover.

Move internal ground (WHITE)

Move internal ground (WHITE)

wire to neutral (SILVER)

wire to neutral (SILVER)

terminal for 4-wire system.

terminal for 4-wire system.

Neutral

Neutral

terminal

terminal

GREEN

GREEN

ground screw

ground screw

BLACK or

BLACK or

RED power wire

RED power wire

BLACK

BLACK
or RED

or RED

power wire

power wire

GREEN

GREEN

ground wire

ground wire

WHITE

WHITE

neutral wire

neutral wire

NOTE

If a terminal screw falls during cord installation,
it can be retrieved in the terminal screw
recovery slot below the access panel.

WARNING

ELECTRICAL SHOCK HAZARD

Do not make a sharp bend or crimp wiring/
conductor at connections.

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before
servicing could result in personal injury or even
death.
