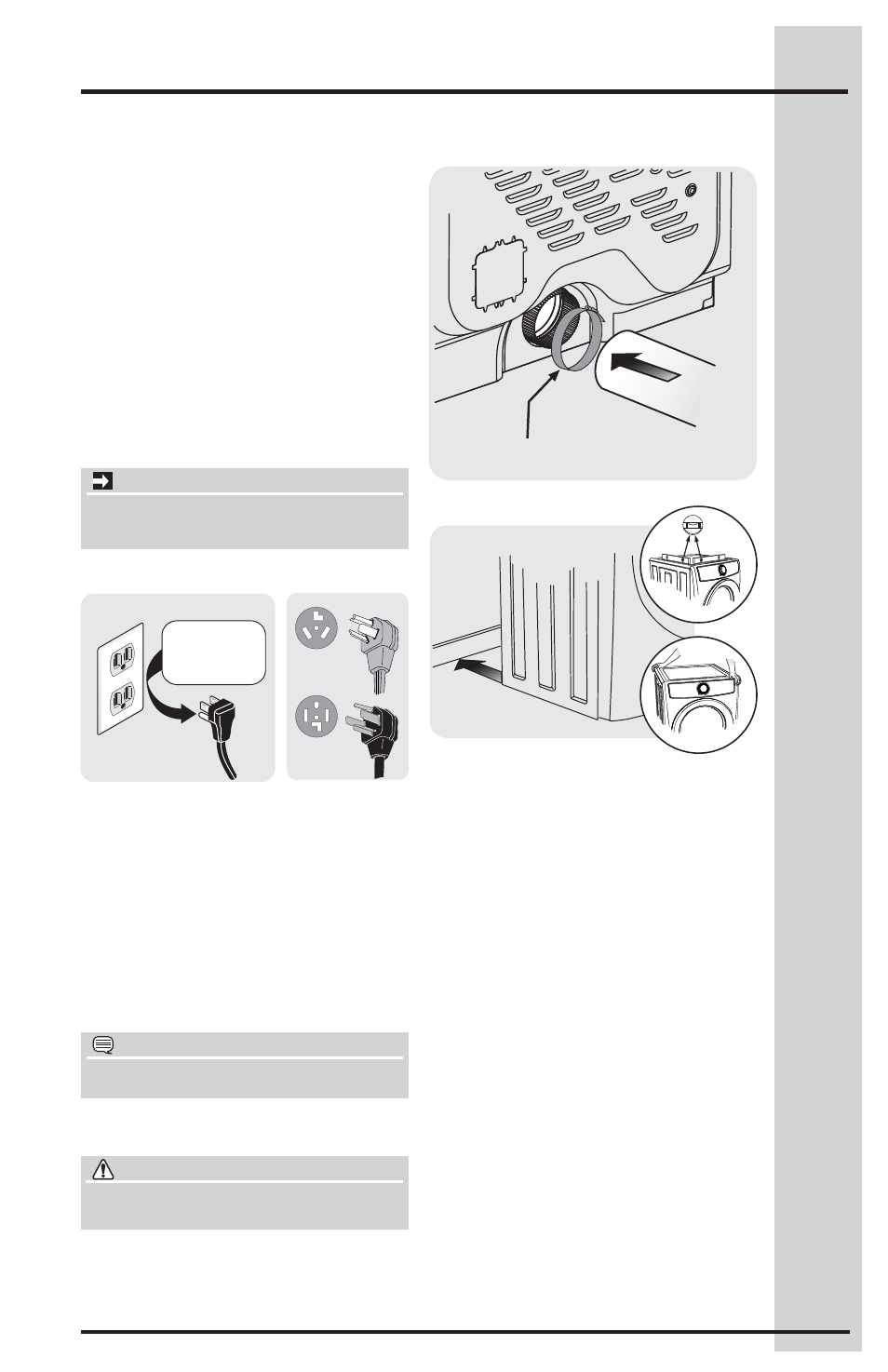

17 Installation Instructions
General installation
1. Connect the exhaust duct to the outside
exhaust system. Use of a 4” (102 mm) clamp
(item A) is recommended to connect the
dryer to the exhaust vent system. Use metal
foil tape to seal all other joints.
2. Use a carpenter’s level to level your dryer
front-to-back and side-to-side.
3. Use adjustable pliers to adjust the leveling
legs so the dryer is level front-to-rear and
side-to-side, and stable corner-to-corner.
4. Press down on alternate corners and sides
and feel for the slightest movement. Adjust
the appropriate leg(s) so the dryer sits
solidly on the fl oor on ALL four legs. Keep
the leveling leg extension at a minimum for
best performance of the dryer.
5. Plug the power cord into a grounded outlet.
A
Grounding type Grounding type
wa
wall receptacl ll receptacle
Po Power cord with wer cord with
3-prong 3-prong gr grounded plug ounded plug
Do not, Do not, under under
an any cir y circumstances, cumstances,
cut, cut, remo remove ve,
or b or bypass th ypass the
gr grounding pr ounding prong. ong.
6. Turn on the power at the circuit breaker/fuse
box.
7. Read the Use & Care Guide provided with
the dryer. It contains valuable and helpful
information that will save you time and
money.
8. If you have any questions during initial
operation, please review the “Avoid Service
Checklist” in your Use & Care Guide before
calling for service.
9. Place these instructions in a location near
the dryer for future reference.
IMPORTANT
Be sure the power is off at a circuit breaker/
fuse box before plugging the power cord into
an outlet.
NOTE
A wiring diagram and technical data sheet are
located under the dryer top panel.
CAUTION
When discarding or storing your old dryer,
remove the door.
