16 Installation Instructions

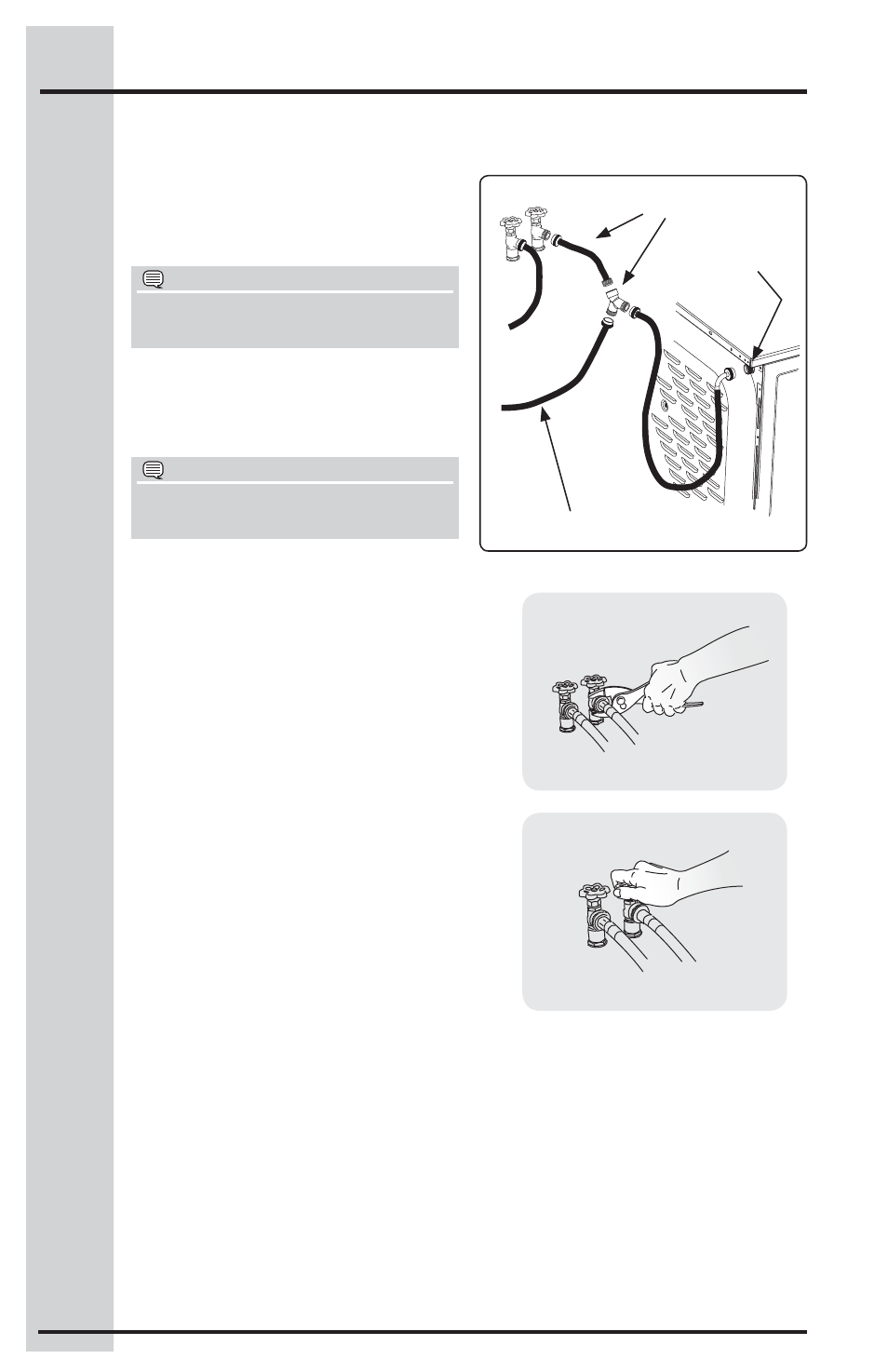

WATER INLET
ON DRYER
DIRECT CONNECTION
OR WITH EXTENSION*
COLD WATER SUPPLY
HOSE TO WASHER
5. If your installation has room for the COLD
water supply to accept the “Y” connector
directly, thread the “Y” connector to the
COLD water supply and snug it by hand;
then tighten it another 2/3 turn with pliers.
6. If there is not room to install the “Y”
connector directly, thread the short
extension hose on to the COLD water
supply and snug it by hand; then tighten it
another 2/3 turn with pliers.
Water connection, continued (Steam Model only)
NOTE
If you were able to install the “Y” connector
directly to the COLD water supply, please skip
to step 8.
NOTE
Short extension available from your local
hardware supplier. Extension hose must meet
qualifi cations for use in laundry installation.
*Laundry hose extension not included with dryer.
7. Thread the “Y” connector to the short
extension hose and snug it by hand; then
tighten it another 2/3 turn with pliers.
8. Connect the COLD inlet hose for the washer
to the “Y” connector and snug it by hand;
then tighten it another 2/3 turn with pliers.
9. Connect the straight end of the long hose
from the kit to the other outlet on the “Y”
connector and snug it by hand. Connect
the hose’s 90° coupling to the brass water
inlet on the back of the dryer and snug it by
hand. Tighten each connection of the dryer
inlet hose another 2/3 turn with pliers.
10. Turn on the water and check for leaks at all
connections.
