Electrolux 27 Inch Electic Dryer Installation Guide - Manuel

Electric Dryer
Don’t Move
White Wire
Move
White Wire White
Wire
Green
Wire
Black
or
Red
Wire
Install
U.L.-Approved Strain Relief
30 AMP 30 AMP
3
Connect to Gas or Electric
Gas Dryer
1. Apply approved thread sealant.
2. Wrench-tighten gas line.
3. Open gas valve and check for leaks with
soapy water.
Open
Close
Manual Shutoff
For detailed information, refer to
"Gas supply requirements" and
"Gas connection" in the Installation
sections of the Use & Care Guide
provided with this dryer.
For detailed information, refer to
"Electrical system requirements"
and "Electrical installation" in the
Installation sections of the Use & Care
Guide provided with this dryer.
WARNING
• Dryer must be properly grounded at all times.
• LP systems MUST use conversion kit installed by qualified technician. Improper gas installa-
tion or LP conversion could result in injury or even death.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
4
Level and Connect
1. Use adjustable pliers to adjust the leveling legs so the washer
is level front-to-rear and side-to-side, and stable corner-to-
corner
2. Connect power.
IMPORTANT
Please review the “Troubleshooting” section in your Use & Care Guide before calling for service.
For detailed information refer to the Installation sections of the Use & Care
Guide provided with this dryer.
Exhaust system must be vented outside with approved vent hood.
NO screen or grate of any
mesh size is allowed to
cover the exhaust opening.
• Use only 4 inch rigid or
semi-rigid metal ducting.
• Clean lint from duct system.
• Use only metal foil tape to
connect ducts (no screws).
Number of 90° tur
ns
MAXIMUM LENGTH*
of 4” (10.2 cm) Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4” (10.2 cm) louvered 2.5” (6.35 cm)
0 125 ft. (38 m) 110 ft. (33.5 m)
1 115 ft. (35 m) 100 ft. (30.5 m)
2 105 ft. (32 m) 90 ft. (27.5 m)
3 95 ft. (29 m) 80 ft. (24.5 m)
4 85 ft. (26 m) 70 ft. (21.5 m)
Correct
Incorrect
* DO NOT exceed 8 ft. (2.4m) total duct length if installing semi-rigid venting.
DO NOT install flexible plastic or flexible foil ducting material.
DO NOT use screws, rivets or other fasteners that extend into the duct to assemble the exhaust
system.
For detailed information, refer to "Exhaust system requirements" and
"Clearance requirements" in the Installation sections of the Use & Care Guide
provided with this dryer.
• Use 4" (10.2 cm) clamp to
connect dryer & exhaust
system.
• Use 90° quick-turn elbow to
vent left or right from dryer.
2
Connect Water Line (Steam Dryer Only)
If this is not a steam dryer, skip to section 3.
1. Inspect all hoses for rubber washers prior to use.
2. Run water from cold outlet to clear contaminants.
3. Connect the dryer Assembly Hose Kit hose
extensions from the cold supply to the “Y”
connector, then from the “Y” connector to the
water inlet on the dryer.
4. Attach the washer cold water supply line to the
“Y” connector.
5. Tighten all connections by hand, then tighten
additional 2/3 turn with pliers.
6. Turn on water and check for leaks.
Short Hose
Water Inlet
on Dryer
Cold Water Supply
Hose to Washer
“Y” Connector
For detailed information, refer to "Water connection (Steam Model only)" in the
Installation sections of the Use & Care Guide provided with this dryer.
Assembly Hose Kit P/N 5304495002 is not included
with purchase of steam model and MUST be
purchased separately.
WARNING - RISK OF FIRE
Read all the following instructions before installing and using this appliance.
• Ensure the entire dryer exhaust system is clean and free of lint and debris prior to
the installation of your new dryer. The entire exhaust system should be inspected
and cleaned a minimum of every 18 months with normal usage. Failure to comply
with cleaning your exhaust system will increase the RISK of FIRE.
• DO NOT install a clothes dryer with flexible plastic or flexible foil venting material. Flexible
venting materials are known to collapse, be easily crushed and trap lint. These conditions will
obstruct clothes dryer airflow and increase the risk of fire.
• DO NOT screen the exhaust ends of the vent system, or use any screws, rivets or other fas-
teners that extend into the duct to assemble the exhaust system. NO screen or grate of any
mesh size is allowed to cover the outdoor exhaust opening.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Clothes dryer installation and service must be performed by a qualified installer, service agen-
cy or the gas supplier.
• The electrical service to the dryer must conform with local codes and ordinances and the
latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian
Electrical Code CSA C22.1 part 1.
• The gas service to the dryer must conform with local codes and ordinances and the latest
edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54, or in Canada, the Natural Gas
and Propane Installation Code, CSA B149.1. An individual manual shutoff valve must be in-
stalled within 6 ft. (1.83 m) of the dryer in accordance with the National Fuel Gas Code, ANSI
Z223.1/NFPA 54.
• DO NOT stack a dryer on top of washer already installed on pedestal. DO NOT stack washer
on top of dryer. DO NOT stack washer on top of another washer.
• The dryer is designed under ANSI Z21.5.1/CSA 7.1 or UL 2158 - CAN/CSA C22.2 No. 112
(latest editions) for HOME USE only. This dryer is not recommended for commercial applica-
tions such as restaurants, beauty salons, etc.
• Destroy the carton and plastic bags after the dryer is unpacked. Children might use them to
play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers
causing suffocation. Place all materials in a garbage container or make materials inaccessible
to children.
• To reduce the risk of severe injury or death, follow all installation instructions in this manual.
The instructions in this manual and all other literature included with this dryer are not meant to
cover every possible condition and situation that may occur. Good safe practice and caution
MUST be applied when installing, operating and maintaining any appliance.
Exhaust Venting
ˆ Free-flowing, clear of lint buildup
ˆ 4 inch (102 mm) rigid metal or
semi-rigid metal transition ducting
of minimal length and turns
ˆ NO foil or plastic venting material
ˆ Approved vent hood exhausted to outdoors
Leveling
ˆ Dryer is level, side-to-side and front-to-back
ˆ Cabinet is sitting solid on all corners
Gas Supply (Gas Dryer)
ˆ Manual shutoff valve present in supply
ˆ All connections sealed with approved sealer
and wrench tight
ˆ Conversion kit for LP GAS system
ˆ Gas supply turned on
ˆ No leaks present at all connections - check
with soapy water, NEVER check with flame
Water Hookup (Select Models)
ˆ Inspect hoses for proper placement of
rubber washers
ˆ Water supply is turned on
ˆ Check for leaks
ˆ Steam model dryers require use of
ASSEMBLY HOSE KIT #5304495002
(not included) and must be purchased
separately
240v Electric Supply
(Electric Dryer)
ˆ Approved NEMA 10-30 or 14-30 service
cord with all screws tight on terminal block
ˆ Approved strain relief installed
ˆ Terminal access cover installed before
initial operation
Door Reversal
ˆ Follow detailed instructions in this guide
ˆ Test hinge and latch for function
Electrical Power
ˆ House power turned on
ˆ Dryer plugged in
Final Checks
ˆ Door latches and drum tumbles when
cycle starts
ˆ Registration card sent in
5
A17468301 (1907)
For support in the U.S. call 1-877-4ELECTROLUX (1-877-435-3287) or visit www.electroluxappliances.com. For support in Canada call 1-800-265-8352 or visit www.electroluxappliances.ca.
TO INSTALLER: Leave these instructions with the customer. *Please refer to the Use & Care Guide provided with this dryer for further details.

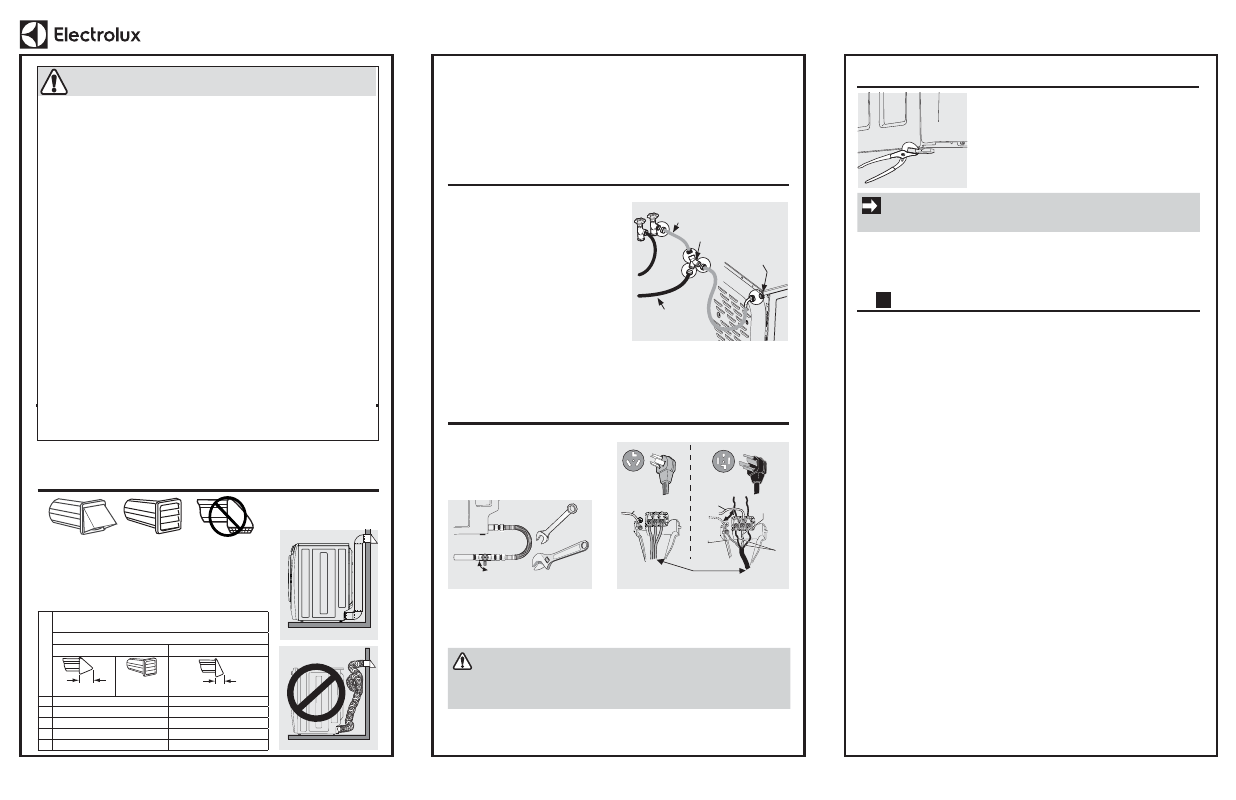

Installation* for Electrolux Front Load Dryer
1
Connect or Construct Vent Exhaust
 Installation Checklist
