3-Wire Cable from Home Power Supply - U.S.A Only
IMPORTANT: Use the 3-wire cable from home power supply
where local codes permit a 3-wire connection.
1. Connect the 2 red wires (B) together using a UL listed wire
connector.
2. Connect the green (or bare) cooktop cable wire (C) to the
white (neutral) wire (F) in the junction box using a UL listed
wire connector.
3. Connect the 2 black wires (H) together using a UL listed wire
connector.
4. Install junction box cover.
Complete Installation
1. Check that all parts are now installed. If there is an extra
part, go back through the steps to see which step was
skipped.
2. Check that you have all your tools.
3. Dispose of/recycle all packaging materials.
4. Use a mild solution of liquid household cleaner and warm
water to clean cooktop before use. Dry thoroughly with a soft
cloth. For more information, see the “Cooktop Care” section
of the Use and Care Guide.
5. Read “Cooktop Use” in the cooktop Use and Care Guide.
6. Reconnect power.
NOTE: If the cooktop does not work after turning on the power,
check that a circuit breaker has not tripped or a household fuse
has not blown. See “Troubleshooting” section in the Use and
Care Guide for further information.
If you need Assistance or Service:
Please refer the “Assistance or Service” section of the Use and
Care Guide or contact the dealer from whom you purchased
your cooktop.
H
B
C
D
E
F
G
I
A

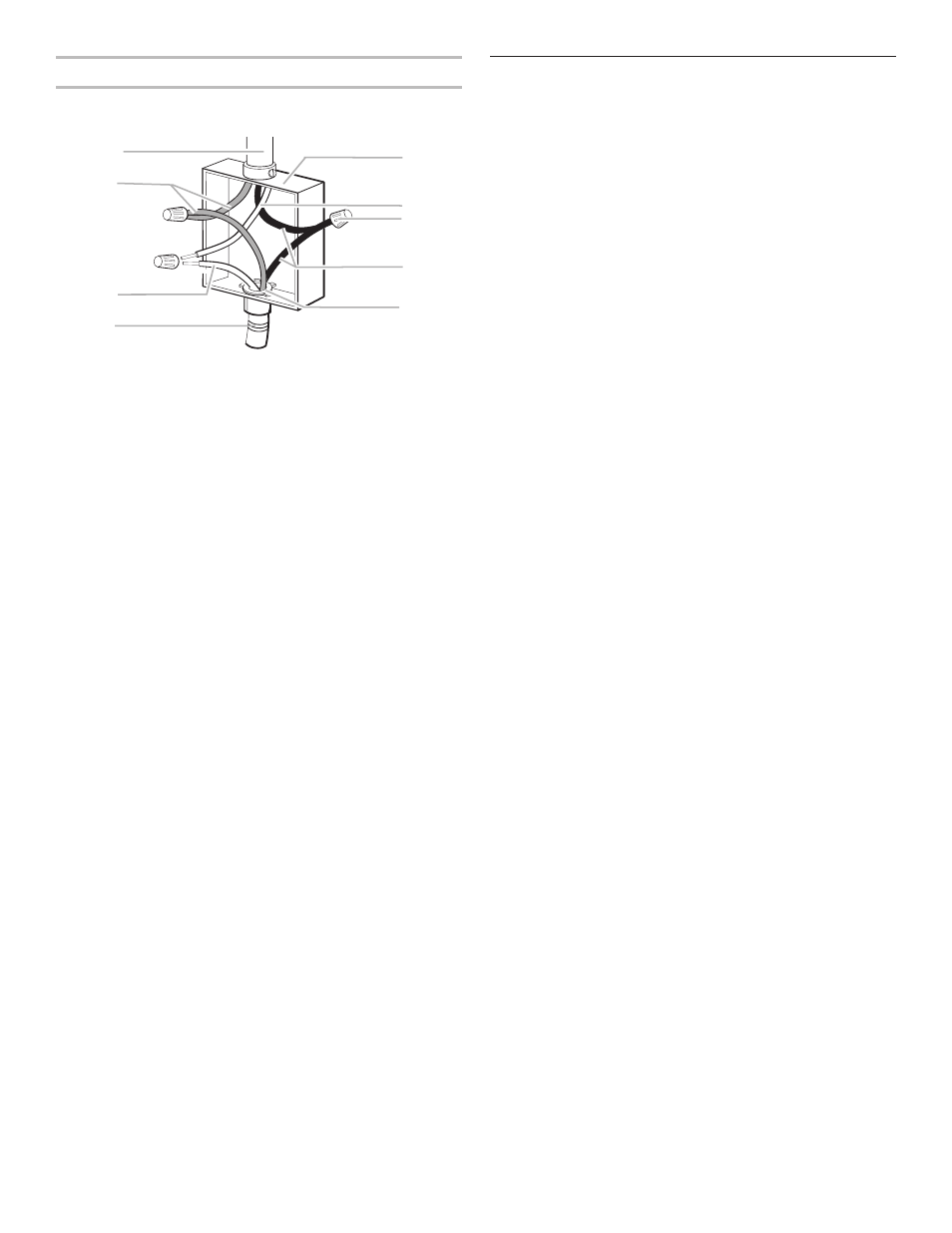

A. Cable from home power supply
B. Red wires
C. Green (or bare) ground wires
from cooktop
D. 3-wire cable from cooktop
E. Junction box
F. White wire (from home power
supply)
G. UL listed wire connector
H. Black wires
I. UL listed or CSA approved
conduit connector with wire
bushing
