INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools Needed
Parts Supplied
■
Brackets (2)
■
#6 x 3/4" (1.9 cm) clamping screws (4)
■
#8 x 3/8" (9.5 mm) sheet metal screws (6 screws for
24" [65 cm] models, and 7 screws for 30" [78.2 cm] and
36" [92.2 cm] models)
Parts Needed
■
A UL listed or CSA approved strain relief
■
UL listed wire connectors
■
A UL approved junction box or 240 V outlet
■
Cooktop Bracket Adhesive Kit Part Number W11279478
if installing the cooktop into a marble countertop. See the
“Assistance or Service” section of the Use and Care Guide
for information on ordering.
Check local codes. Check existing electrical supply. See
“Electrical Requirements”.
It is recommended that all electrical connections be made by a
licensed, qualified electrical installer .
Location Requirements
Make sure you have everything needed for correct installation. It
is the responsibility of the installer to comply with the installation
clearances specified in these instructions.
IMPORTANT: Observe all governing codes and ordinances.
When installing cooktop, use minimum dimensions given.
■
To eliminate the risk of bur ns or fir e by reaching over the
heated surface units, cabinet storage space located above
the surface units should be avoided. If cabinet storage is to
be provided, the risk can be reduced by installing a range
hood that projects horizontally a minimum of 5" (12.7 cm)
beyond the bottom of the cabinets.
■
It is the installer’s responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located on the underside of the
cooktop burner box.

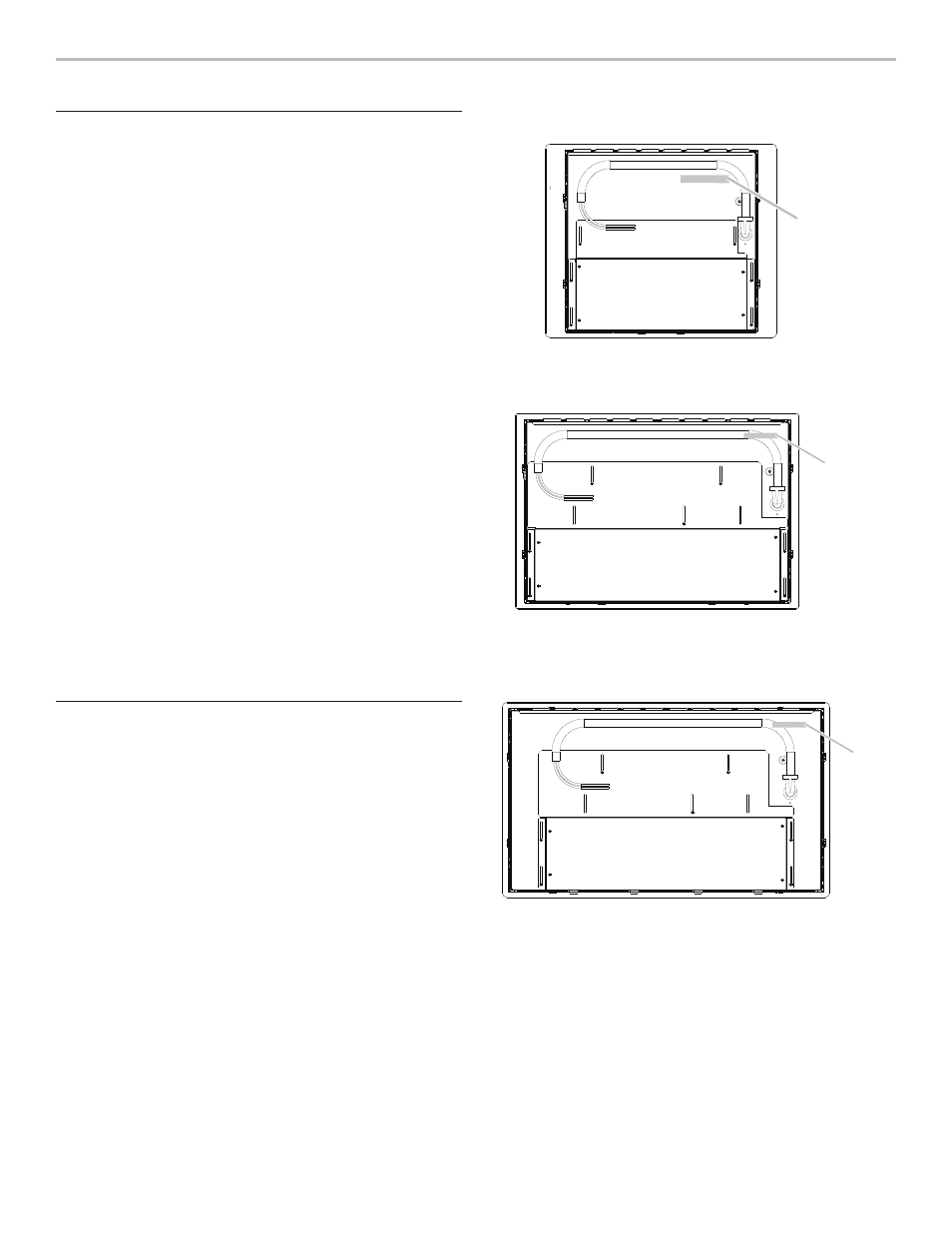

24" (65 cm) cooktop model/serial rating plate location
30" (78.2 cm) cooktop model/serial rating plate location
36" (92.2 cm) cooktop model/serial rating plate location
■
Check the cooktop base for an approved installation label.
Verify approved oven model numbers that can be installed
with your cooktop model number . If you do not find this
label, your cooktop may not be approved for use over an
under counter built-in oven. Contact your dealer to confirm
that your cooktop is approved.
■
Ovens approved for this type of installation will have an
approval label located on the top of the oven. If you do
not find this label, contact your dealer to confirm that your
oven is approved. Refer to oven manufacturer’s Installation
Instructions for approval for built-in undercounter use and
proper cutout dimensions.
A
A. Model/serial rating plate location
A
A
A. Model/serial rating plate location
■
Tape measure
■
Flat-blade screwdriver
■
Phillips head screwdriver
■
Hand or electric drill
■
Level
■
Marker or pencil
■
Pliers
■
1/4" drill bit
■
Jigsaw
A. Model/serial rating plate location
