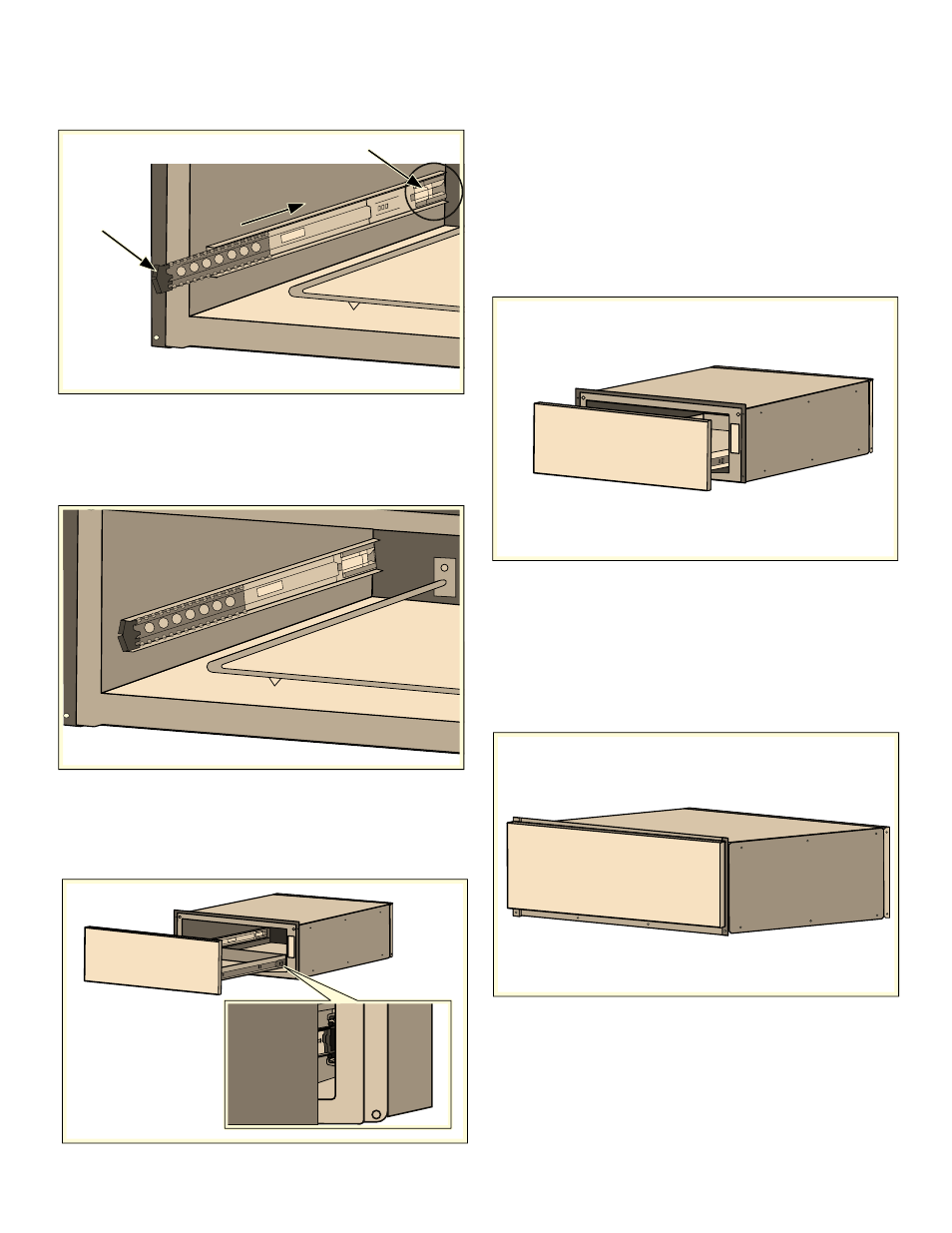

1. With the drawer removed, set the slide inner rail to the
drawer locked position by pushing the slide inner rail
toward the rear of the housing until it locks in place.
Note: A moderate force pushing on the black plastic
ball carrier locking mechanism is required to set the
slide to the drawer locked position. The drawer is
locked when it remains in place and does not spring
back to the open position.
2. Position the drawer assembly in front of the housing
assembly and align the rail (plastic rail tip) to the slide
ball carrier assembly. Keeping the drawer assembly
level and square to the housing, gently insert the
drawer to the housing assembly.
Notes
▯
A slight side-to-side wiggle motion may be required
to properly get the ball bearings to accurately align.
▯
Remember: You are attempting to align two sets of
ball bearings at this point. If more than a moderate
force is required to insert the drawer at this time,
remove the drawer and repeat the installation
procedure to this point.
3. Continue to insert the drawer keeping the drawer level
and square to the housing until a slight increase in
resistance is felt at the approximate position shown
below.
4MJEF*OOFS3BJM
-PDLJOH.FDIBOJTN
4MJEF*OOFS3BJMJTJOMPDLFEQPTJUJPO
NOTICES
▯
At this position, a slight increase in closure force is
required with several small increments of force
applied to the drawer to accurately align and set the
drawer for proper operation.
▯
An audible “click” should be heard when the drawer
is properly closed causing the drawer to lock in the
closed position.
