English 10
Connect Flexible Conduit
The range can also be connected via flexible conduit. If
using this method, always use the lugs supplied.
Note: In Canada, the range is shipped from the factory with
the range cord already installed. Continue to “ Complete the
installation ”. For installations other than those in Canada,
connect the flexible conduit at the terminal block.

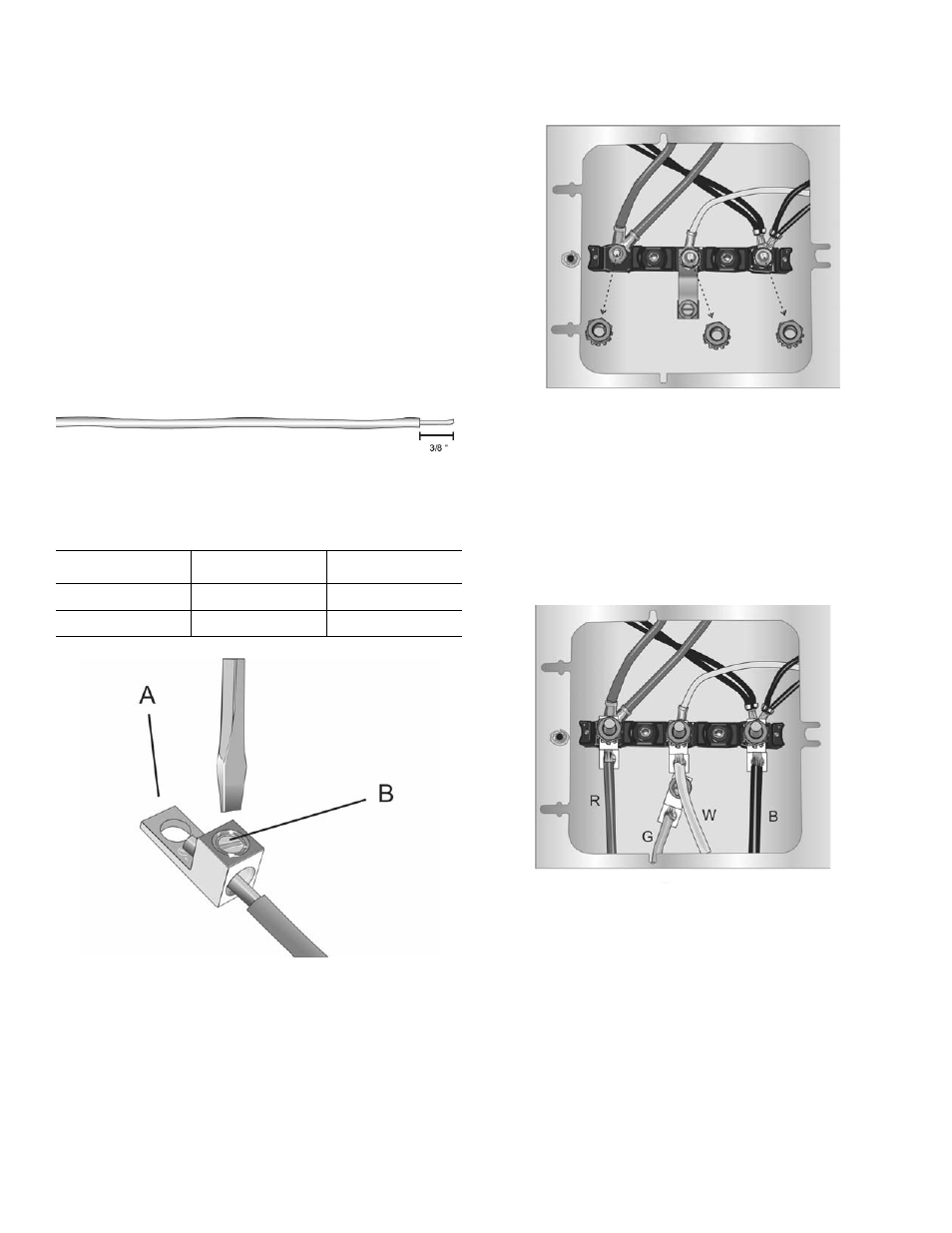

Terminal Lug/Wire Connection
In each instance where a wire is to be attached to a termi-
nal lug, perform the following steps:
1. Strip 3/8” (9.5 mm) of insulation from the end of the
wire.
2. Insert the stripped end of the wire into the terminal lug
(see A in the figure below) and then tighten each
clamping screw (see B in the figure below) with the
appropriate torque (see table).
Four-wire Flexible Conduit Connection
1. Disconnect electrical power at the breaker box.
2. Remove the terminal block cover to expose the
terminal block.
3. Remove the top nut (has an attached locking washer)
from each terminal post.
Note: DO NOT remove the second nut/washer on each
post. These must stay in place to anchor the internal wiring
attached to the terminal block.
4. Remove the green grounding screw from the lower end
of the grounding strap.
5.
Remove the grounding strap from the center post on
the terminal block. The strap will not be needed with
the flexible conduit electric installation. Remove it from
the unit.
6. Attach the insulated grounding wire (G) to a terminal
lug (packaged with this manual) and secure the
terminal lug to the grounding hole with the green
grounding screw. Tighten the screw firmly, but do not
overtighten.
7. Attach the red wire (R) to a terminal lug and place the
terminal lug onto the left post. Replace the nut/washer
on the post and tighten to 20 in/lbs. (50.8 cm) of torque.
8. Attach the black wire (B) to a terminal lug and place the
terminal lug onto the right post. Replace the nut/washer
on the post and tighten to 20 in/lbs. (50.8 cm) of torque.
Wire Gauge Torque (in/lbs) Torque (Nm)
6 35 3.95
8 25 2.82
