Removing the Warming Drawer
9 CAUTION
To prevent burns, do not remove drawer while hot.
Be sure the drawer is empty before removing.
English 15

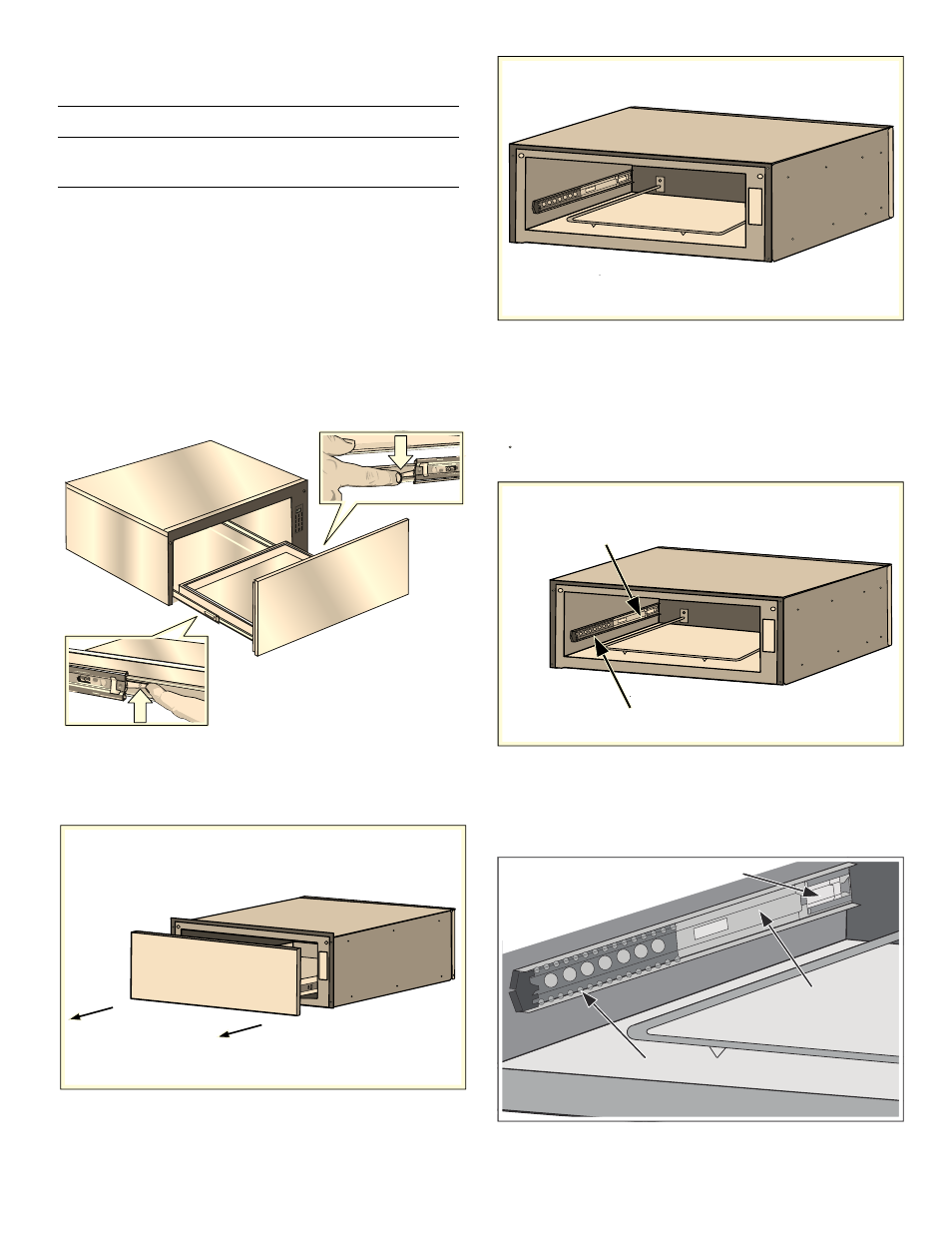

Removing Drawer from Housing
NOTICE: The following is the manufacturer’s
recommendations for removing and installing the drawer
to minimize the risk of damage to the PTO mechanism.
1. Remove the drawer from the drawer housing.
▯
Pull drawer to fully open position.
▯
Press down right drawer release lever.
▯
Lift up left drawer release lever.
▯
Firmly pull the drawer straight out.
▯
Retract cabinet rails while drawer is removed.
2. Grasp both sides of the drawer and pulling straight
and level, carefully remove the drawer housing. This
step may require light to moderate force to completely
remove drawer.
3. Install or service (clean) housing with drawer removed.
-08
)*() @
.&%
130 0'
0/0 ''
Installing Drawer to Housing
The slides mounted to each side of the housing wall
have two moving components, an inner rail and a ball
bearing carrier which need to be in the proper orientation
for accurate installation and alignment.
There is also a visible locking mechanism located at the
rear of each slide.
%DOO%HDULQJ&DUULHU
Note: The housing of your warming drawer should
match the image below identically before starting your
installation. The ball bearing carrier should be locked in
to the inner rail’s black plastic rail tip at the front of the
inner rail.
6OLGH,QQHU5DLO
/RFNLQJ0HFKDQLVP
%DOO%HDULQJ&DUULHU
6OLGH,QQHU5DLO
