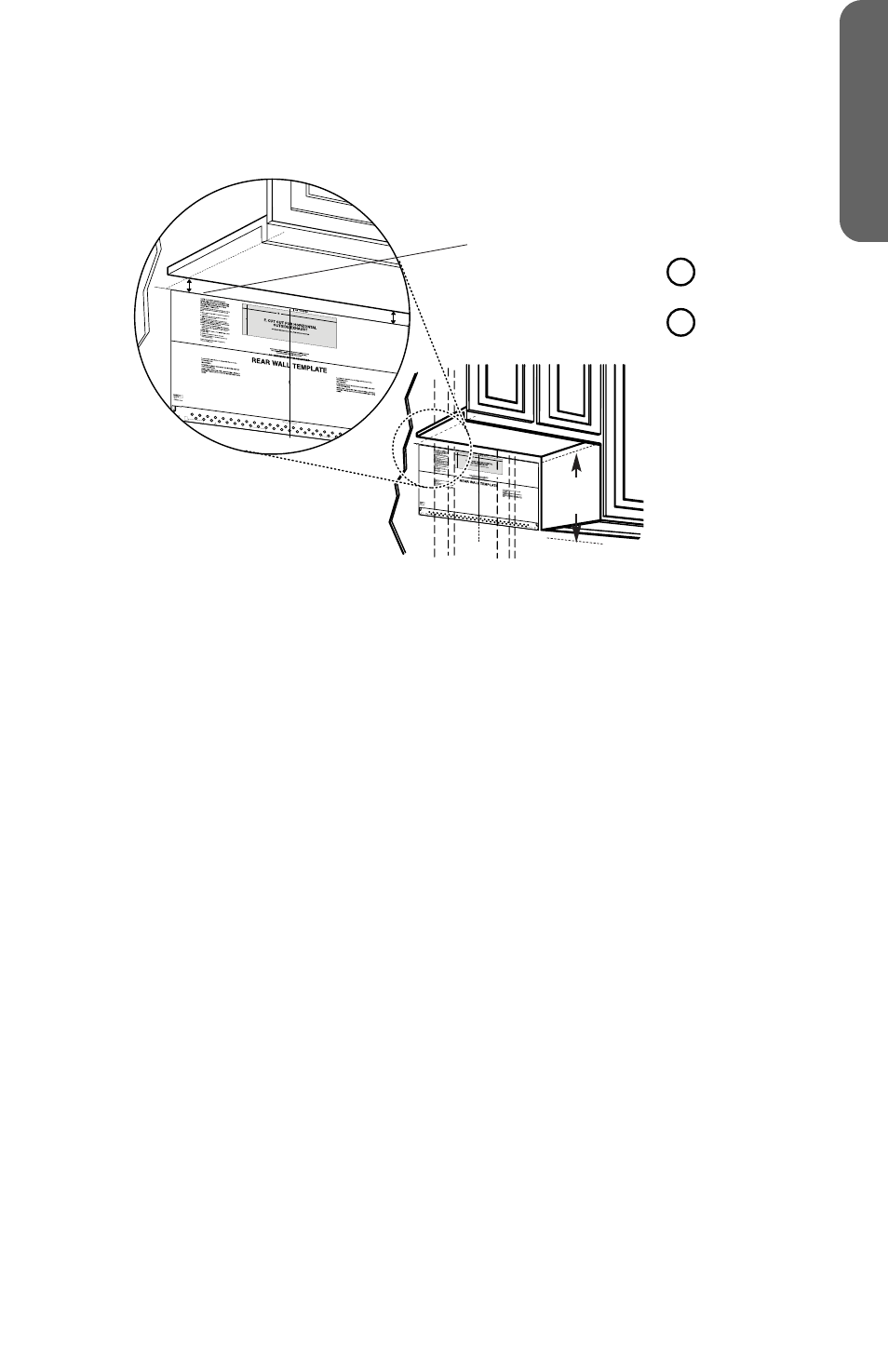

1. Measure the inside depth of the front overhang.
2. Draw a horizontal line on the back wall that is the same distance below the
cabinet bottom as the depth of the front overhang.
a
b
16½"
(41.9 cm)
A Center
Line
B
Draw a
line on
the back
wall equal
to the
depth of
the front
overhang
3. Draw a vertical line on the wall at the center of the 24" (61 cm) wide opening.
4. Place the Mounting Plate/Rear Wall Template onto the wall so that the
centerline of the template is aligned with the center line, and the top of the
template is the same distance below the cabinet bottom as the depth of the
front overhang. Tape the template in this position.
STEP 4 - DRILL HOLES FOR MOUNTING MICROWAVE
OVEN
IMPORTANT: At LEAST one wood screw mounted firmly in a stud must be
used to support the weight of the microwave.
1. Draw a horizontal line on the wall marking the bottom of the Rear Wall
Template.
2. Locate holes A and B inside the Mounting Plate Area indicated on the rear wall
template.
3. Place the mounting plate on top of the rear wall template centered in the
Mounting Plate Area so that the holes on the mounting plate align with the
holes on the template.
4. Mark the wall through holes A and B.
IMPORTANT: If neither Hole A nor Hole B aligns with a stud, locate a stud
within the mounting plate area and mark a third hole that aligns with the
stud.
5. Remove the mounting plate and set it aside. Drill holes in the marked locations.
NOTE: A wood screw must be used when installing into a wood stud.
•
Drill a ⁵⁄₈" hole to use a toggle bolt
•
Drill a ³⁄₁₆" hole to use a wood screw.
6. DO NOT INSTALL THE MOUNTING PLATE AT THIS TIME.
