SMART FADE™ Chapter 4 : STARTING
PAGE 9
Chapter 4 : STARTING

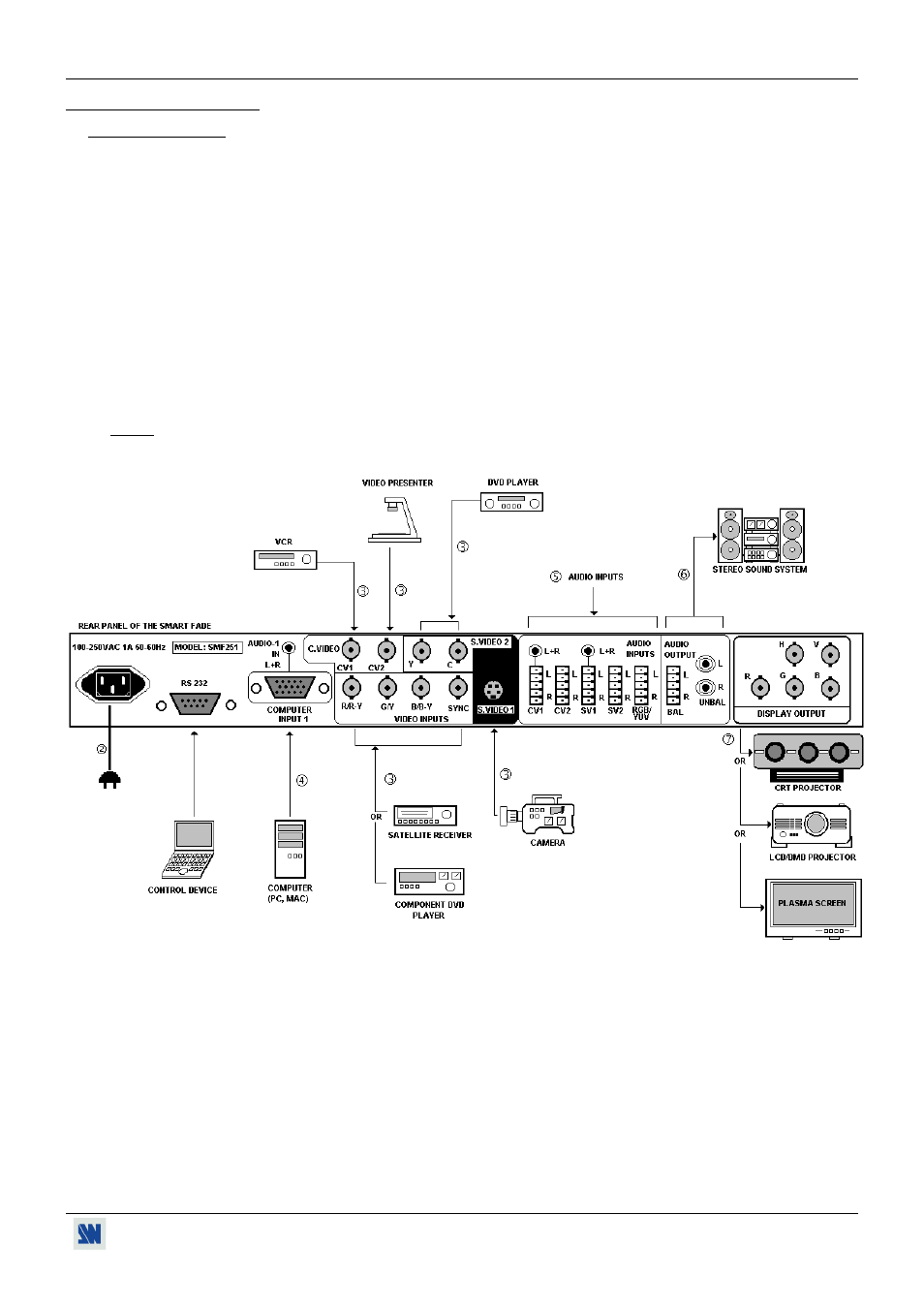

4-1. CONNECTIONS
c Turn OFF all of your equipment before connecting.
d Connect the AC Power supply cord to the SMART FADE ™ and to an AC power outlet.
e Connect your video sources (VCR, DVD, camera, laser disc, ...) to the C.V1, C.V2, S.VIDEO 1, S.VIDEO 2 and
RGB/S &COMPONENT (R-Y, Y, B-Y) inputs.
f Connect your main computer source to the "COMPUTER INPUT 1" and your second computer source to
"COMPUTER INPUT 2" (front panel).
g Connect all of your audio sources to the corresponding AUDIO INPUTS.
h Connect the audio output to your sound system.
i Connect the "DISPLAY OUTPUT" of the SMART FADE ™ to the DATA INPUT of your display device (data
projector, plasma screen,...).
j Turn ON all of your input sources, the SMART FADE ™ (front panel switch) and then your display device.
NOTE: For switching operation please see Chapter 5 : OPERATING MODE
