SMART FADE™ Chapter 3 : TECHNICAL DESCRIPTION
PAGE 7
Chapter 3 : TECHNICAL DESCRIPTION

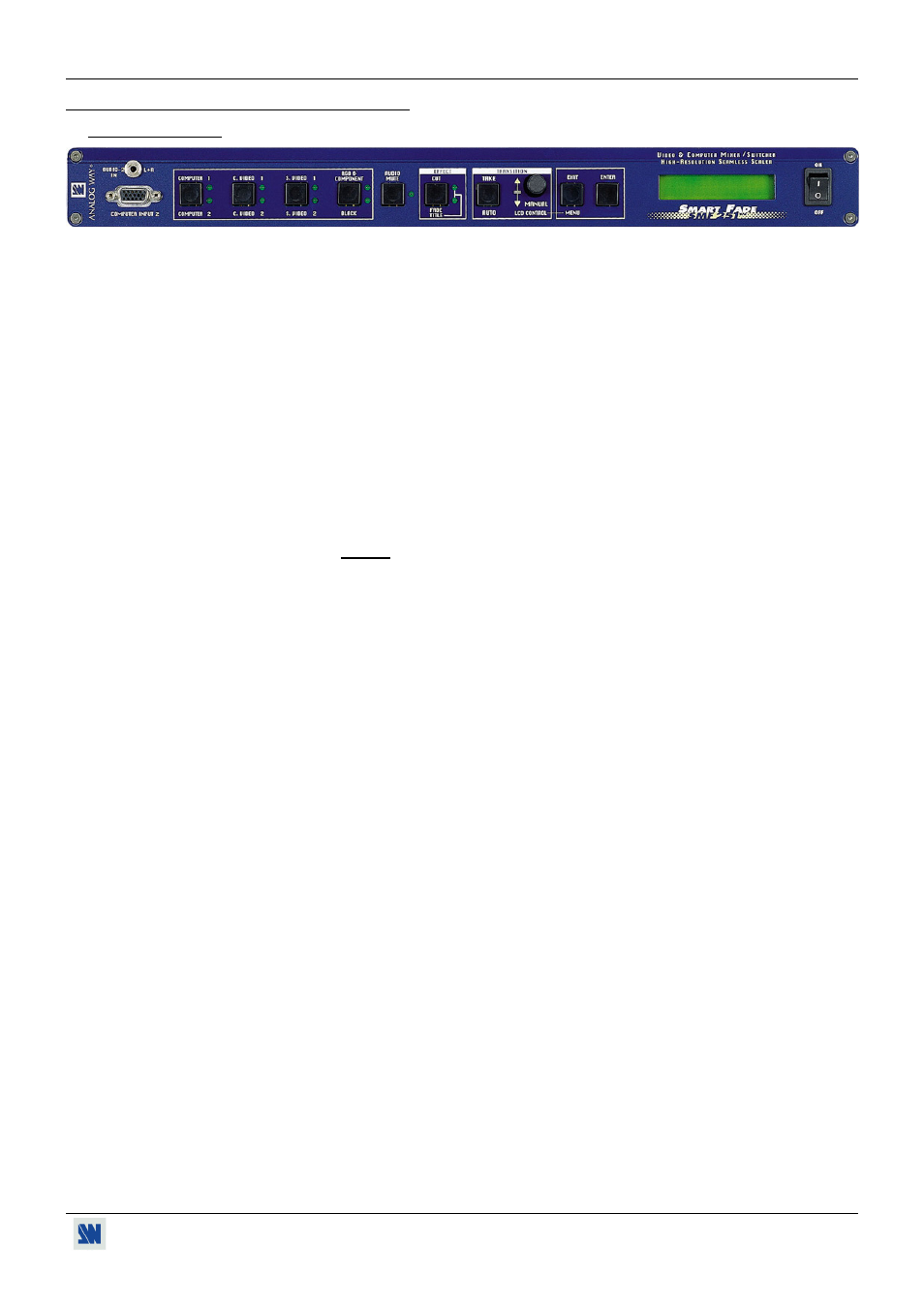

3-1. FRONT PANEL
COMPUTER INPUT 2:
COMPUTER #2 (PC, MAC, WORKSTATION) input on HD15 female connector.
AUDIO-2 IN L+R:
COMPUTER #2 audio stereo input on 3.5 JACK connector.
COMPUTER 1 / COMPUTER 2: COMPUTER 1 or COMPUTER 2 input selection.
C.VIDEO 1 / C.VIDEO 2:
C.VIDEO 1 or C.VIDEO 2 input selection.
S.VIDEO 1 / S.VIDEO 2:
S.VIDEO 1 or S.VIDEO 2 input selection.
RGB & COMPONENT / BLACK:RGB and COMPONENT (YUV) or BLACK input selection.
AUDIO MUTE:
Allows to turn OFF the audio output.
EFFECT:
Effect selection.
CUT:
Seamless transition
FADE:
Fade transition
TITLE:
Title insertion.
NOTE: The CUT effect is automatically selected when the FADE or TITLE
effects are not available.
TRANSITION:
Allows to switch the pre-selected input (blinking LED) on the displayed output
with the selected effect.
TAKE / AUTO:
Automatic transition.
MANUAL:
Manual fade transition. Allows to control manually the fade transition. It can be
activated at any time between the "referenced" Computer and a Video or Black.
LCD CONTROL
Allows to select items in the LCD menu.
EXIT MENU:
Allows to exit from an LCD menu.
ENTER:
Allows to validate a selected item.
ON / OFF:
AC power switch (O = OFF, I = ON).
