GRAPHIC SWITCHER II™
PAGE 28
Chapter 8 : UPDATING THE GRAPHIC SWITCHER II ™
The GRAPHIC SWITCHER II ™ can be update thanks a COMPUTER (PC) via its REMOTE (RS-232) connector.

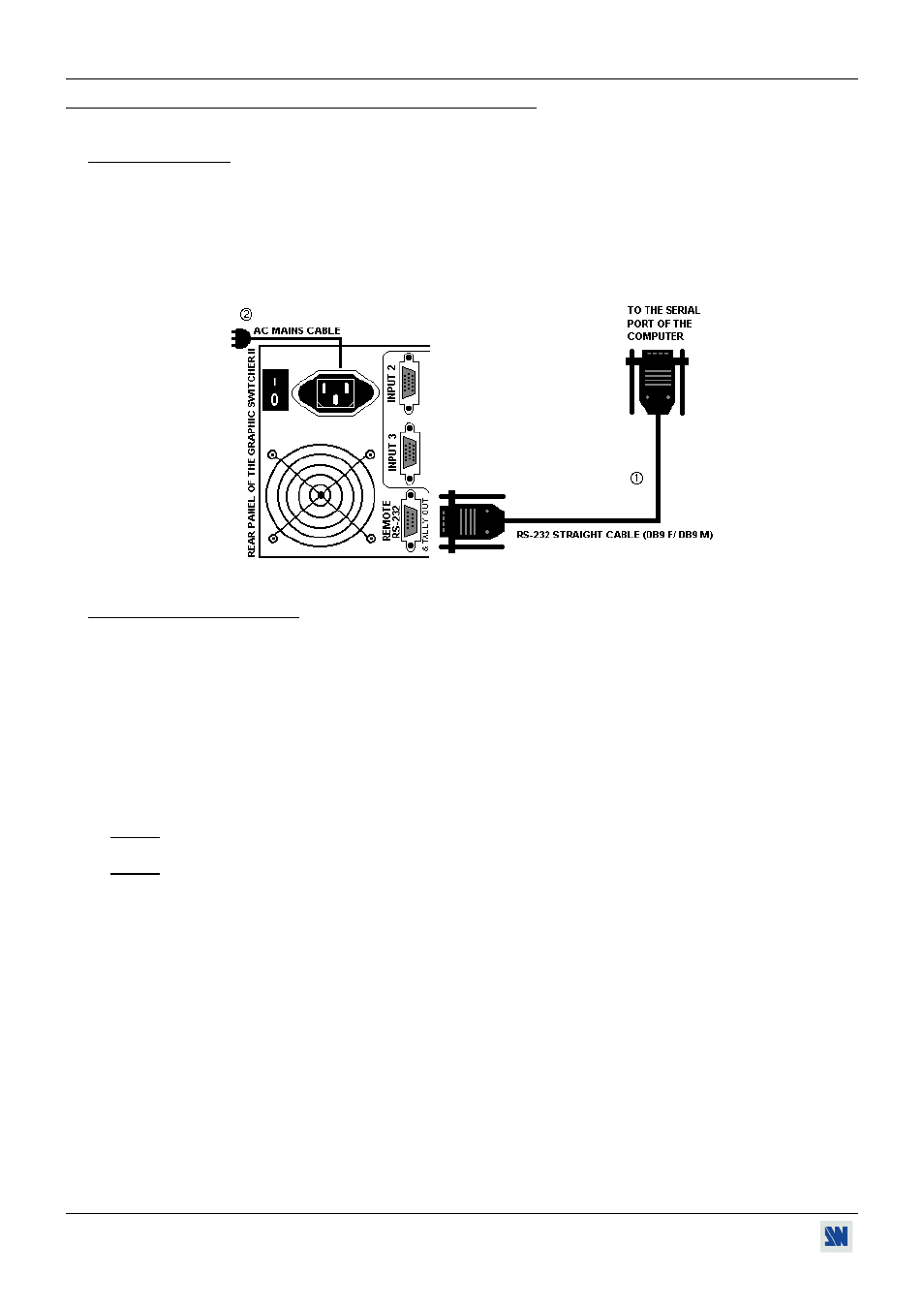

8-1. CONNECTIONS:
c Connect the "REMOTE RS-232 & TALLY OUT" connector of the GRAPHIC SWITCHER II ™ to the SERIAL port
of your COMPUTER with a DB9 M/F straight cable.
d Connect the GRAPHIC SWITCHER II ™ to an AC power outlet.
e Switch OFF the GRAPHIC SWITCHER II ™ (REAR PANEL SWITCH = O).
8-2. UPDATE INSTRUCTIONS:
c Open the file "Analog way GSW2811R updater" (in start/Program/ANALOG WAY/GSW2811R).
d Click on "START" on the SOFTWARE.
e Press the ENTER button of the GRAPHIC SWITCHER II ™ (FRONT PANEL), and SWITCH it ON simultaneously
(REAR PANEL SWITCH = I ). All front panel keys switch ON and OFF, the LCD screen displays Downloading,
and the update will start. Then you can release the ENTER button.
f When the software displays "Program operation completed", SWITCH OFF and ON the GRAPHIC SWITCHER
II ™ with the REAR PANEL SWITCH.
g Click on the "Quit" button to close the update software.
NOTE: YOUR GRAPHIC SWITCHER II ™ IS NOW READY TO WORK.
NOTE: THE UPDATER FILES ARE AVAILABLE ON OUR WEB SITE: www.analogway.com
