en-us Installation requirements
10
(152 mm) should be approved by the local codes and/or
by the local authority having jurisdiction. There is a possi-
bility to discolor the back wall under certain cooking
conditions.

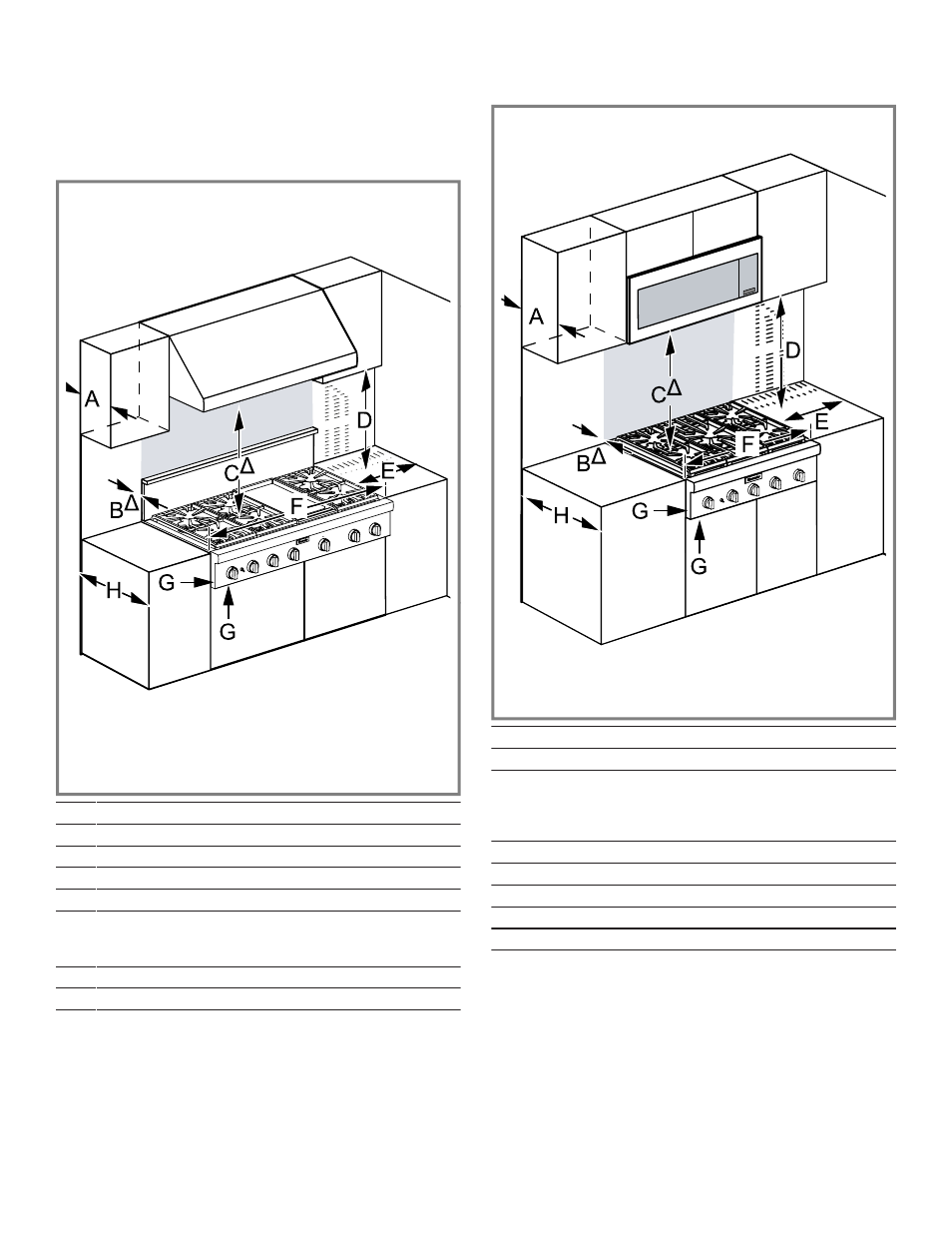

Cabinet clearance requirements with low
backguard (purchased separately)
A 13" (330 mm)
B Δ 0" (0 mm)
C Δ 30" - 40" (762 mm - 1016 mm)
D 18" (457 mm)
E 5" (127 mm)
F Depending on model:
¡ 36" (914 mm)
¡ 48" (1219 mm)
G 0" (0 mm)
H 23⅞" (606 mm)
Δ as defined in the “National Fuel Gas Code” (ANSI
Z223.1, Current Edition). Clearances from non-com-
bustible materials are not part of the ANSI Z21.1 scope
and are not certified by CSA. Clearances of less than 6"
(152 mm) should be approved by the local codes and/or
by the local authority having jurisdiction. There is a possi-
bility to discolor the back wall under certain cooking
conditions.
Cabinet clearance requirements with OTR
microwave for 30" 5-burner
A 13" (330 mm)
B Δ 0" (0 mm)
C Δ min. 30" (762 mm) to non-combustible material
above the cooking surface.
Refer to OTR manufacturer's installation manual
for clearances.
D 18" (457 mm)
E 5" (127 mm)
F 30" (762 mm)
G 0" (0 mm)
H 23⅞" (606 mm)
Δ as defined in the “National Fuel Gas Code” (ANSI
Z223.1, Current Edition). Clearances from non-com-
bustible materials are not part of the ANSI Z21.1 scope
and are not certified by CSA. Clearances of less than 6"
(152 mm) should be approved by the local codes and/or
by the local authority having jurisdiction. There is a possi-
bility to discolor the back wall under certain cooking
conditions.
