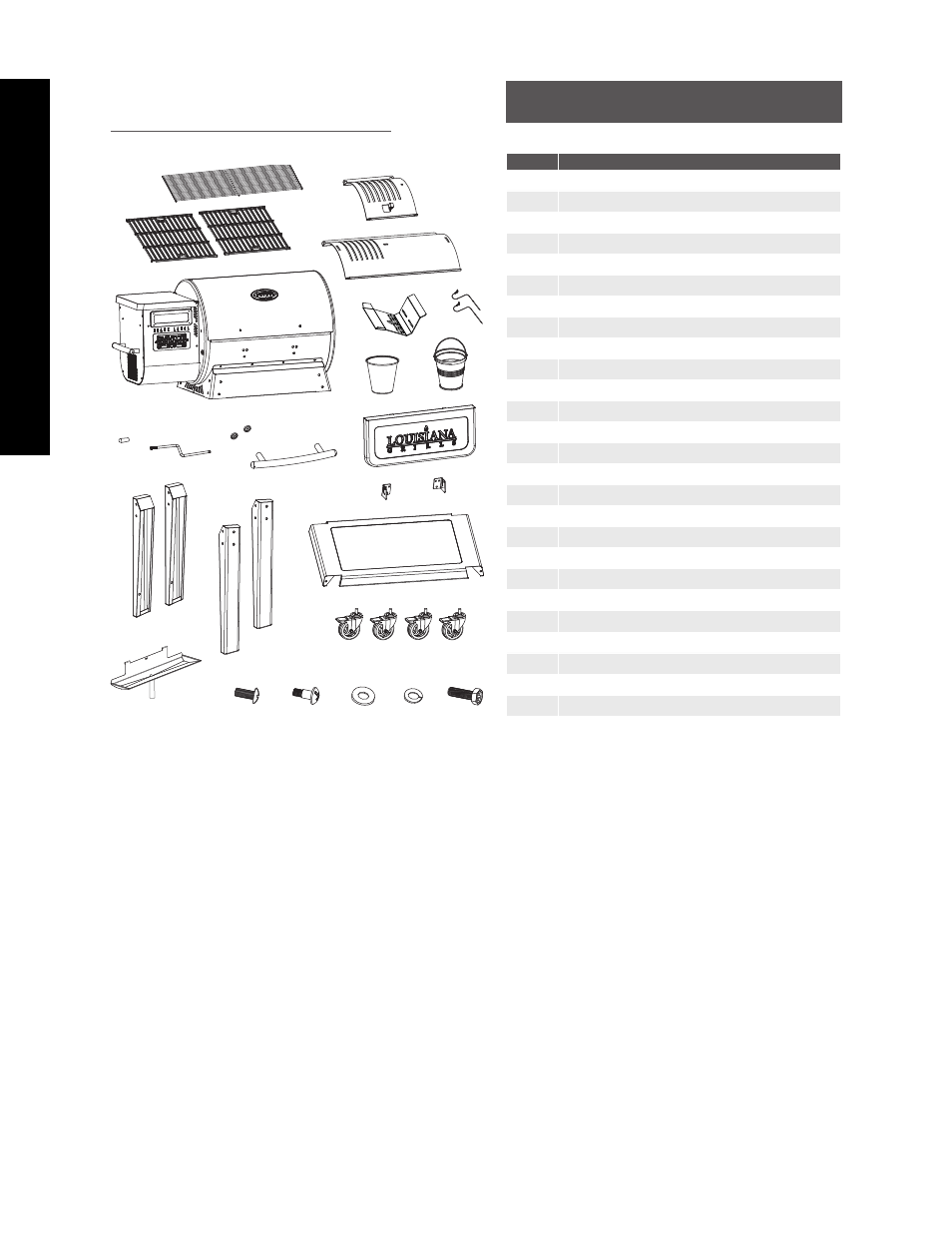

REPLACEMENT PARTS
LG0800BL
NOTE: Due to ongoing product development, parts are subject to change without notice.
1
2
3
4
5
6
9
8
10
11
12
13
14
15
16
17
7
18
19
20
PART# DESCRIPTION
1 Upper Cooking Rack (x1)
2 Cooking Grids (x2)
3 Flame Broiler Slider (x1)
4 Flame Broiler Main Plate (x1)
5 Main Barrel / Hopper Assembly (x1)
6 Burn Grate (x1)
7 Meat Probe (x2)
8 Grease Bucket Liner (x1)
9 Grease Bucket (x1)
10 Flame Broiler Adjusting Bar Handle (x1)
11 Flame Broiler Adjusting Bar (x1)
12 Lid Handle Bezel (x2)
13 Lid Handle (x1)
14 Front Shelf (x1)
15 Front Shelf Bracket / Left (x1)
16 Front Shelf Bracket / Right (x1)
17 Bottom Shelf (x1)
18 Support Leg A (x2)
19 Support Leg B (x2)
20 Locking Caster Wheel (x4)
21 Grease Trough Insert (x1)
A Screw (x30)
B Screw (x2)
C Washer (x32)
D Locking Washer (x32)
E Screw (x2)
A B C D E
