19
ENGLISH
www.louisiana-grills.com
CUS
TOMER SUPPOR
T

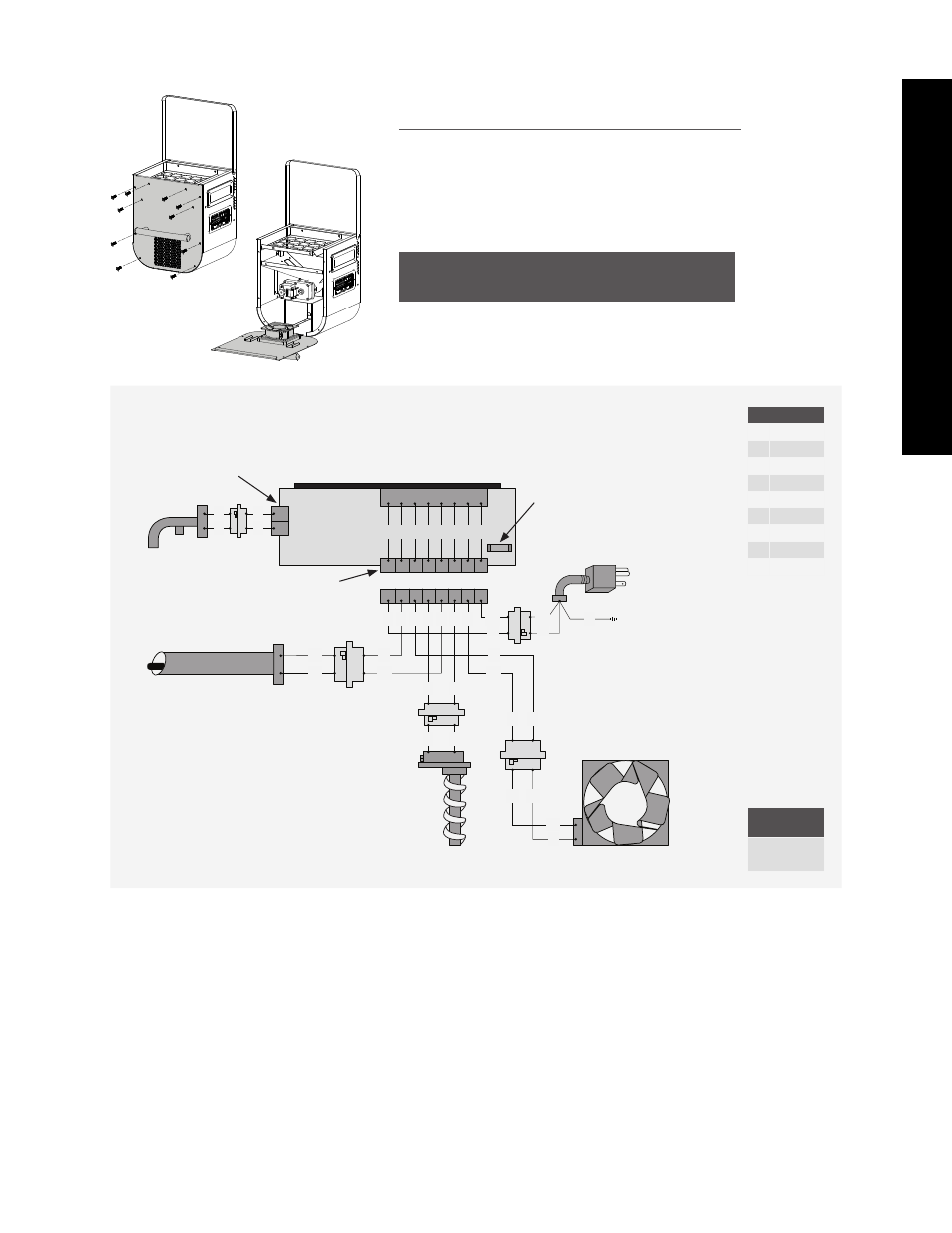

ELECTRICAL COMPONENTS
The Digital Control Board system is an intricate and valuable piece of technology. For
protection from power surges and electrical shorts, consult the wire diagram below to
ensure your power source is sufficient for the operation of the unit.
HOPPER ACCESS PANEL
Locate the ten screws on side of the hopper to access the electrical components. Once
the screws are removed, the access panel can open, hanging by the bottom hinge.
ELECTRIC REQUIREMENTS
110-120 V, 60 Hz, 375 W, 3-prong grounded plug
NOTE: Electrical components, passed by product safety testing and certification services,
comply with a testing tolerance of ± 5-10 percent.
G W
W W W
W
W
W
B W
W W Y
W Y
K K
B
B
B
B
R
R
K
W W W W Y B R K
W
K
W
K
N
N
S
S
IGNITER ASSEMBLY /
HD CARTRIDGE HEATER
110-120 V, 300 W
COMBUSTION &
COOLING FAN
110-120 V, 60 Hz,
CFM110, 1 PHASE
GROUNDED
POWER CORD
AUGER FEED SYSTEM
110-120 V, 60 Hz,
30 W, 2 RPM MOTOR
CONNECTOR BOX (8 PIN)
GROUND
CONTROL BOARD
GRILL PROBE
GRILL PROBE
CONNECTORS
FAST-BLOW FUSE
WIRE HARNESS
CONNECTOR BOX
INDEX
W white
Y yellow
B blue
R red
K black
N brown
S silver
G green
P purple
FUEL INPUT
RATING
2.3 kg/h
(5.07 lb/h)
