QUICK START GUIDE - VIO1600 TM
ANALOG WAY EDITION : 06/05
CONNECTIONS:
c Turn OFF all of your equipment before connecting.
d Connect the AC power supply cord to the VIO1600 and to an AC power outlet.
e Connect your computer & video sources to the 3 universal inputs of the VIO1600.
- If you need to connect a digital computer source, use the input #1 (DVI-I IN connector).
- If you need to connect a SDI or HDSDI video source, use the input #2 (V301-ID1 version only).
- Connect your others sources to the unused inputs.
IMPORTANT: Connect only one source by input.
f Connect your Hi-Resolution display device (projector, plasma screen...) to the HD15 or BNC connectors, or connect your video
display device (TV, VCR...) to the C.V, Y/C or RGB connectors, or connect your DVI display device to the DVI-I connector.
IMPORTANT: Connect only one display device to the output.
g Turn ON the VIO1600 (front panel switch). Then turn ON all your input sources, and then your display device.

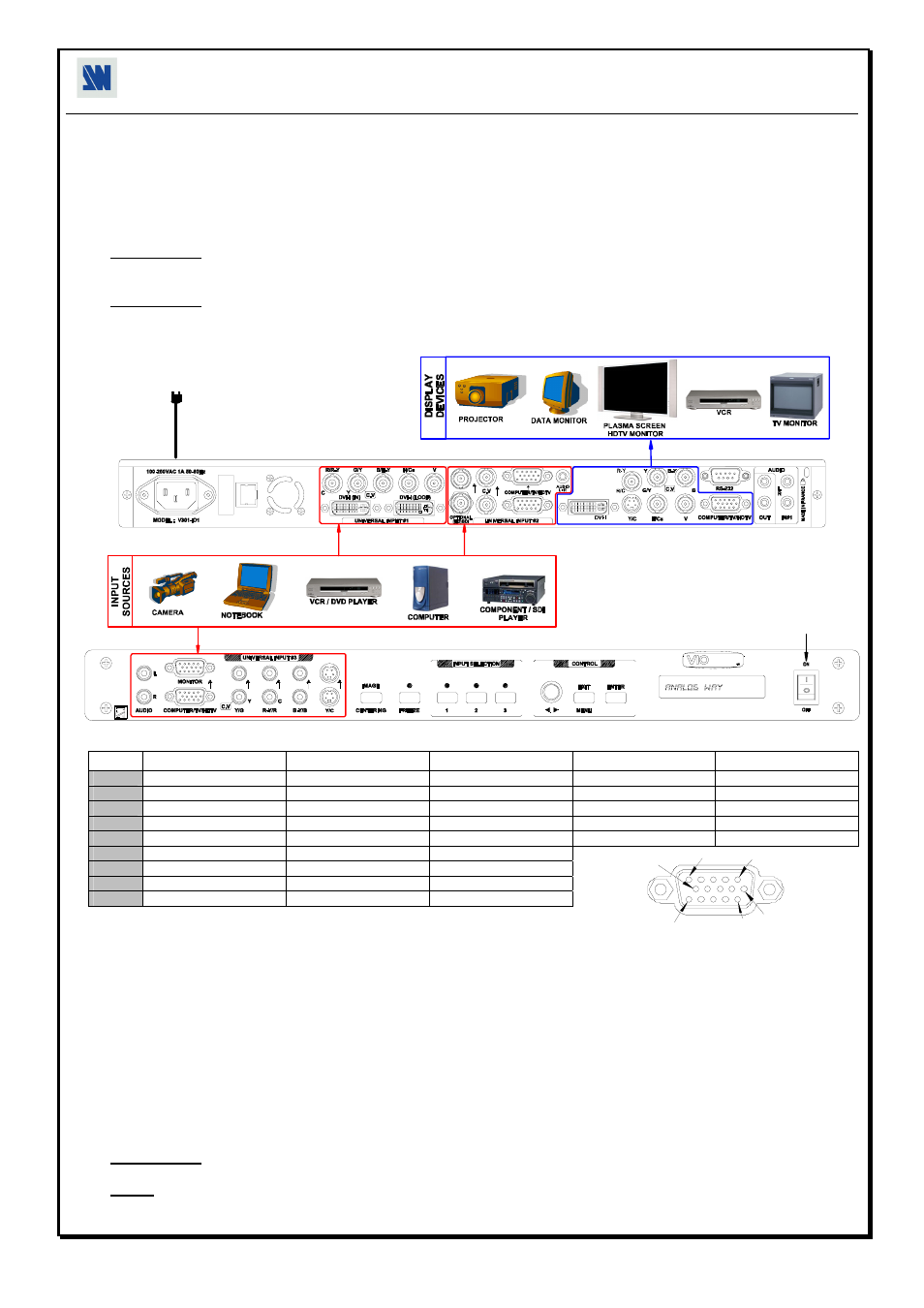

• VIO1600 connection diagram:
ANALOG W
AY
1600
Versatile Converter
S/N
IP/L
A N
4
3 3
3
2
5
OUTPUTS
• HD15 connector pin assignment (inputs #2 & #3 - input #1 with the DVI/HD15 adaptor) :
SIGNAL COMPUTER (analog) RGB/S VIDEO YUV & HDTV (analog) S.VIDEO (Y/C) COMPOSITE VIDEO
PIN 1 RED. RED. Cr / Pr. C (chrominance).
PIN 2 GREEN. GREEN. Y. Y (luminance). VIDEO (NTSC, PAL...)
PIN 3 BLUE. BLUE. Cb / Pb.
PIN 6 RED return. RED return. Cr / Pr return. C return.
PIN 7 GREEN return. GREEN return. Y return. Y return. return.
PIN 8 BLUE return. BLUE return. Cb / Pb return.
PIN 10 GND. GND.
PIN 13 H sync or C sync (S). C sync (S).
PIN 14 V sync.
SETTINGS:
c We recommend resetting the VIO1600 device to all of its default values, with the front panel display menu (CONTROL > default
value > yes) before proceeding.
d Select the input type connected to the INPUTS with the front panel display menu (INPUT > input type).
e Select the output type & format which corresponds to your display with the front panel display menu (OUTPUT > output type).
f Select one of the output rate available with the front panel display menu (OUTPUT > output rate).
g For computer source, select the output sync type with the front panel display menu (OUTPUT > output sync).
h Display the grid pattern with the front panel display menu (OUTPUT > test pattern > grid), and display a black output.
i Adjust directly the display device itself, using its position and size controls, to fill the grid pattern in full screen.
j Display the centering pattern (OUTPUT > test pattern > centering).
k For each input source connected to the VIO1600, make the following adjustments:
- Select the source you want to adjust (with the front panel "INPUT SELECTION" buttons).
- Select the aspect ratio of your input source with the front panel display menu (IMAGE > aspect ratio in).
- Press the Image Centering front panel button to automatically position the image in the Centering pattern.
IMPORTANT: For best results, display a full size bright image (no black border) to perform a centering. If necessary, correct the
adjustment with the position & size functions (IMAGE > pos settings).
NOTE: The centering function is only available for computer sources.
- If needed, make the others adjustments, available in the IMAGE menu (color, brightness…).
