VIO1600 & ULTRA VIO
PAGE 10
Chapter 2 : STARTING
2-1. CONNECTIONS
c Turn OFF all of your equipment before connecting.
d Connect the AC power supply cord to the VIO1600/ULTRA VIO and to an AC power outlet.
e Connect your computer & video sources to the 3 universal inputs of the VIO1600/ULTRA VIO.
• If you need to connect a digital computer source, use the input #1 (DVI-I IN connector).
• If you need to connect a SDI or HDSDI video source, use the input #2 (V301-ID1 & VU301-IOD1 versions only).
• Connect your others sources to the unused inputs. See following sections to have a complete description.
IMPORTANT: Connect only one source by input.
f Connect your Hi-Resolution display device (projector, plasma screen...) to the HD15 or BNC connectors, or connect
your video display device (TV, VCR...) to the C.V, Y/C or RGB connectors or connect your DVI display device to
the DVI-I connector
or connect your digital display device to the (HD)SDI BNC connector.
IMPORTANT: Connect only one display device to the output.
g Turn ON the VIO1600/ULTRA VIO (front panel switch). Then turn ON all your input sources and then your
display device.

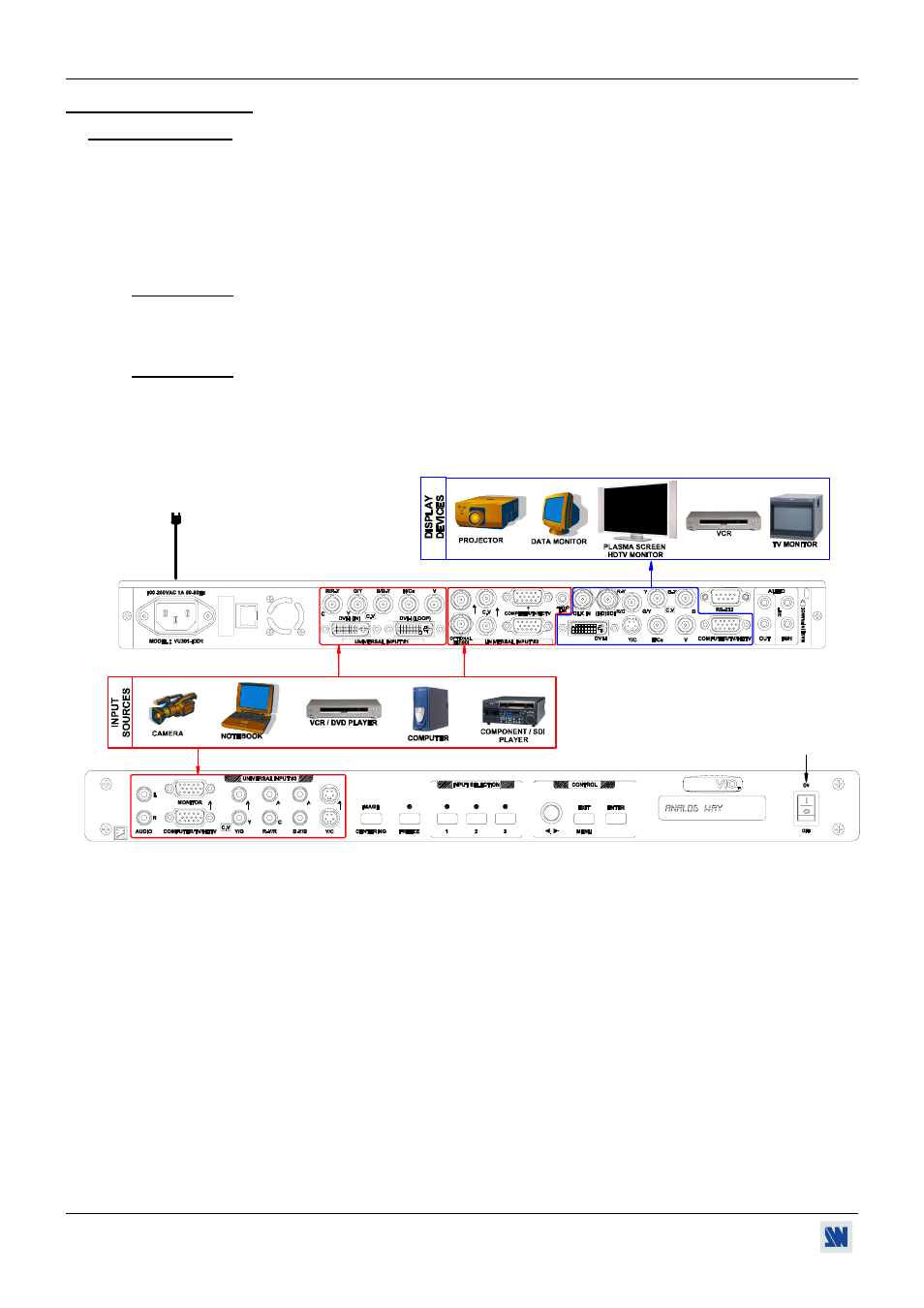

• VIO1600/ULTRA VIO connection diagram:
OUTPUTS
ANALOG W
AY
Versatile Converter
S/
N
IP/L
A N
4
3 3
3
2
5
ULTRA
