Chapter 3 : OPERATING MODE (continued) Di-VentiX™
PAGE 22
3-1. OPERATING WITH THE REMOTE CONTROL SOFTWARE (continued)
3-1-3. OPERATING IN MIXER MODE (continued)
Wipe transition:
• Click on the Effects tab.
• Assign a WIPE to one of the EFFECT buttons: Click on the arrow of an EFFECT button and select a WIPE (for
example: hor wipe from left). Select an effect opening and closing then select the duration in the Effects windows.
• Press the TAKE button to activate the transition: the PREVIEW image appears onto the MAIN display with a
wipe transition.

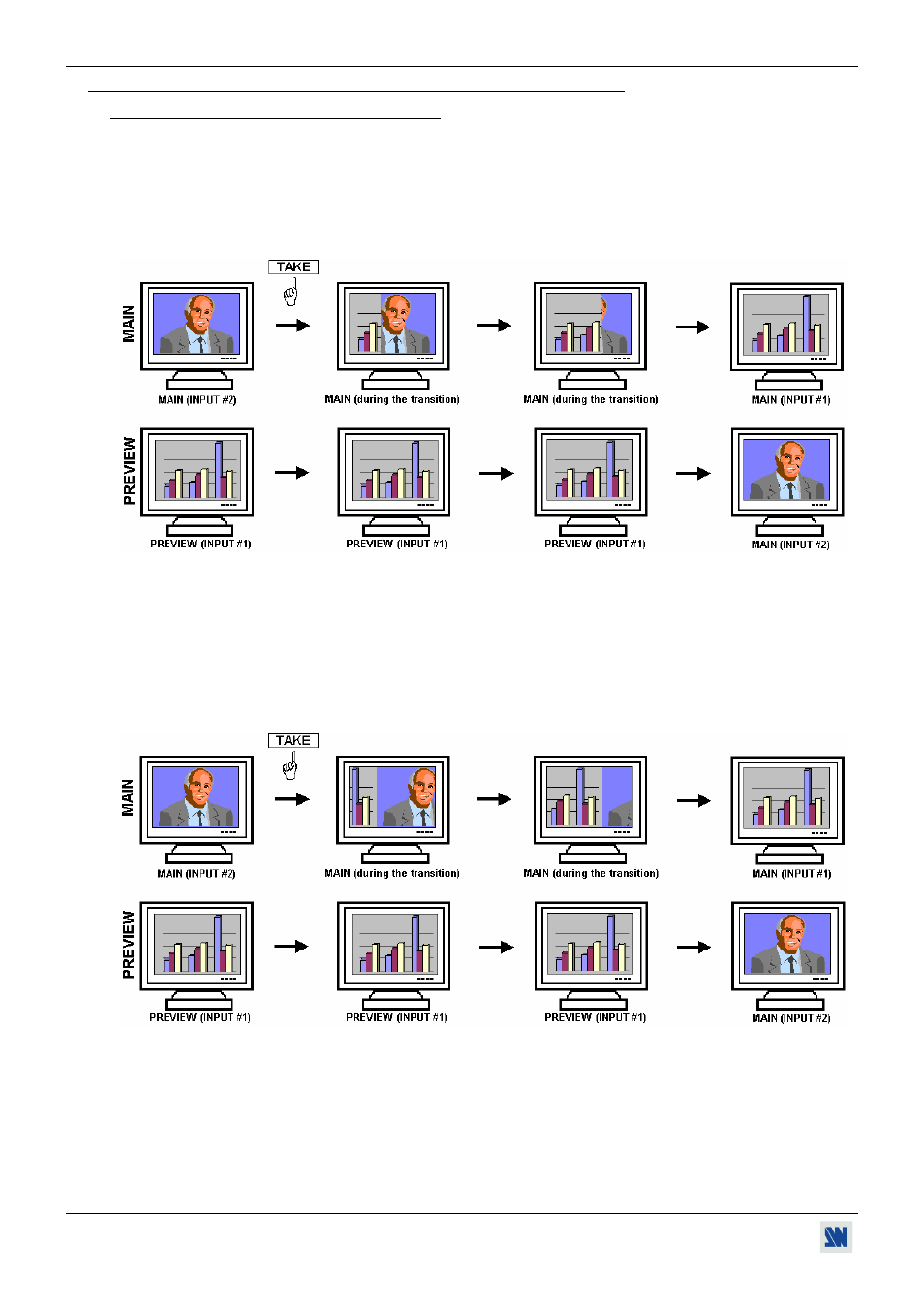

Figure 23: Wipe transition.
Slide transition:
• Click on the Effects tab.
• Assign a SLIDE to one of the EFFECT buttons: Click on the arrow of an EFFECT button and select a SLIDE
(for example: slide from left). Select an effect opening and closing then select the duration in the Effects windows.
• Press the TAKE button to activate the transition: the PREVIEW image appears onto the MAIN display with a
wipe transition.
Figure 24: Slide transition.
