Chapter 1 : INTRODUCTION (continued) Di-VentiX™
PAGE 10

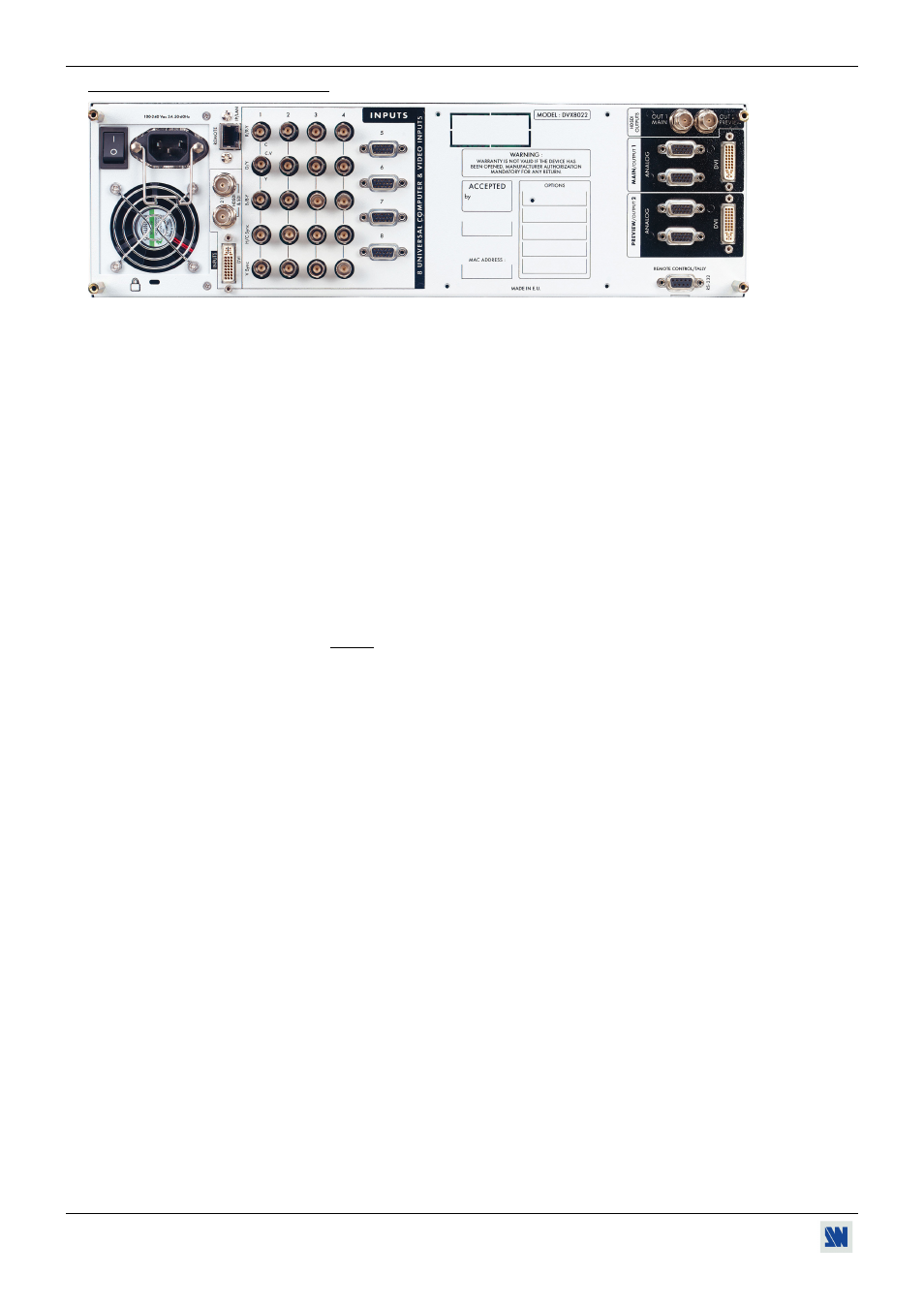

1-7. REAR PANEL DESCRIPTION
Figure 3
100-240 Vac 3A 50-60Hz: IEC standard power connector.
O / I : Power switch (O = OFF, I = ON)
INPUTS
1 to 8: 8 Universal analog Computer & Video Inputs. Each of the 8 inputs can accept both
COMPUTER sources (RGBHV, RGBS, and RGsB (SOG) signals), standard
TV/VIDEO sources (Composite video, S.VIDEO, Component (YUV), RGBS &
RGsB (SOG)), and HDTV sources.
The inputs 1 to 4 are provided with 5 BNC female connectors, and the inputs 5 to 8
are provided with a HD15 female connector.
DVI INPUT: DVI (digital visual interface) input on a DVI connector.
SDI / HDSDI: 2x SD/HD-SDI inputs on a BNC connector.
NOTE: The 2 SD/HD-SDI and the DVI inputs can be assigned to any of the 8
inputs.
REMOTE IP/LAN: LAN communication port on a RJ45 connector.
HDSDI OUTPUTS: MAIN & PREVIEW HD-SDI outputs on BNC connectors.
NOTE: The HD-SDI outputs can not be used simultaneously with the ANALOG
and DVI outputs.
MAIN / OUTPUT 1
ANALOG: 2 MAIN analog outputs for the MAIN display devices on HD15 female connectors.
DVI: Digital (DVI) MAIN output on DVI-I female connector.
PREVIEW / OUTPUT 2
ANALOG: 2 PREVIEW analog outputs for the PREVIEW display devices on HD15 female
connectors.
DVI: Digital (DVI) PREVIEW output on DVI-I female connector.
REMOTE CONTROL RS-232: RS-232 communication port & 3 tally outputs on DB9 female connector.
AUDIO (OPT-iX-A option)
IN 1 to IN 8: Optional audio inputs.
AUX: Auxiliary input for mixing with the diffused source
MAIN / OUT 1: MAIN audio output.
PRELIST / OUT 2: PRELIST audio output.
