7
� Oven support surface must be solid, level and flush with
bottom of cabinet cutout.
� Floor must be able to support a single oven weight of 200 lbs
(91 kg) for 30" (76.2 cm) models.
� Floor must be able to support a double oven weight of 330 lbs
(150 kg) for 30" (76.2 cm) models.
IMPORTANT: To avoid damage to your cabinets, check with
your builder or cabinet supplier to make sure that the materials
used will not discolor, delaminate or sustain other damage.
This oven has been designed in accordance with the
requirements of UL and CSA International and complies with
the maximum allowable wood cabinet temperatures of 194°F
(90°C).
Undercounter Installation (With Cooktop Installed
Above):
Ovens approved for this type of installation have an approval label
located on the top of the oven. Refer to Cutout Dimensions for
Ovens Installed Under Cooktop.

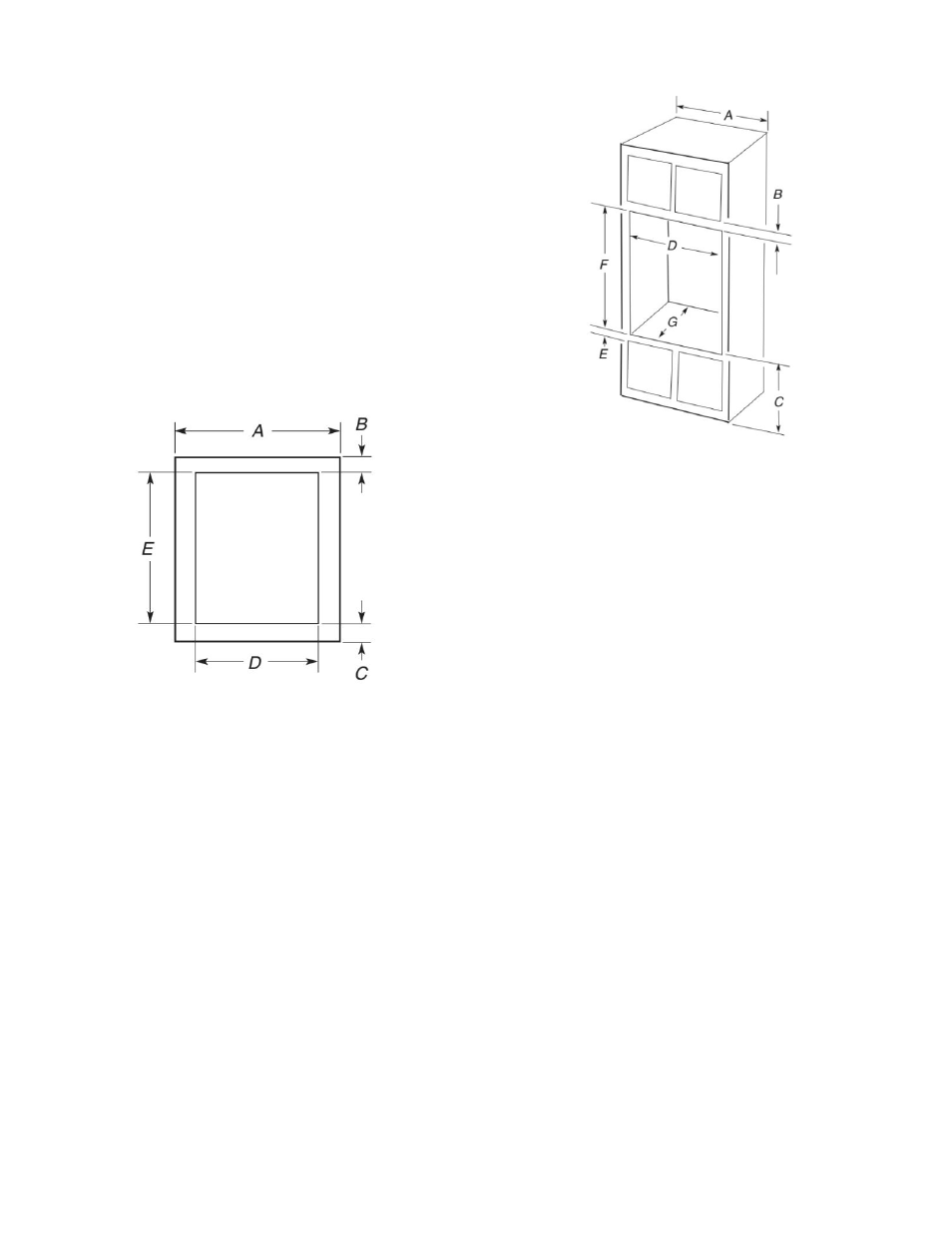

Cabinet Dimensions - Single Ovens, Standard Installation
Single Oven Undercounter (Without Cooktop Installed Above)
27" (68.6 cm) models
A. 27" (68.6 cm) minimum
cabinet width
B. 1 1 /
2
" (3.8 cm) minimum top of
cutout to underside of
countertop
C. 5 1 /
4
" (13.3 cm) bottom of
cutout to floor
D. 25 1 /
2
" (64.8 cm) minimum
cutout width
E. 28" (71.2 cm) minimum cutout
height
30" (76.2 cm) models
A. 30" (76.2 cm) minimum
cabinet width
B. 1 1 /
2
" (3.8 cm) minimum top of
cutout to underside of
countertop
C. 5 1 /
4
" (13.3 cm) bottom of
cutout to floor
D. 28 1 /
2
" (72.4 cm) minimum
cutout width
E. 28" (71.2 cm) minimum cutout
height
Single Ovens Installed in Cabinet
27" (68.6 cm) models
A. 27" (68.6 cm) minimum
cabinet width
B. 1 1 /
4
" (3.2 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 25 1 /
2
" (64.8 cm) minimum
cutout width
E. 1 1 /
2
" (3.8 cm) minimum
bottom of cutout to top of
cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
30" (76.2 cm) models
A. 30" (76.2 cm) minimum
cabinet width
B. 1 1 /
4
" (3.2 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 28 1 /
2
" (72.4 cm) minimum
cutout width
E. 1 1 /
2
" (3.8 cm) minimum
bottom of cutout to top of
cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
*NOTE The cutout height can be between 26 15 /
16
" and 29 7 /
16
"
(68.4 cm and 74.8 cm) for single ovens.
*NOTE Tall shield for installations greater than 28 11 /
16
" (72.9 cm).
