Cutout Height is between 28 11 /
16
" and 29 7 /
16
" (72.8 cm and
74.8 cm)
NOTE: A tall bottom vent shield can be ordered to replace the
shield that came with the unit as an optional bottom aesthetic. The
oven will function properly with either shield. Please refer to your
Quick Start Guide for the service number to call and request at no
charge.

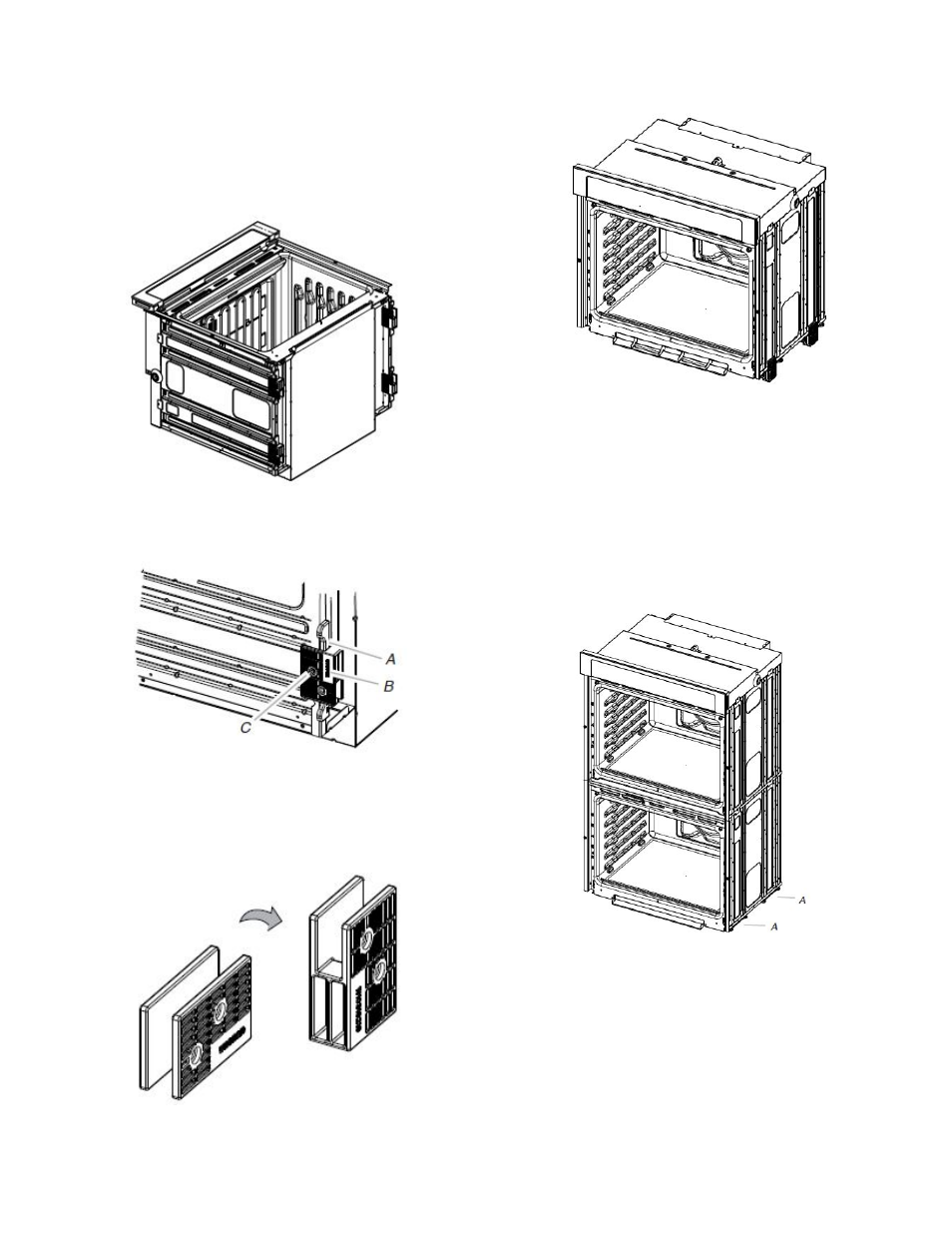

1. Using 2 or more people, place the oven on its back on a
covered surface.
2. Remove the foot from the right front spacer by removing the
#8-18 x3/8" (9.5 mm) screw.
NOTE: Do not remove the spacer.
A. Spacer
B. Foot
C. #8-18 x 3/8" (9.5 mm) screw
3. Rotate the foot 90° so the short side of the foot is positioned
toward the top of the oven.
4. Reinstall the foot to the spacer using the #8-18 x 3/8"
(9.5 mm) screw previously removed.
5. In the same manner, remove, rotate and reinstall the feet on
the right rear, left front, and left rear of the oven.
6. Using 2 or more people, place the oven in its upright position.
7. Go to the “Make Electrical Connection” section.
Double Ovens
The positioning of the oven feet allow a double oven to be
installed in a cutout height between 48
7 /
8
" and 52 3 /
16
" (124.1 cm
and 132.6 cm). Refer to the following instructions to position the
feet for the size of your cabinet cutout.
Cutout Height is Between 48 7 /
8
" and 50 7 /
16
" (124.1 cm and
128.1 cm)
The oven feet do not need to be installed. The oven is configured
correctly as received.
NOTE: Do not remove the spacers.
Go to the “Make Electrical Connection” section.
A. Spacers
