W11382210 B
Built-In Electric Oven and Microwave Oven Combination Quick Start Guide
OPERATING INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS, located in your appliance's Owner's Manual, before operating this appliance.
Using Your Oven
Step 1. Select oven function
Step 2. Set the temperature
Step 3. Press Start
Step 4. Place food inside the oven once set
temperature is reached. Close the
oven door.
Step 5. (Optional) Enter time to cook
Step 6. The Cancel button can be use to
cancel the function during or after
cook time.
NOTE: For more detailed instructions on specific
functions, see the online Control Guide.
Using your Microwave Oven
Step 1. Place food inside the microwave
oven. Close the oven door.
Step 2. Select microwave function
Step 3. Enter time to cook
Step 4. Press Start
Step 5. The Cancel button can be use to
cancel the function during or after
cook time.
NOTE: For more detailed instructions on specific
functions, see the online Control Guide.
ALUMINUM FOIL (For Ovens Only)
IMPORTANT: To avoid permanent damage to the oven bottom finish, do not line the oven bottom with any type
of foil or liner.
■ For best cooking results, do not cover entire rack with foil because air must be able to move freely.
■ To catch spills, place foil on rack below dish. Make sure foil is at least 1/2 " (1.3 cm) larger than the dish
and that it is turned up at the edges.
ALUMINIUM FOIL AND METAL (For Microwave Ovens Only)
Always use oven mitts or pot holders when removing dishes from the microwave oven.
Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of
light) can occur and cause damage to the microwave oven.
OK for Use
Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and
approved meat thermometers may be used with the following guidelines:
■ To avoid damage to the microwave oven, do not allow aluminum foil or metal to touch the inside cavity walls,
ceiling or floor.
■ Always use the turntable.
■ To avoid damage to the microwave oven, do not allow contact with another metal object during microwave
cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-approved meat thermometers, skewers, twist ties, foil
liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze should not be
used in the microwave oven.

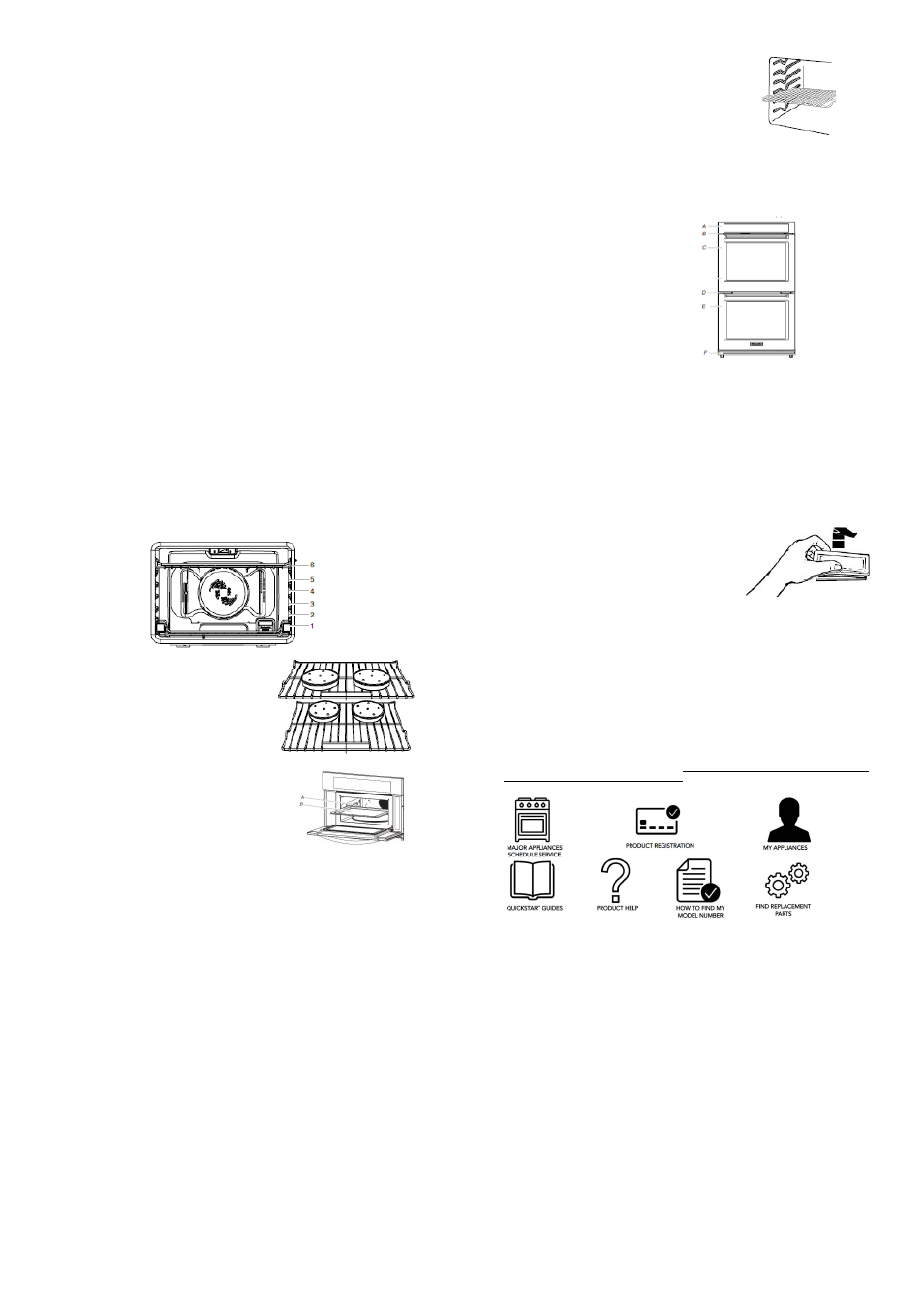

RACK AND BAKEWARE POSITIONS (For Ovens Only)
Rack Positions - Upper And Lower Oven
Baking Cakes on 2 Racks
For best results when baking cakes on 2 racks, use the
Bake function and flat racks in positions 2 and 5. Place the
cakes on the racks as shown. Keep at least 2 inches of
space between the front of the racks and the front of the
cakes.
Baking Cookies on 2 Racks
For best results when baking cookies on 2 racks, use the
Convect Bake function and place flat racks in positions 2
and 5.
POSITIONING BAKING TRAY (For Microwave Only)
Baking tray can only be used with convection cooking and
broiling. To avoid damage to the microwave oven, do not use
baking tray in combination with microwave cooking.
Place baking tray on slide rails as shown below. Push in tray to
stop position. Check that the baking tray is level.
For best cooking results, use baking tray only in the
recommended position.
A. Slide rail
B. Baking tray
Oven Racks
IMPORTANT: To avoid permanent damage to the porcelain
finish, do not place food or bakeware directly on the oven door
or bottom.
Racks
■ Position racks before turning on the oven.
■ Do not position racks with bakeware on them.
■ Make sure racks are level.
To move a rack, pull it out to the stop position, raise the front
edge, then lift it out. Use the following illustration and charts as
guides.
NOTE: The SatinGlide ™ Roll-Out Extension Rack for Smart Oven+ Attachments is inserted and removed the
same way as a standard rack, however, more force is needed.
OVEN VENT(S)
The oven vent(s) should not be
blocked or covered since they allow
the inlet of fresh air into the cooling
system. Also, the bottom vent
should not be blocked or covered
since it allows the inlet of fresh air
into the cooling system and the
outlet of hot air from the cooling
system. Blocking or covering vents
will cause poor air circulation,
affecting cooking, cleaning, and
cooling results.
Combination Microwave Oven
A. Control panel
B. Microwave oven vent
C. Microwave oven D. Oven vent
E. Lower oven
F.
Bottom vent
OVEN LIGHTS
The oven lights are 120 V, 40 W maximum halogen bulbs. They will come on when the oven door is opened. On
double oven models, both upper and lower lights will come on when either door is opened. The oven lights will
not work during the Self-Cleaning cycle.
When the door is closed, touch the appropriate Oven Light keypad to turn on the oven light.
To Replace:
Before replacing the bulb, make sure the oven is off and cool.
1. Disconnect power.
2. Remove glass light cover by grasping the front edge and pulling
away from oven.
3. Remove bulb from socket.
4. Replace bulb, using tissue or wearing cotton gloves to handle
bulb. To avoid damage to or decreasing the life of the new bulb,
do not touch bulb with bare fingers.
5. Replace bulb cover by snapping back into wall.
6. Reconnect power.
IMPORTANT: Do not use lamps rated higher than 40 W.
REMOTE ENABLE
Press REMOTE ENABLE to enable the ability to use the KitchenAid ® app. If Wi-Fi is not already enabled, the
oven will attempt to connect to a local network.
WI-FI CONNECT
Download the KitchenAid ® app, signup and select “Add Appliance” in the app. Follow the instructions in the app
to scan the QR code from the appliance screen. You may also visit www.kitchenaid.com/connect.
NOTE: For further information on connecting your appliance to your home Wi-Fi network, read the online Control
Guide.
Online Ordering Information
For detailed installation instruction and maintenance information, winter storage, and transportation tips, please
see the Owner’s Manual included with your machine.
For information on any of the following items, the full cycle guide, warranty, detailed product dimensions, or for
complete instructions for use and installation, please visit https://www.kitchenaid.com/service-and-support, or
in Canada https://www.kitchenaid.ca/service-and-support. This may save you the cost of a service call.
However, if you need to contact us, use the information listed below for the appropriate region.
Canada:
1–800–807–6777
KitchenAid Brand Home Appliances
Customer eXperience Centre
200–6750 Century Ave.
Mississauga, Ontario L5N 0B7
United States:
1–800–253–1301
KtichenAid Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022–2692
IMPORTANT: Retain this guide for future use.
