10

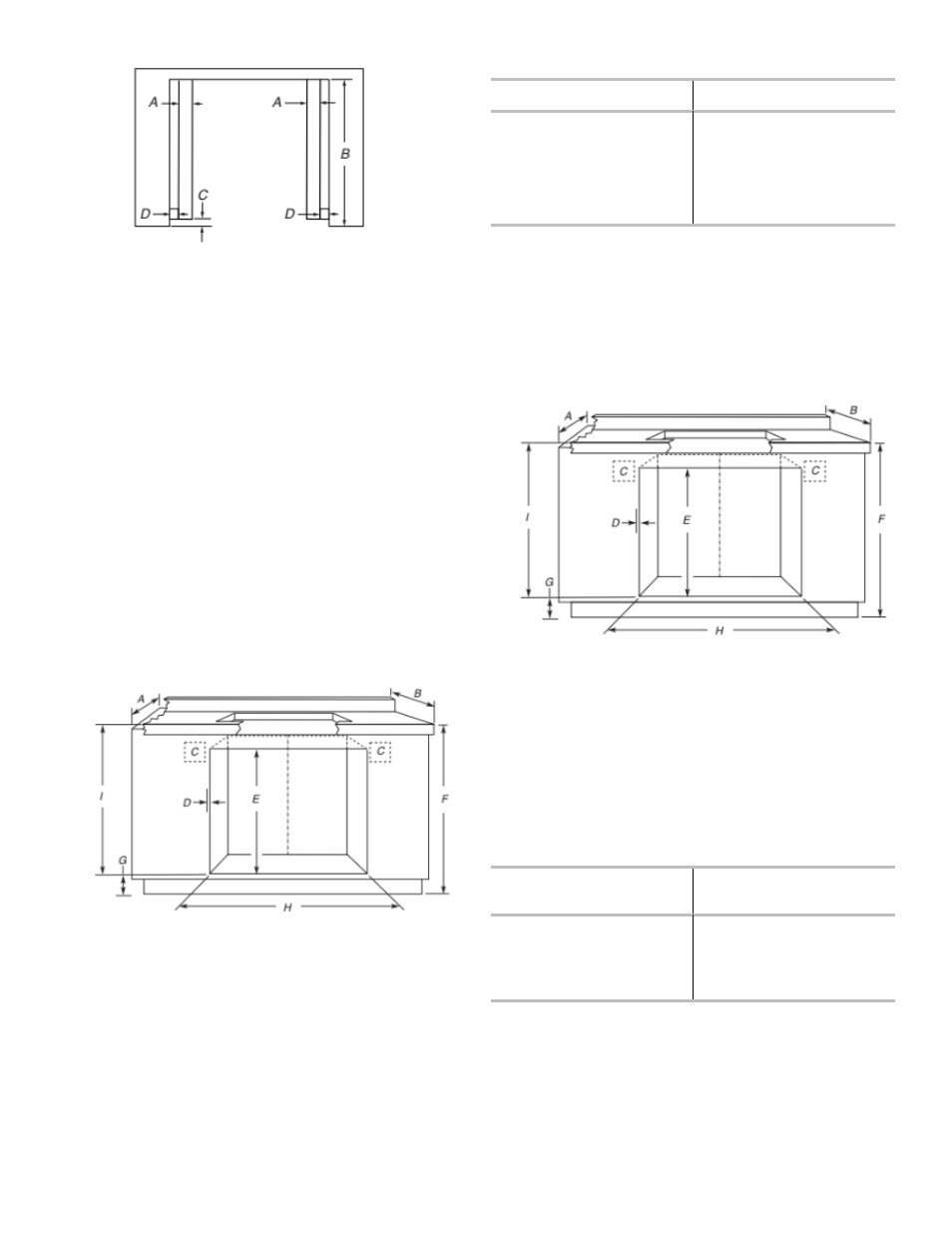

Top View
27" (68.6 cm) Models
A. 1/4" x 2" (0.64 cm x 5.1 cm)
spacer the entire depth of the
cutout*
B. 25 3 /
8
" (64.4 cm) depth of cutout
C. 1 3 /
8
" (3.5 cm) recess from front
of cabinet
D. 11/16" (1.7 cm) side cleat*
30" (76.2 cm) Models
A. 1/4" x 2" (0.64 cm x 5.1 cm)
spacer the entire depth of the
cutout*
B. 25 3 /
8
" (64.4 cm) depth of cutout
C. 1 3 /
8
" (3.5 cm) recess from front
of cabinet
D. 11/16" (1.7 cm) side cleat*
* Cleats and spacers must be recessed 1 3 /
8
" (3.5 cm) from the
front of the cabinet.
Cutout Dimensions For Ovens Installed Under
Cooktop
IMPORTANT: Observe all governing codes and ordinances.
Cooktop must be approved for use over an oven. See cooktop
Installation Instructions for cutout dimensions. Center the cooktop
cutout over oven cutout.
To avoid damage to your cabinets, check with your builder or
cabinet supplier to make sure that the materials used will not
discolor, delaminate or sustain other damage. This oven has been
designed in accordance with UL and CSA International and
complies with the maximum allowable wood cabinet temperatures
of 194°F (90°C).
Approved Built-In Oven and Electric Radiant/Coil Cooktop
Combinations
A. 24" (61 cm) cabinet depth
B. 25" (63.5 cm) countertop
depth
C. Recommended oven and
cooktop junction box
locations
D. Allow 5/8" (1.6 cm) for oven
trim to overlap on each side
E. 27 3 /
4
" (70.5 cm) minimum
cutout height
F. 36" (91.4 cm) from cabinet
base to countertop
G. 4 5 /
8
" (11.7 cm) maximum from
cabinet base
H. See Cutout Dimensions chart
I.
31 3 /
8
" (79.7 cm) from top of
countertop to bottom of cutout
CUTOUT DIMENSIONS (H)
Oven Size Oven Cutout Dimension
24" (61 cm) 22 1 /
2
" (57.2 cm)
27" (68.6 cm) 25 1 /
2
" (64.8 cm)
30" (76.2 cm) 28 1 /
2
" (72.4 cm)
36" (91.4 cm) 34 1 /
2
" (87.6 cm)
For the approved model number combinations, refer to the
undercounter label located on top of the oven chassis and on
the bottom of the cooktop burner box.
NOTE:
For undercounter installation, it is recommended that the
junction boxes for oven and cooktop be located in the adjacent
right or left cabinet. A 1" (2.5 cm) minimum diameter hole should
have been drilled in the upper rear right or left corner of the side
wall surface to pass the appliance cable through to the junction
box.
Approved Built-In Oven and Induction Cooktop Combinations
A. 24" (61 cm) cabinet depth
B. 25" (63.5 cm) countertop
depth
C. Recommended oven and
cooktop junction box
locations
D. Allow 5/8" (1.6 cm) for oven
trim to overlap on each side.
E. 27 3 /
4
" (70.5 cm) minimum
cutout height
F. 36" (91.4 cm) from cabinet
base to countertop
G. 4 5 /
8
" (11.7 cm) maximum from
cabinet base. If dimension “F”
is greater than 36" (91.4 cm),
dimension “G” can be
increased the same
difference for induction
combinations
H. See Cutout Dimensions chart
I.
31 3 /
8
" (82.2 cm) from top of
countertop to bottom of cutout
CUTOUT DIMENSIONS (H)
Oven Size
Minimum Oven Cutout
Dimension
24" (61 cm) 22 1 /
2
" (57.2 cm)
27" (68.6 cm) 25 1 /
2
" (64.8 cm)
30" (76.2 cm) 28 1 /
2
" (72.4 cm)
For the approved model number combinations, refer to the
undercounter label located on top of the oven chassis and on
the bottom of the cooktop burner box.
NOTE:
For undercounter installation, it is recommended that the
junction boxes for oven and cooktop be located in the adjacent
right or left cabinet. A 1" (2.5 cm) minimum diameter hole should
have been drilled in the upper rear right or left corner of the side
wall surface to pass the appliance cable through to the junction
box.
