23
ENGLISH

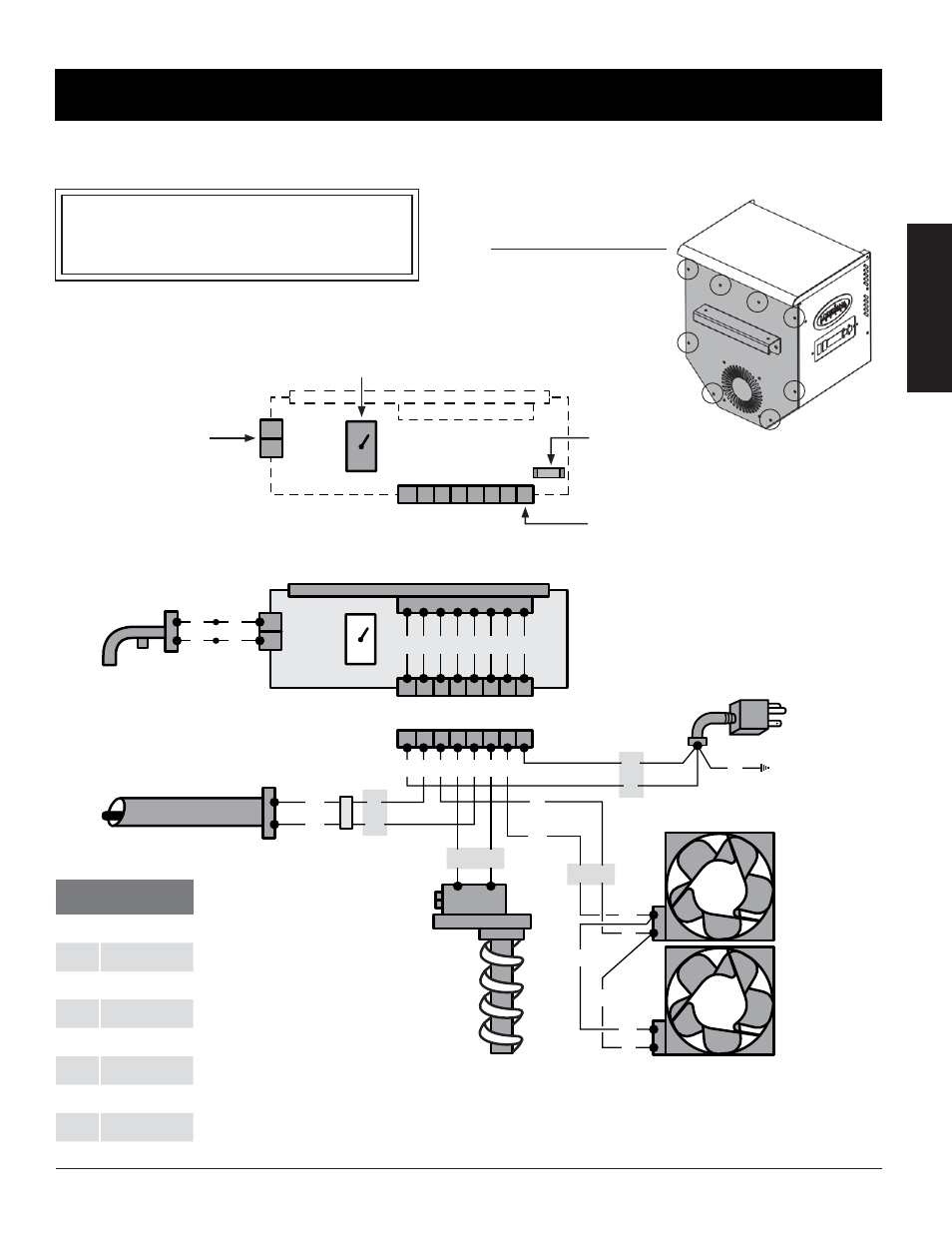

ELECTRICAL WIRE DIAGRAM
The Digital Control Center system is an intricate and valuable piece of technology. For protection from power surges and electrical
shorts, consult the wire diagram below to ensure your power source is sufficient for the operation of the unit.
LG – ELECTRIC REQUIREMENTS
110-120V, 60HZ, 375W, 3-PRONG GROUNDED
PLUG
NOTE: Electrical components, passed by product safety testing and certification
services, comply with a testing tolerance of ± 5-10 percent.
HOPPER ACCESS PANEL
LOCATE AND REMOVE
THE EIGHT SCREWS ON
SIDE OF HOPPER TO
ACCESS ELECTRICAL
COMPONENTS
°F
°C
G W
W
W W
W
W
W W Y
W Y
R
R
K
W W W W Y B R K
W
K
N
N
S
S
B
B
W
B
W
B
W
B
B
IGNITER ASSEMBLY /
HD CARTRIDGE HEATER
300W, 120V,
9.5MM x 127MM (0.375” x 5.000”)
COMBUSTION & COOLING FANS
115V, 50/60HZ, CFM110, 1 PHASE
GROUNDED
POWER CORD
VW-1, 105°C/221°F,
18-3 STANDARD
CSA
AUGER FEED SYSTEM
115V, 50/60HZ,
30W, 2 RPM MOTOR
CONNECTOR BOX (8 PIN)
GROUND
DIGITAL CONTROL CENTER
GRILL PROBE
TEMPERATURE
SETTING SWITCH
GRILL PROBE SPADE
CONNECTORS
FAST-BLOW FUSE
WIRE HARNESS
CONNECTOR
BOX
°F
°C
INDEX
W WHITE
Y YELLOW
B BLUE
R RED
K BLACK
N BROWN
S SILVER
G GREEN
