34

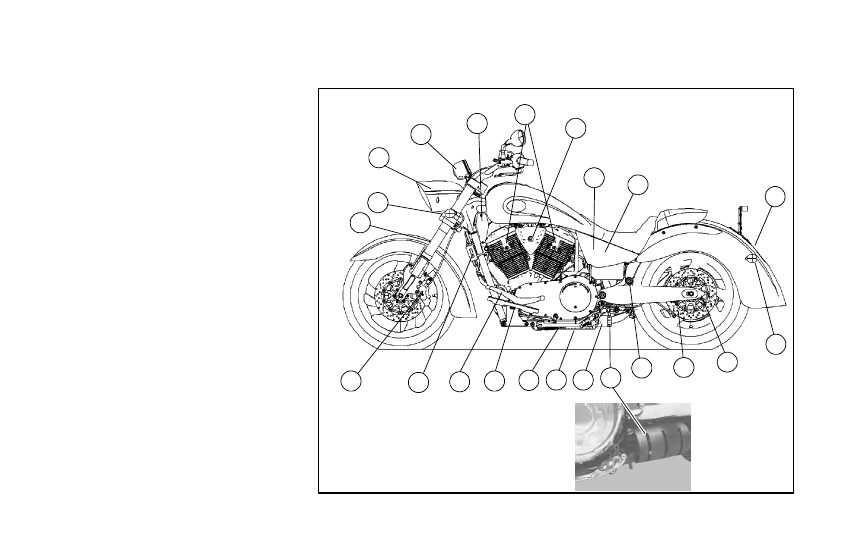

COMPONENT IDENTIFICATION
LEFT SIDE VIEW -- KINGPIN
1. Front Fork
2. Front Turn Signal
3. Headlamp
4. Speedometer
5. Air Filter
6. Spark Plug (2)
7. Ignition Switch
8. Left Side Cover
9. Battery (under side cover)
10. Taillight
11. Rear Turn Signal
12. Rear Axle Adjuster (1 each side)
13. Rear Brake Caliper
14. Passenger’s Foot Rest
15. Evaporative Canister - California Models
16. Oil Filter
17. Oil Drain Plug (on bottom of crankcase)
18. Sidestand
19. Operator’s Foot Rest
20. Gear Shift Lever
21. Oil Cooler
22. Front Brake Caliper
3
2
1
4
5
6
7
8
9
11
12
13 14
16 17 18 19 20 21 22
10
15
