STEP 1
Preparation of the wall
The wall case should be installed during construction
and lintels should be used to support the block above
the wall case. The case will not support the concrete
block or brick. The case is modular in height and
width:
+HLJKW ³)LWVFRXUVHVFRQFUHWHEORFN
³)LWVFRXUVHVVWDQGDUGEULFN
³)LWVFRXUVHVMXPEREULFN
:LGWK ³)LWVDSSUR[LPDWHO\VWXGVSDFHV

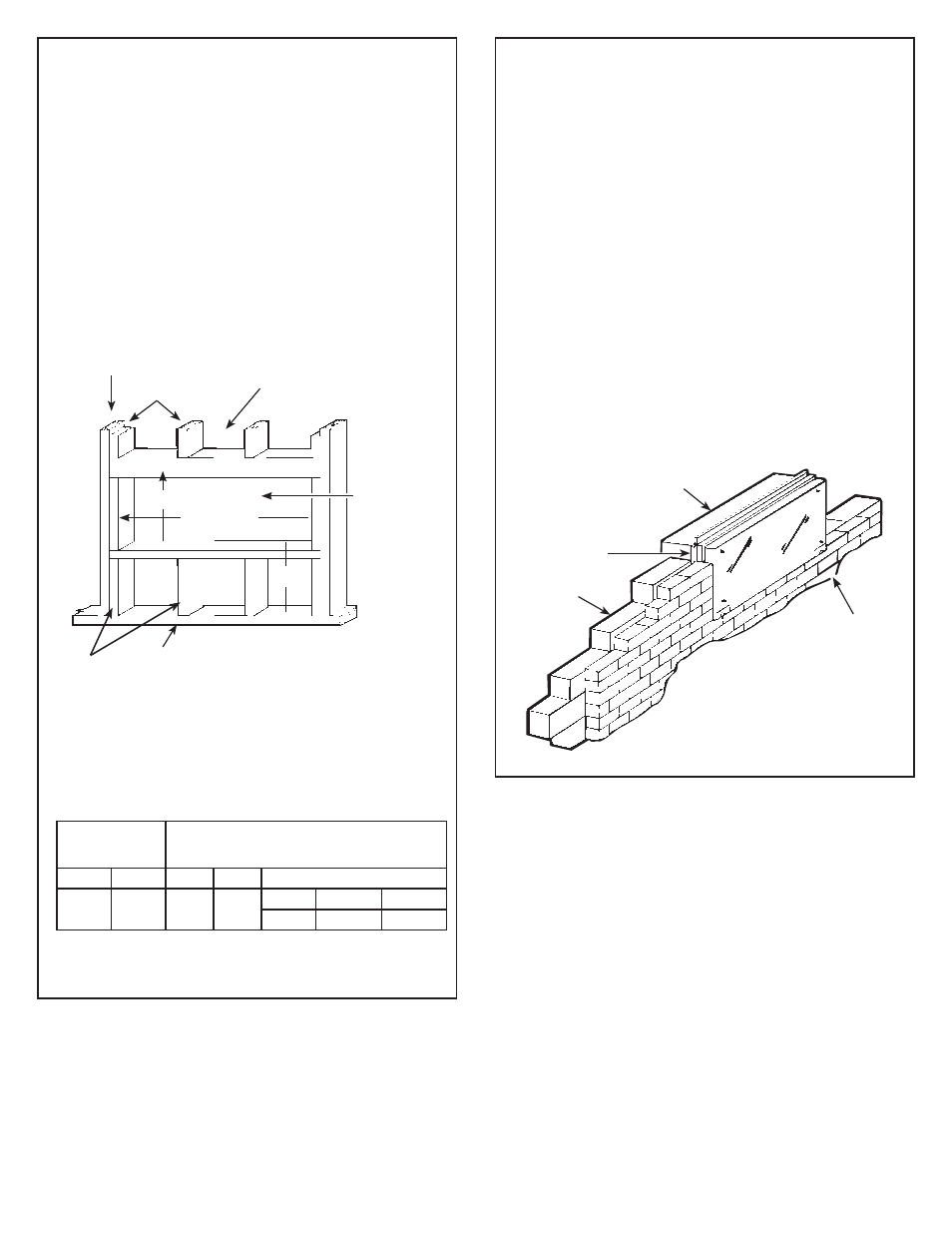

For existing construction, wall openings must be
made. Wall openings of the proper dimensions are
essential to avoid the necessity of fillers or additional
framing.
NOTE:
Use lintel to support brick, block, etc., above the air
conditioner case. (If directly under a window sill,
the use of a lintel may not be necessary.)
STEP 2
Preparation of the case
Do not remove the cardboard stiffener inside the case
until the chassis is installed.
If field-supplied case angles are to be used and must
be installed, proceed as follows:
1. Position the case angles around top and sides
of the case at the desired location (front to rear)
with angles facing toward rear (outside). Position
the case angles vertically on each side of the case
to provide a level installation.
2. Mark the case through the holes in the case angles.
3. 'ULOO s diameter holes at marked locations
on the case and assemble the angles using only
#10 u 1/2 s screws. Install the screws from the
outside of the case.
NOTE:
Do not drill any holes in bottom of the case.
2
Roomside
Case
Case angle
(field-supplied)
Block
Brick
42 1 / 2
≤
16 1 / 4
≤
Main stud
Jack studs
+HDGHU³ s × 4 s or
two 2 s × 4 s on edge
16 1 ø 4 s Min.
42 1 ø 4 s Min.
“D”*
Jack studs
Cripple
Adjust
framing to
secure these
dimension
( *See chart
on page 1)
* Dimensions may need to be increased to fit unique situations in the field if using
case angles.
MINIMUM
FINISHED OPENING
DIMENSIONS*
CASE DIMENSIONS
Height Width Height Width Depth
16 1 /
4
” 42 1 /
4
” 16” 42”
RAB71B RAB7116B RAB7124B
/
4
” 16” 24”
